Home >> Volvo >> 2008 >> S80 AWD L6-3.0L Turbo VIN 99 B6304T2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Audio >> Changes Implemented Up to and Including September 2007

Changes Implemented Up to and Including September 2007



Audio

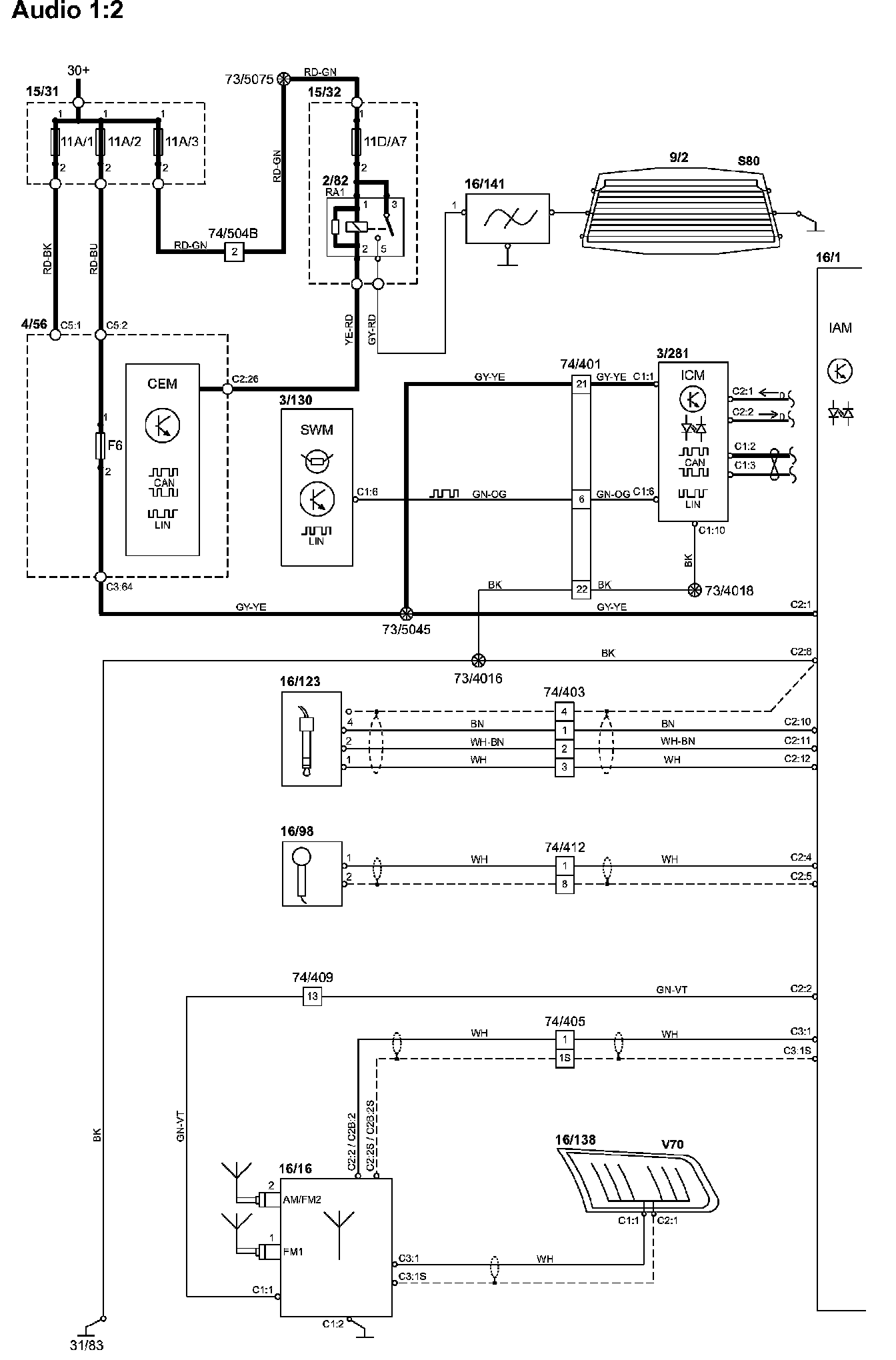

Audio 1:2:

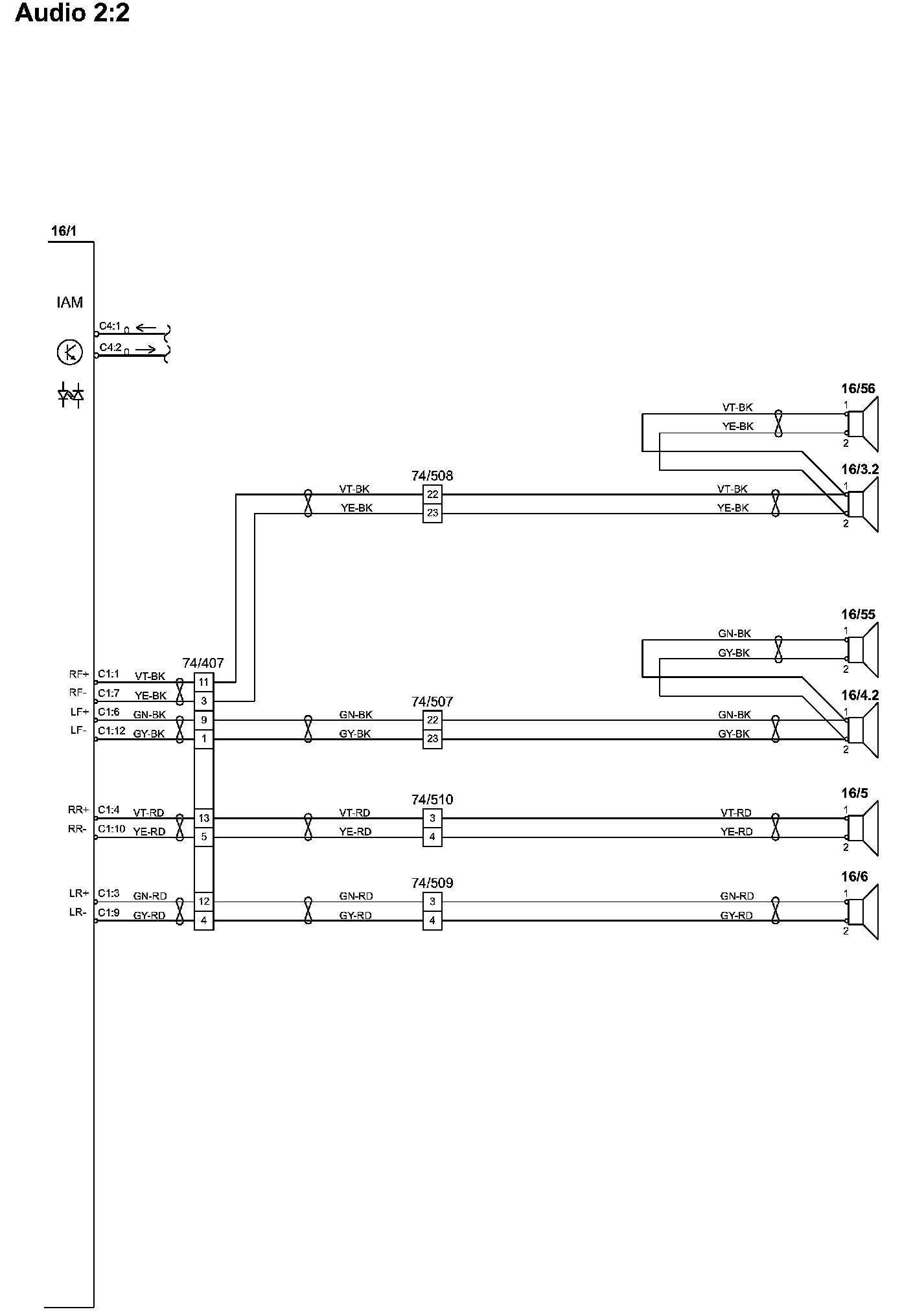

Audio 2:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
