Connector Sealed, Type 1

Connector sealed type 1

Special tools:
951 2631 Terminal removal tool 951 2631 Terminal Removal Tool

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Dismantling

Note! The connector has no secondary lock.

Disassembling primary lock

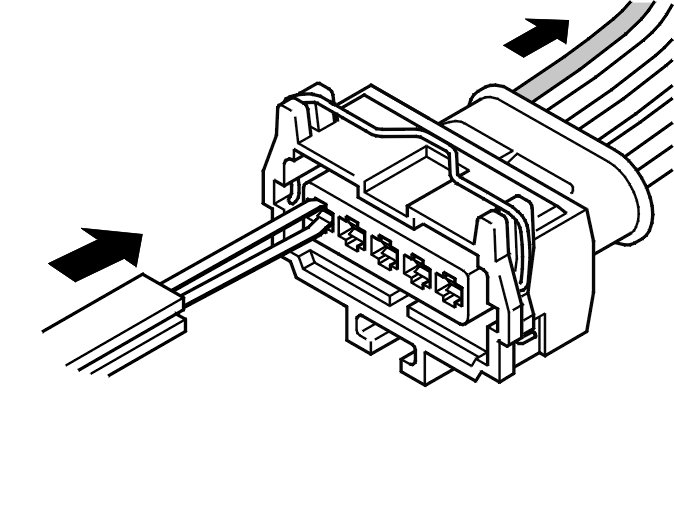

Use tool: 951 2631 Terminal removal tool 951 2631 Terminal Removal Tool to remove the primary lock. See the illustrations.
At the same time pull the cable carefully backwards.





Assembling

Assembling primary lock
Check that the cable terminal is undamaged.
Press the cable terminal into the housing.
Check that the seal is correctly positioned and the cable terminal has locked by carefully pulling the cable.
