Volvo
>>
2008
>>
S80 AWD L6-3.0L Turbo VIN 99 B6304T2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Changes Implemented Up to and Including April 2007
>>
74/519
74/519
74/519:

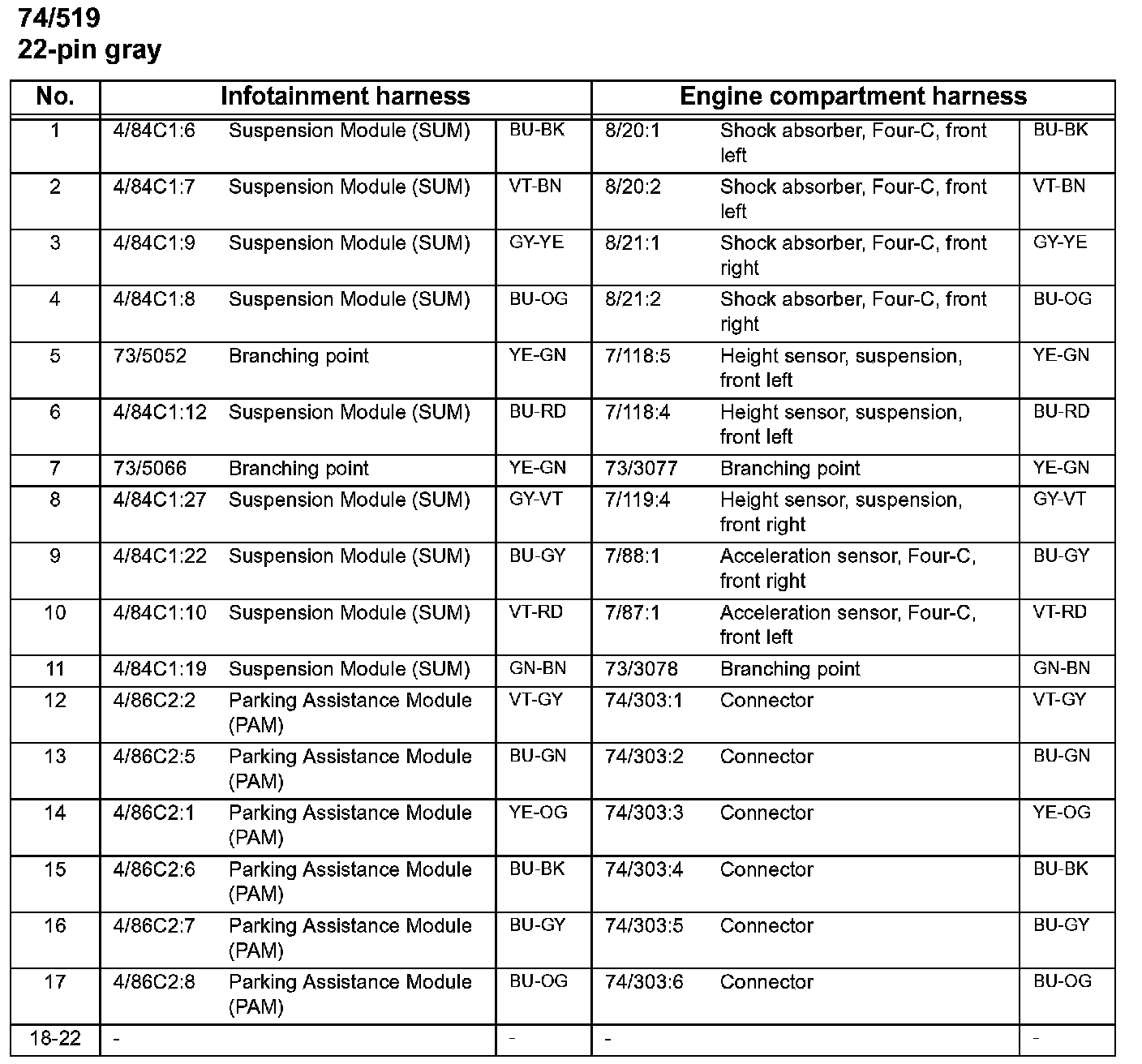

74/519 Connector:
