Instruments - FWD Looking Radar Incorrectly Mounted/DTC
TIE - Technical JournalTitle Forward Looking Radar (FLR) incorrectly mounted, DTC FSM-C1A6754
Ref No US14823.40 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 3661
Func Desc OVERSPEED PROT
Status Released
Status Date 2007-04-18
Issue Date 2007-04-18
Reference

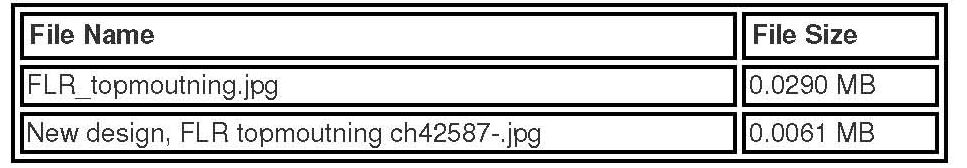

Attachment

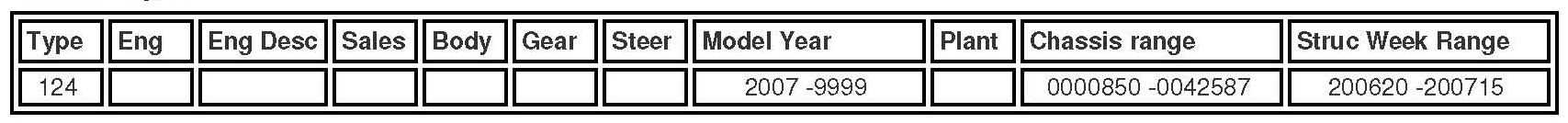

Vehicle Type

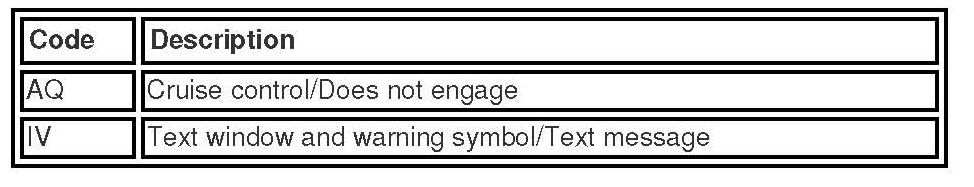

CSC

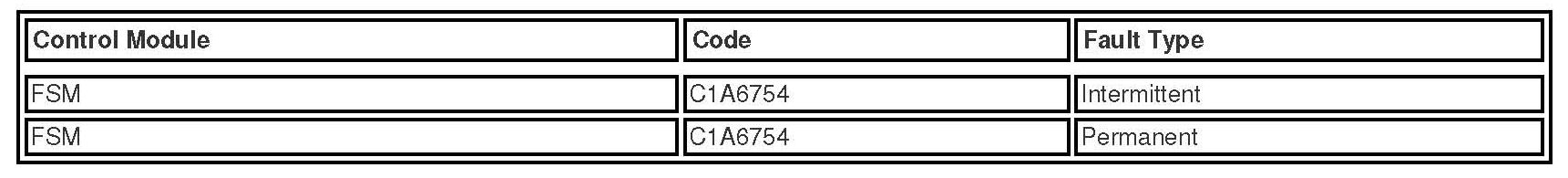

DTC
Text
DESCRIPTION:
The fault code FSM-C1A6754 may be stored after driving a while. This is due to incorrect assembly of the FLR top mounting bracket -- the sensor angle will be wrong.
* PRODUCT MODIFICATION:
* A new design in the front section part opposing the FLR sensor top mounting bracket has
* been implemented in production from chassis number 042587 to eliminate incorrect

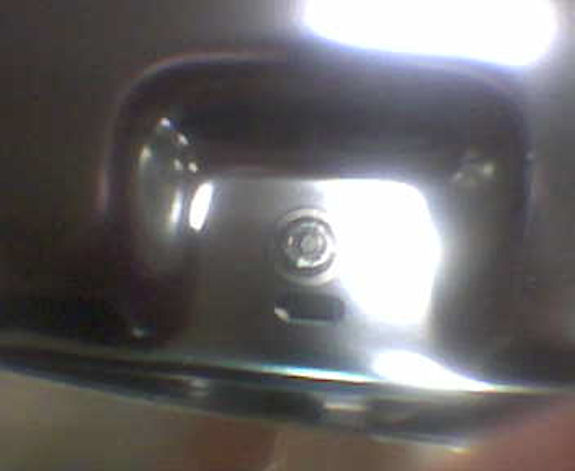

* assembly. See photo "New design FLR topmounting ch42587-.jpg".
MATERIAL RETURN:
No thanks.
TECHNICAL REPORT:
Yes please.
SERVICE:

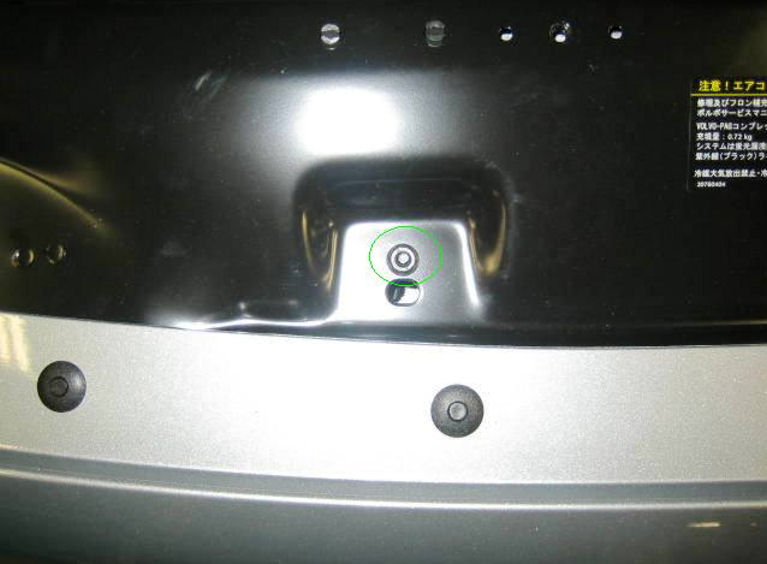

Ensure that the FLR sensor top mounting bracket is in the rear hole according to the attached photo "FLR_topmounting.jpg".
VSTG OPERATION NUMBER: N/A
