S80 07-08 Remove/Install, Version 1

Rear brake caliper, B6324S, TF-80SC, L.H.D.

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal






Remove the brake hose mounting from the brake calliper. Refer to: Rear Brake Flexible Hose Rear Brake Flexible Hose

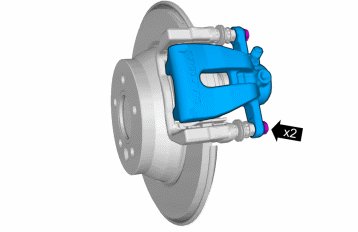

Torque: Slide rail rear brake caliper (front wheel drive, L.H.D.), 28 Nm
Torque: Slide rail rear brake caliper (all wheel drive, L.H.D), 35 Nm






Installation

To install, reverse the removal procedure.

Bleed the brakes. Refer to: Brake system bleeding Service and Repair.

Adjust the parking brake.
Mechanical parking brake. Refer to: Parking brake, adjusting Adjustments
