Seat Latch: Testing and Inspection

Collision protection unit from behind front seat check

Operation number: 85244-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

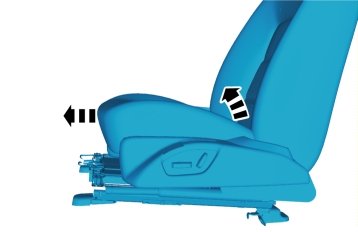

Only for vehicles with fixed backrest.

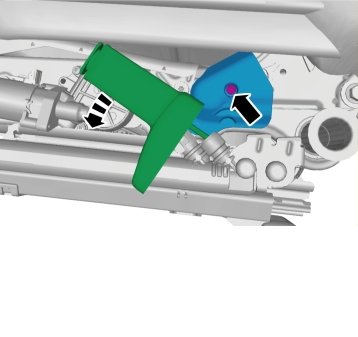

Remove the following items:
- side panel acc. to: Side panel front seat Side Panel Front Seat
- quick-coupling, belt. Quick-Release Connector Belt









Caution! The operation must be carried out on both sides of the seat.

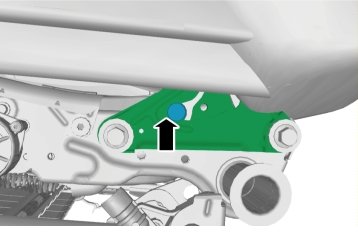

Caution! There must be no visible space between the rivet and the mount.

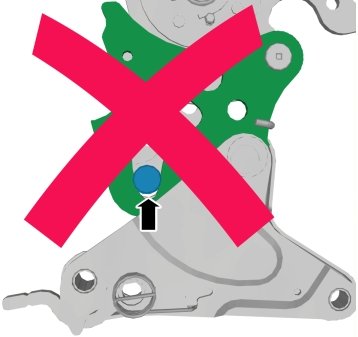

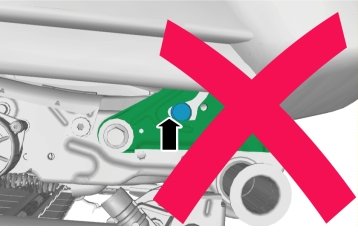

If there is visible space between the rivet and the mount, the rear impact protection unit of the front seat must be replaced acc. to Collision protection unit from behind front seat Collision Protection Unit From Behind Front Seat.

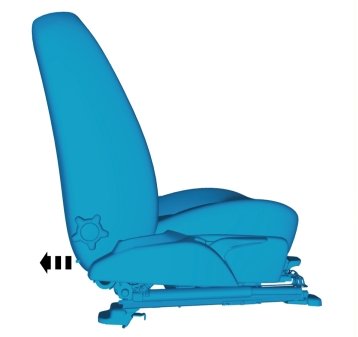

Only for vehicles with folding backrest.

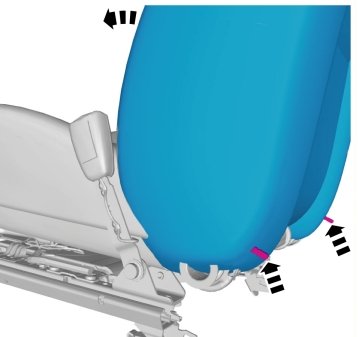

Adjust the backrest rake until the unit is visible.





Caution! The operation must be carried out on both sides of the seat.

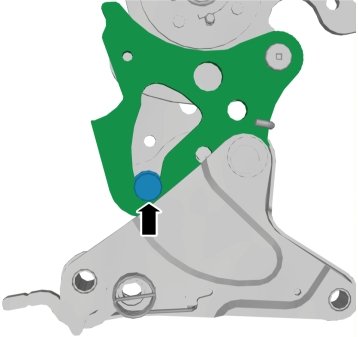

Caution! There must be no visible space between the rivet and the mount.





Caution! If there is visible space between the rivet and the mount, the rear impact protection unit of the front seat must be replaced according to: Collision protection unit from behind front seat. Collision Protection Unit From Behind Front Seat


Installation

To install, reverse the removal procedure
