Manual Transmission

Floor console






Removal

Note! Removal steps in this procedure may contain installation details.

Battery, disconnection Battery Disconnecting

Remove center console. Center Console

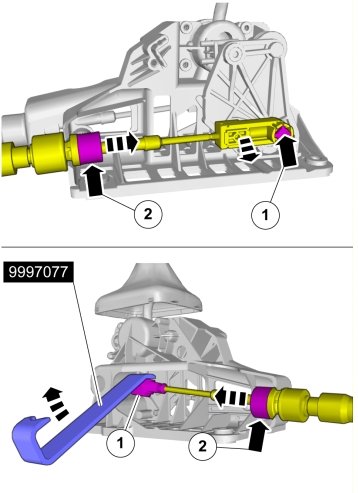

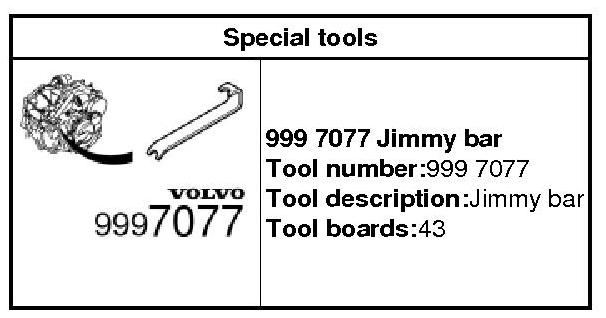

999 7077 Jimmy bar 999 7077 Jimmy Bar












Torque: M8, 24 Nm





Caution! Note the position of the components before removal.

Installation

To install, reverse the removal procedure.
