Manual Transmission

Center console

Operation number: 88232-2

Removal and Installation

























Caution! Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

Note! Make sure that the mating faces are clean and free of foreign material.

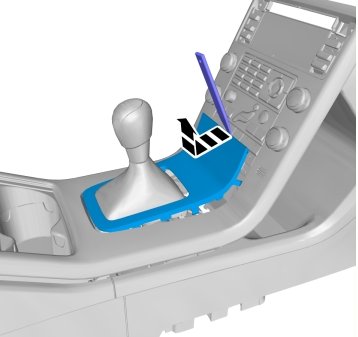

Remove the following items:
- Climate control module (CCM). Service and Repair
- Temperature sensor passenger compartment. Service and Repair
- Information and Entertainment Display. Information And Entertainment Display
