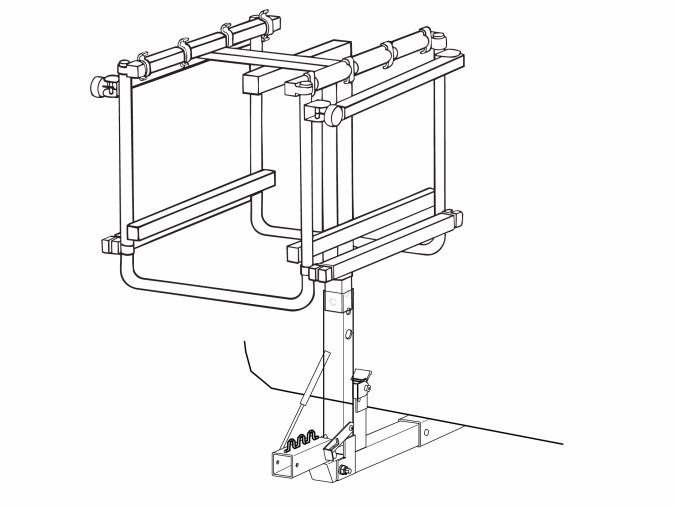

Towbar, Hitch, Ski Carrier

Towbar, hitch, ski carrier





















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section

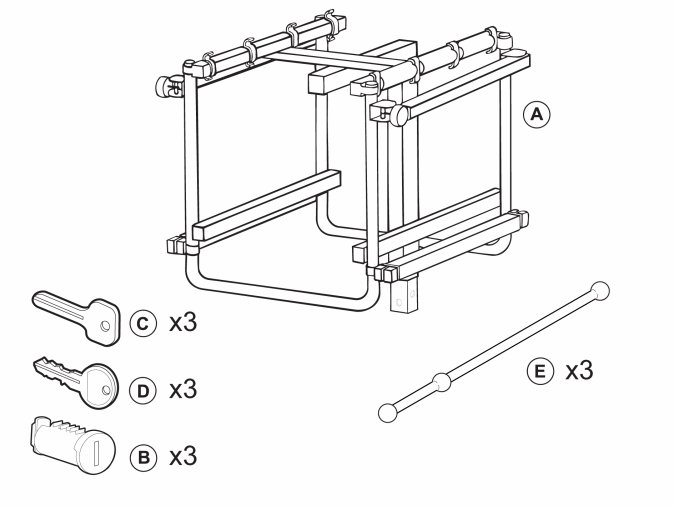

Towbar, hitch, ski carrier

Note! Some steps in these installation instructions are presented with illustration only.

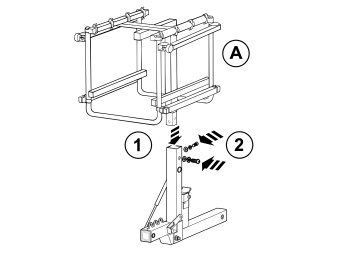

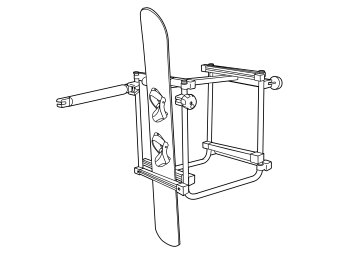

- Install the ski holder in the base unit's square pipe.
- Tighten in the ski holder using the two screws, the spring washers and the flat washers from the base unit kit.

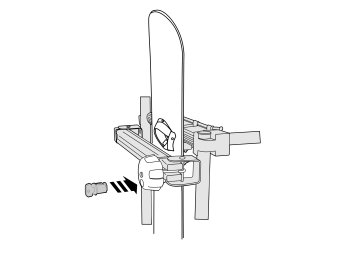

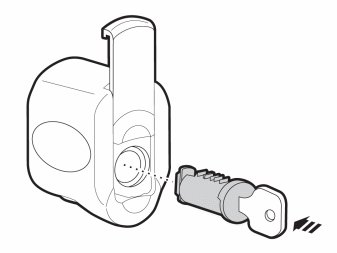

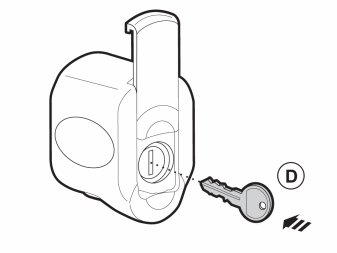

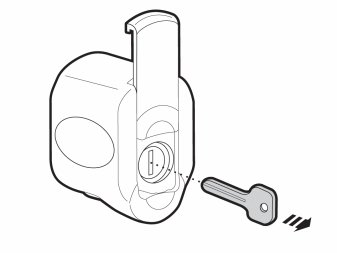

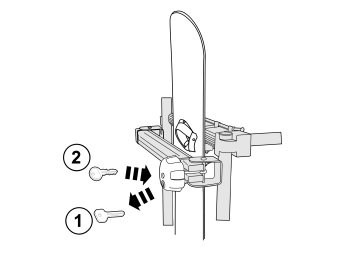

Illustrations A-D show installation of lock cylinders and locking the ski holder

Illustration A





Illustration B





Illustration C





Illustration D

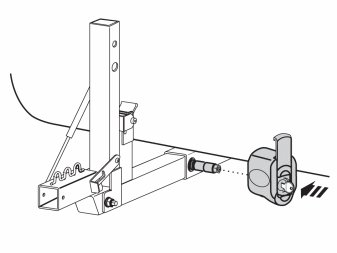

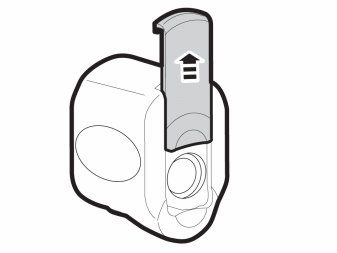

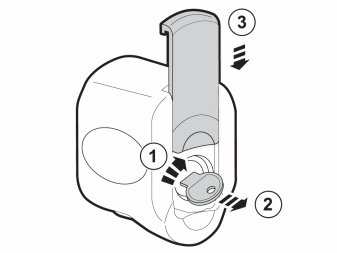

Illustrations A-H show locking the base unit with accessories for towbar hitch. Use the lock housing from the base unit kit as well as lock cylinder with keys from the accessory kit.

Illustration A





Illustration B





Illustration C





Illustration D





Illustration E





Illustration F





Illustration G





Illustration H

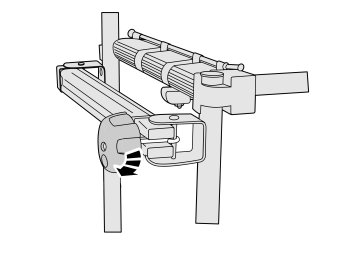

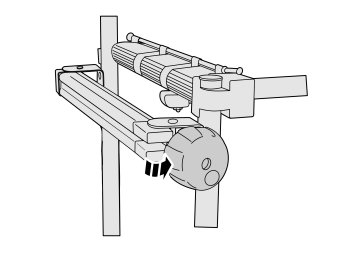

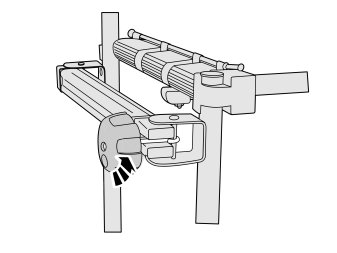

Undo the attaching brace

Illustration A

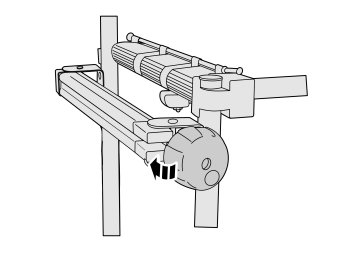

- Turn the locking wheel anticlockwise.

Illustration B




- Undo the ski holder's attaching brace by folding the locking wheel out from the brace.

Illustration C

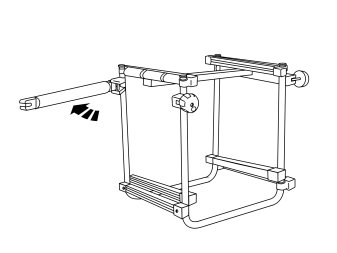

- Fold out the attaching brace.

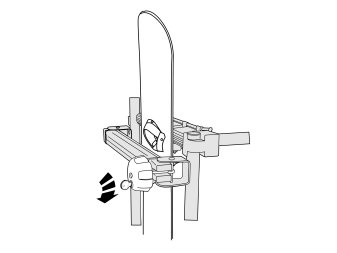

Illustration A shows the installation of a pair of skis

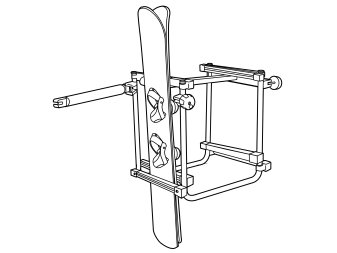

Illustration B shows the installation of one snowboard





Illustration C shows the installation of two snowboards

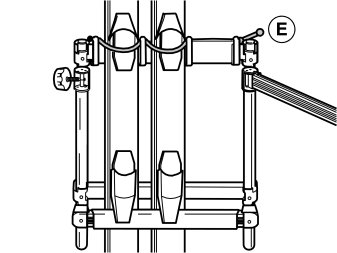

Illustration D shows tensioning with a rubber strap




- Guide the skis or snowboard down into the lower holder.
- Hold them in against the upper holder's rear section.
- Tension them in against the rear section using the rubber strap, (Illustration D), in order that they shall be held in place while more skis/snowboards are installed in the holder as well as when the attaching brace is closed.




- Fold back the attaching brace and the locking wheel.




- Tighten the locking wheel.

Caution! Check that the load on the ski holder is well-tensioned so that there is no risk of it falling off. In addition, check periodically during the journey. The load must not obscure the number plate or lighting. Retighten all screws, nuts and locking wheels regularly to avoid the risk that any part of the accessory or load may fall off.

The ski holder must not be used when driving over terrain.
Damaged tensioning straps and mounting straps must be replaced with new ones.
Do not allow the load to shift outside of the ski holder.
Remember not to load too heavily and that the car's centre of gravity can be changed by carrying a hitch unit load.
If the car's number plate could be obscured by a loaded ski holder there is an extra number plate holder with lighting that is available as an accessory and which should then be used.
