Towbar, Hitch, License Plate Holder

Towbar, hitch, license plate holder





















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section

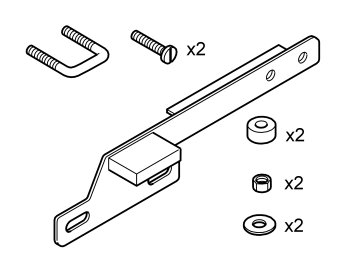

Towbar, hitch, license plate holder

Image A applies when mounting on the holder's horizontal square tube





Image B applies when mounting on the holder's vertical square tube

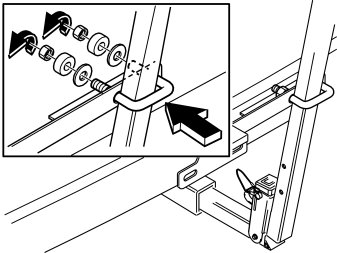

- Take the license plate holder and tighten it at the holder with the clamp, spacer sleeves and nuts from the kit as illustrated. Tighten the nuts to 7 Nm (5.2 lb.ft).




- Take the two screws from the kit and tighten the license plate into place.

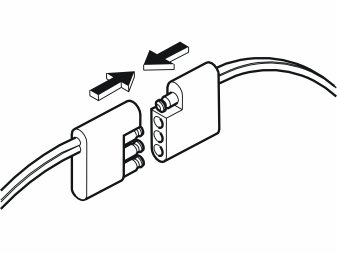

- Connect the connector for the license plate holder's lighting to the corresponding connector from the car.
