Suspension - Front Suspension Metallic Knocking Noise
TIE - Technical JournalTitle: knocking noise from subframe, rear bushing loose in subframe tube
Ref No: US17385.6.0 en-GB
Issuer: -
Partner: 3 US 7510 Volvo Cars North America
Func Group: 7110 Func Desc: frame, complete
Status: Released
Status Date: 2010-05-04
Issue Date: 2010-04-30
Reference: VIDA, VSTG

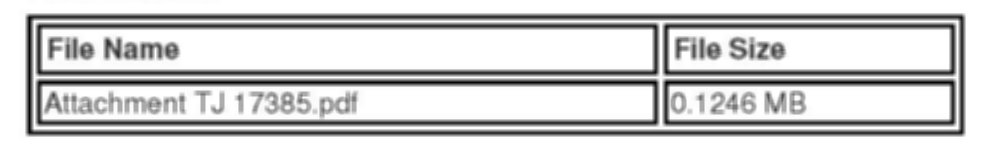

Attachment
Vehicle Type
CSC
DTC
Text

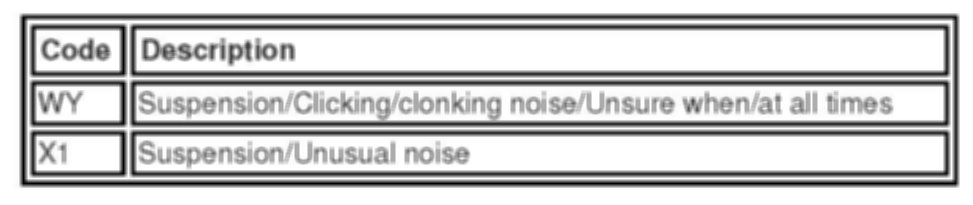

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:

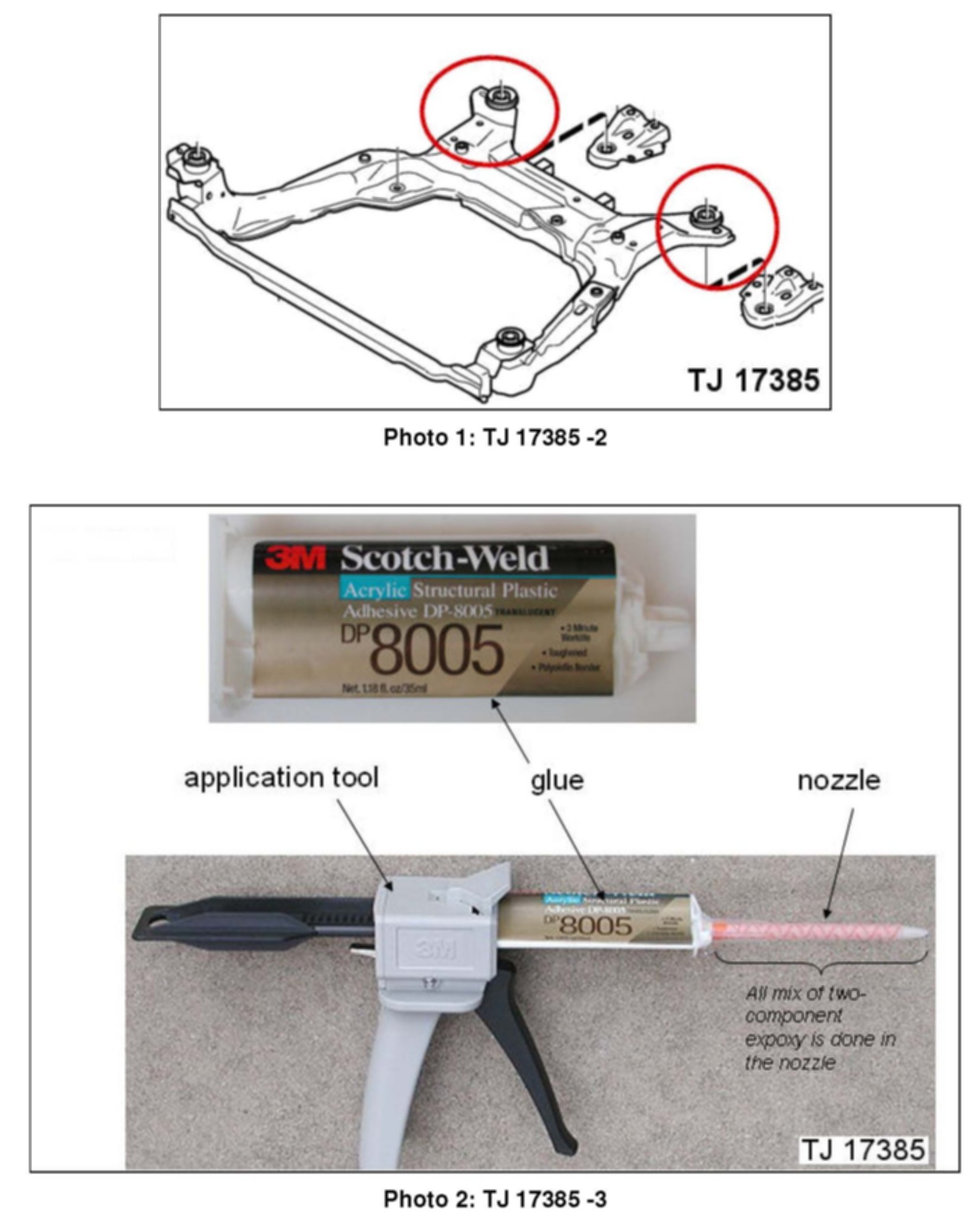

There may be a metallic knocking noise from the front suspension when turning, accelerating, braking or during situations with side loads. Analysis has shown that it is possible that the noise is caused by movements of the rear bushing in the subframe bushing tube. See Photo 1 "TJ 17385 -2" in the attachment.
PRODUCT MODIFICATION:
A new subframe with a tighter bushing tube was introduced in production from structure week 2008w13 (see chassis ranges above).
MATERIAL:
PN 9511027, 3M DP8005 adhesive (good for up to 5 cars)
PN 9512950, Glue gun
PN 1161730, nozzle for special tool
PN 31201148, rear subframe bushing
Alternative adhesive: "LORD 305", a general purpose, medium viscosity, two-part epoxy, often found in USA.
SERVICE:
Use the Chassis Ears toolkit to verify that the noise is coming from the bushing. If a metallic knocking noise can be heard from the bushings, replace the rear bushings and apply adhesive between the subframe tube and bushing.
The recommended adhesive is 3M DP8005 two-part epoxy. See Photo 2 "TJ 17385 -3" in the attachment.
Note!
If properly glued, the adhesive increase the joint strength by approx. 50-100%.
Important!
Let the glue set properly before the subframe is installed in the car. Refer to the recommended time on the glue tube.
Important!

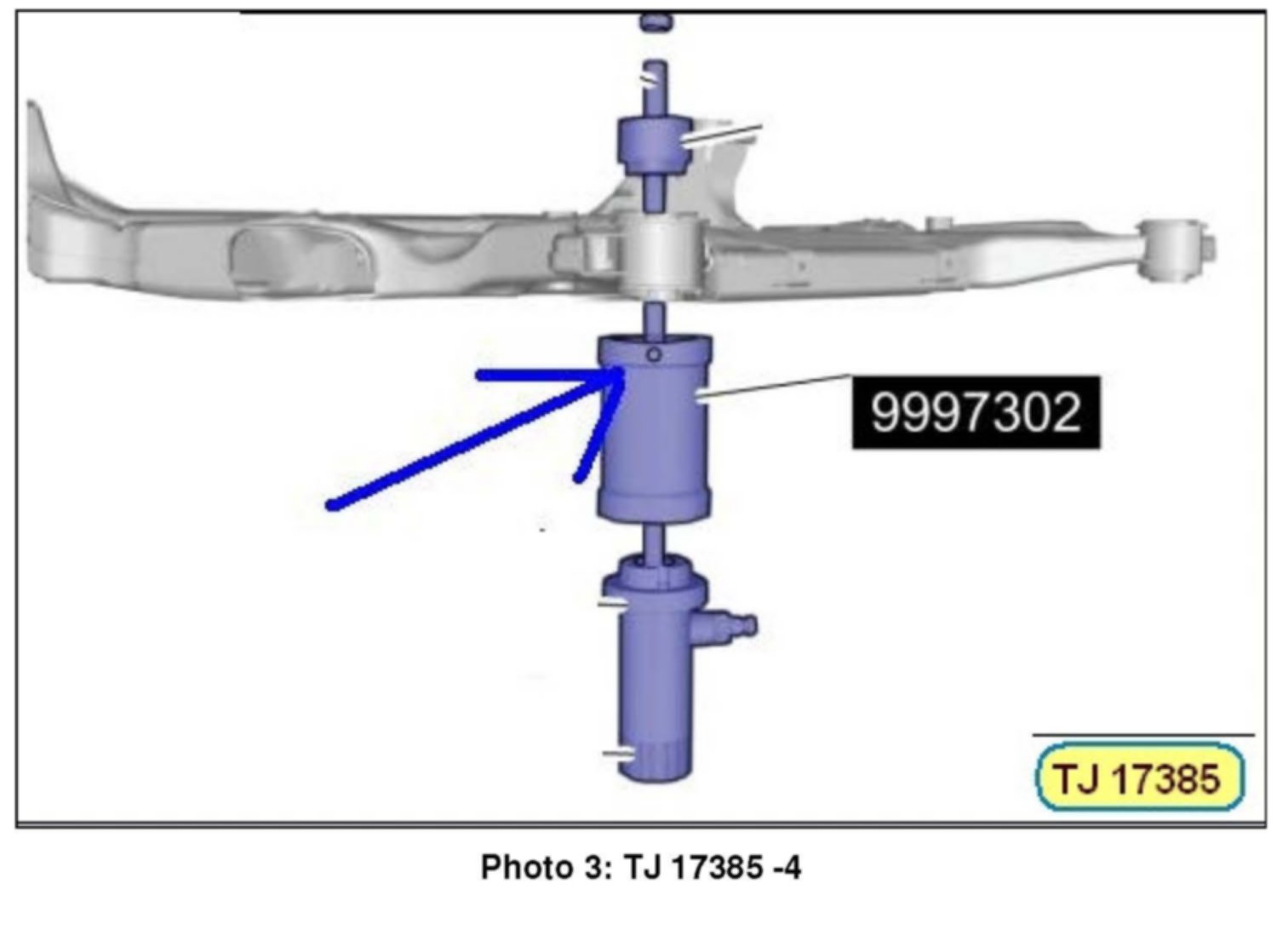

There have been some reports regarding difficulties with removing the existing bushings from the subframe following the previous VIDA procedure. It is important that the removal socket is installed in the correct way, with the small hole in the socket facing the subframe. Refer to Photo 3 "TJ 17385 -4".
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number 99400-2 - General check/adjust acc. to TJ - 0.1 hrs
Operation number 21824-2 - Bushing subframe replace (1 bushing) - See VSTG
Operation number 21825-3 - Bushing Subframe replace (additional bushings) - See VSTG
Operation number 99521-2 - Chassis Ears, inst/rem. (only if Chassis Ears are used in the fault tracing) - 0.4 hrs
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
Car Customer Service
TJ INSTRUCTIONS
TJ NO 17385
DATE MAY-10
ISSUE 01
TITLE: KNOCKING NOISE FROM SUBFRAME, REAR BUSHING LOOSE IN SUBFRAME TUBE
