Body/Frame - Subframe Bushing Removal and Installation
NO: 21-26DATE: 12-13-2007
MODEL:
ANS80, ANXC70, ANV70
M. YEAR:
S80 (07-), XC70 (08-), V70 (08-)
CHASSIS:
N/A
SUBJECT:
Subframe Bushing Removal and Installation
REFERENCE:
VIDA, TNN 76-08
Note!
If using a printed version of this TNN, first check for the latest online version.
Description
This document is a complement to VIDA to better explain the process of removing and installing subframe bushings.
Material
Part numbers according to VIDA.
Tools
According to VIDA. Note that is very important that the specifically specified tools are used.
Service
The procedure is explained in VIDA, this TNN clarifies the procedure.

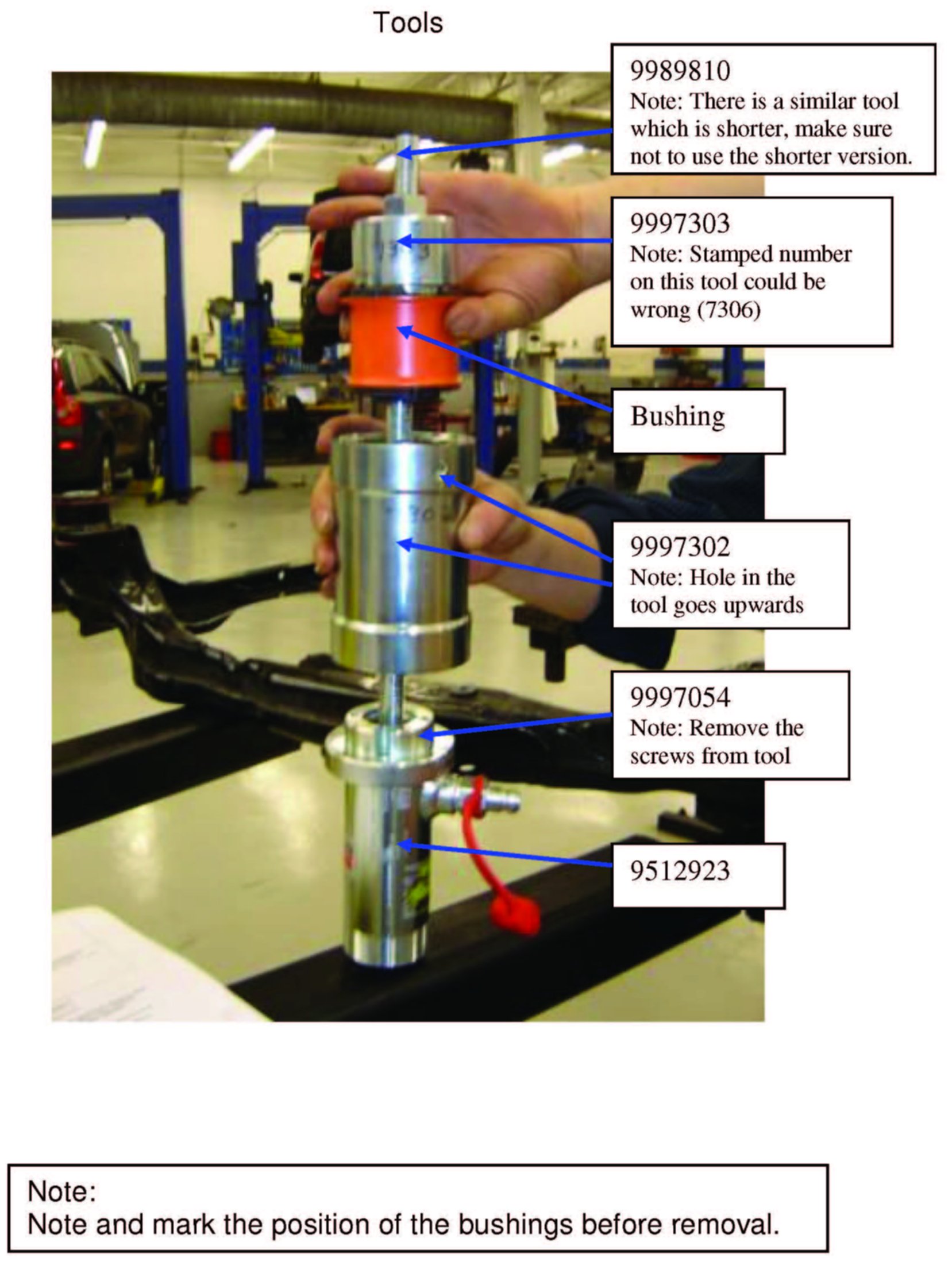

Tools

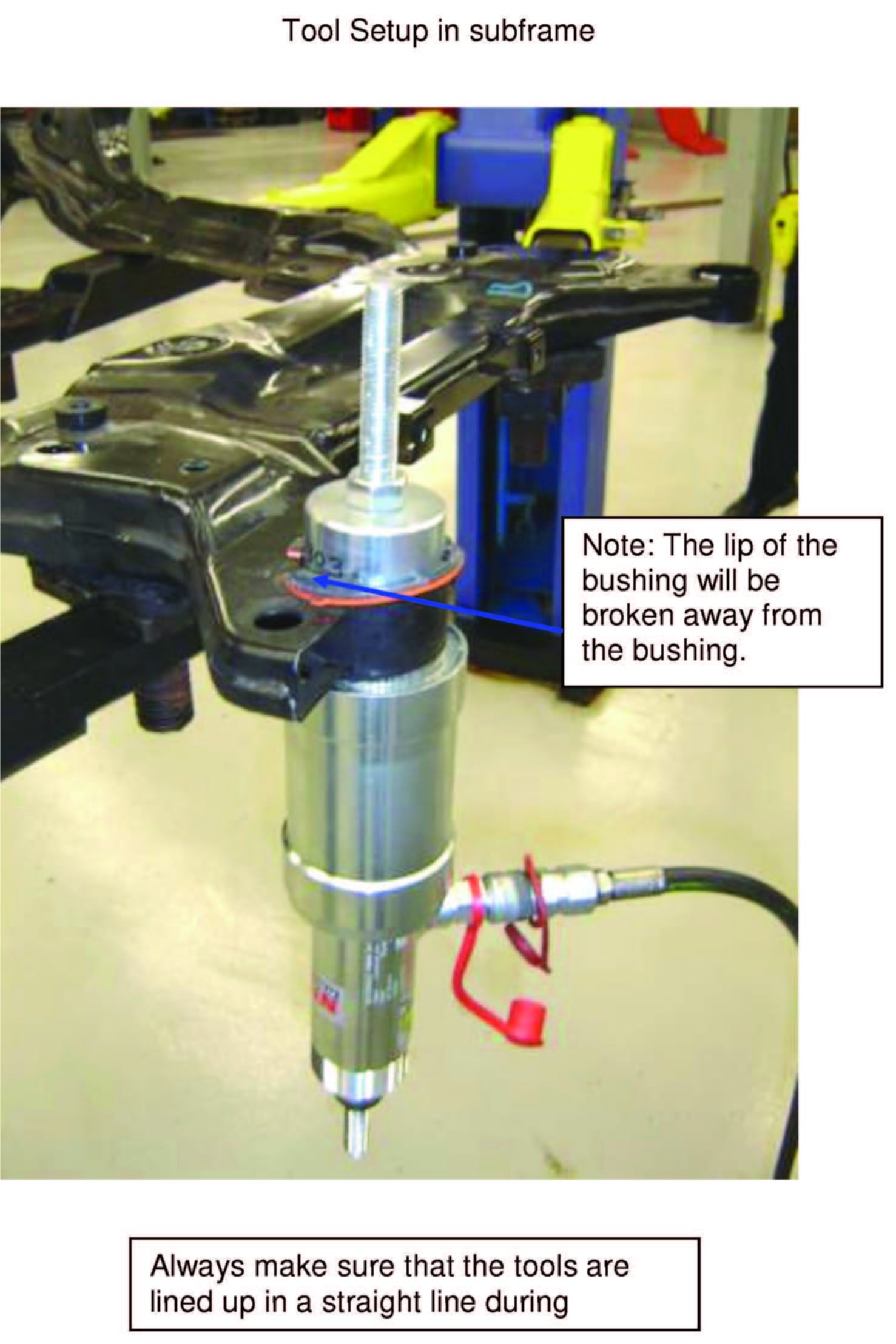

Tool Setup in Subframe
Removal of bushing
Note:
Note and mark the position of the bushings before removal.
Removal of bushing
Always make sure that the tools are lined up in a straight line during
Installation of bushing.

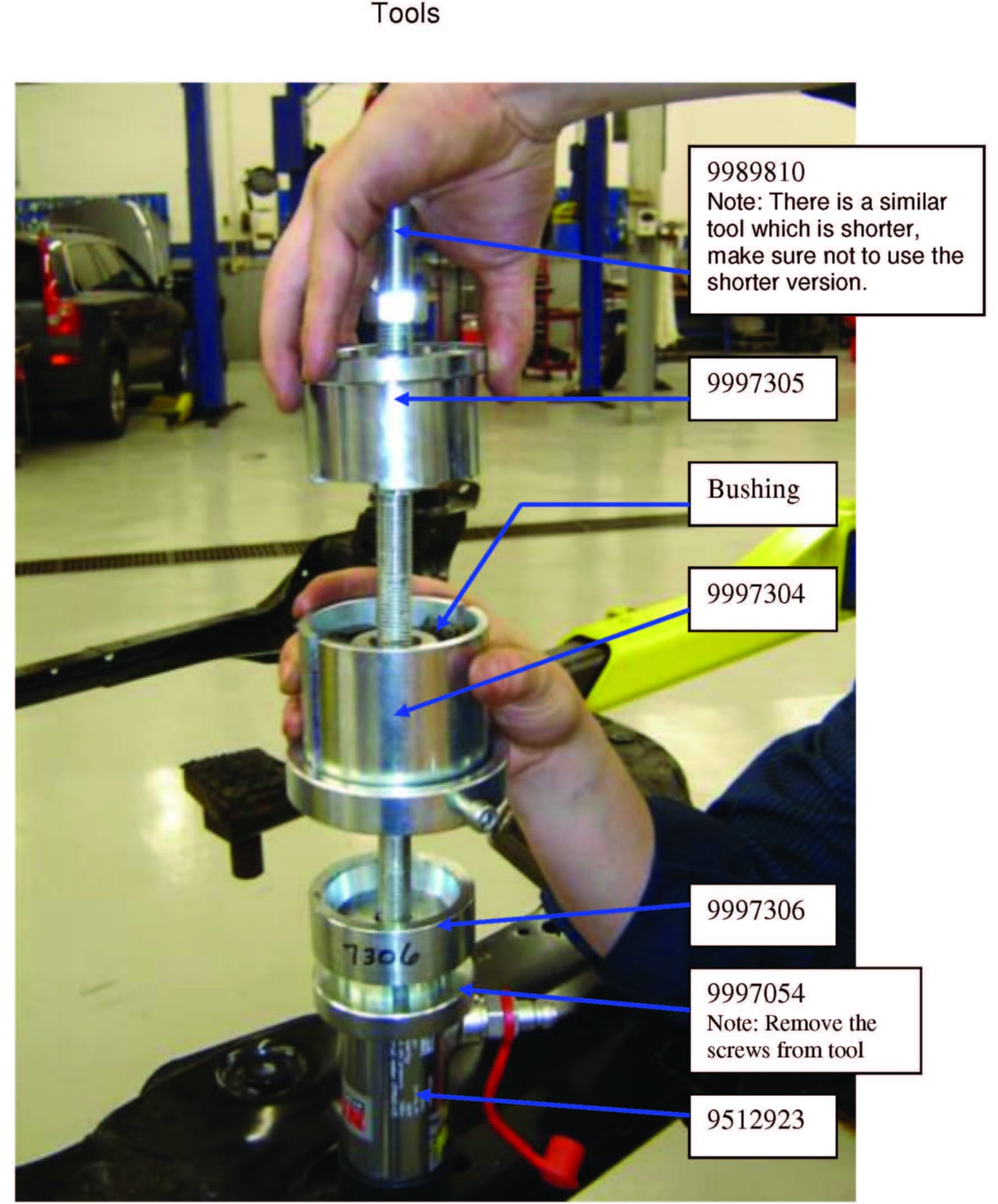

Tools

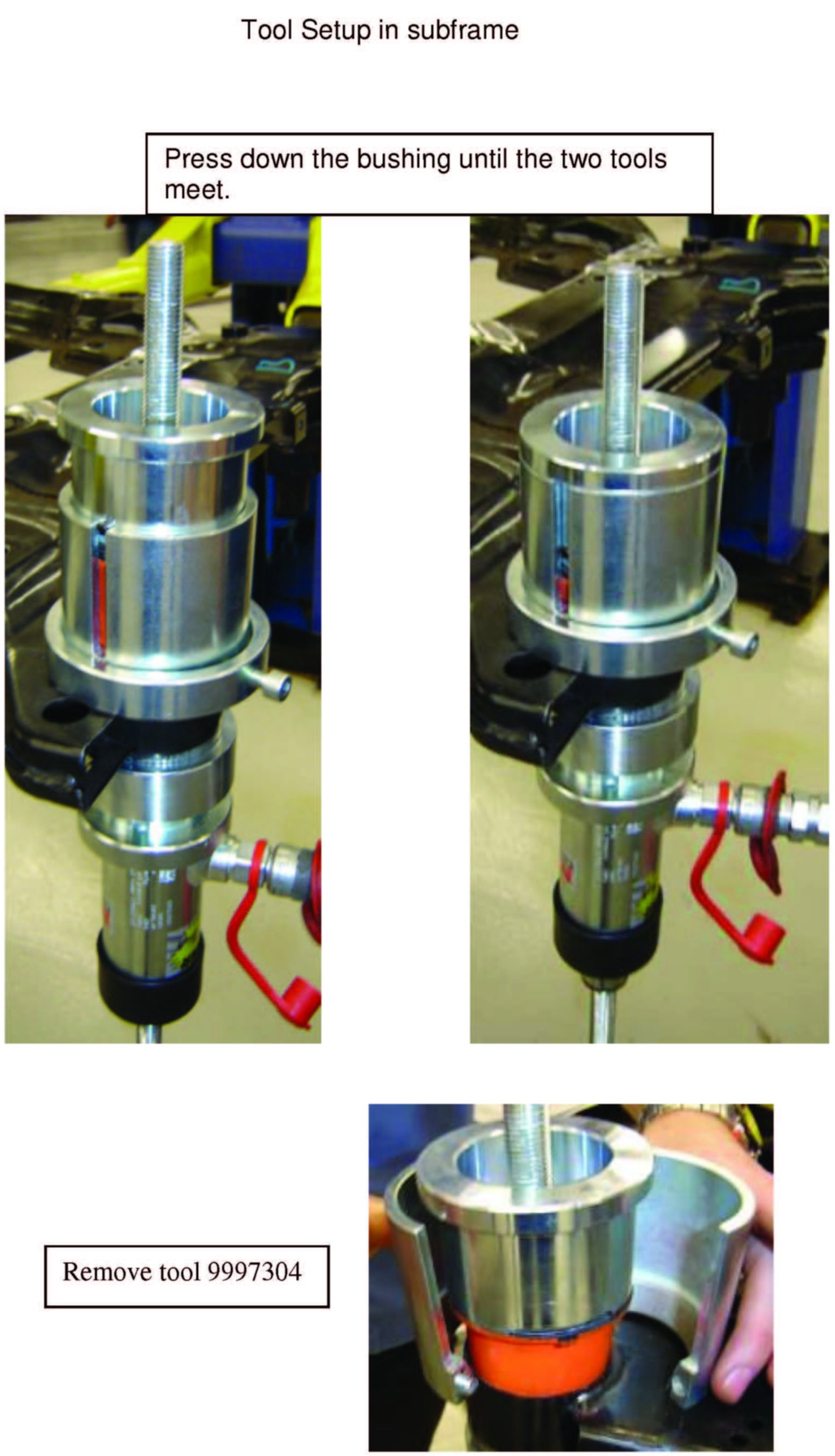

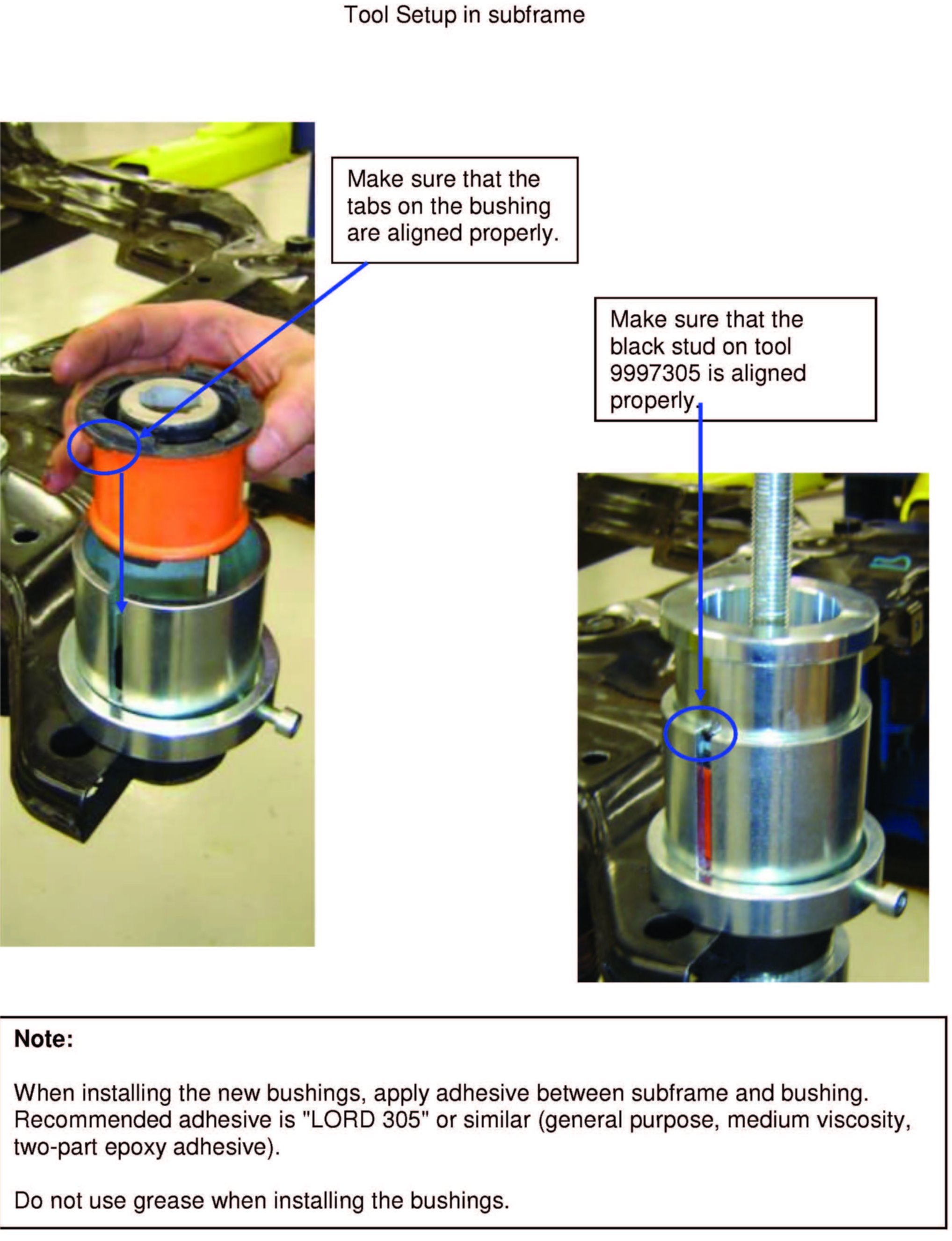

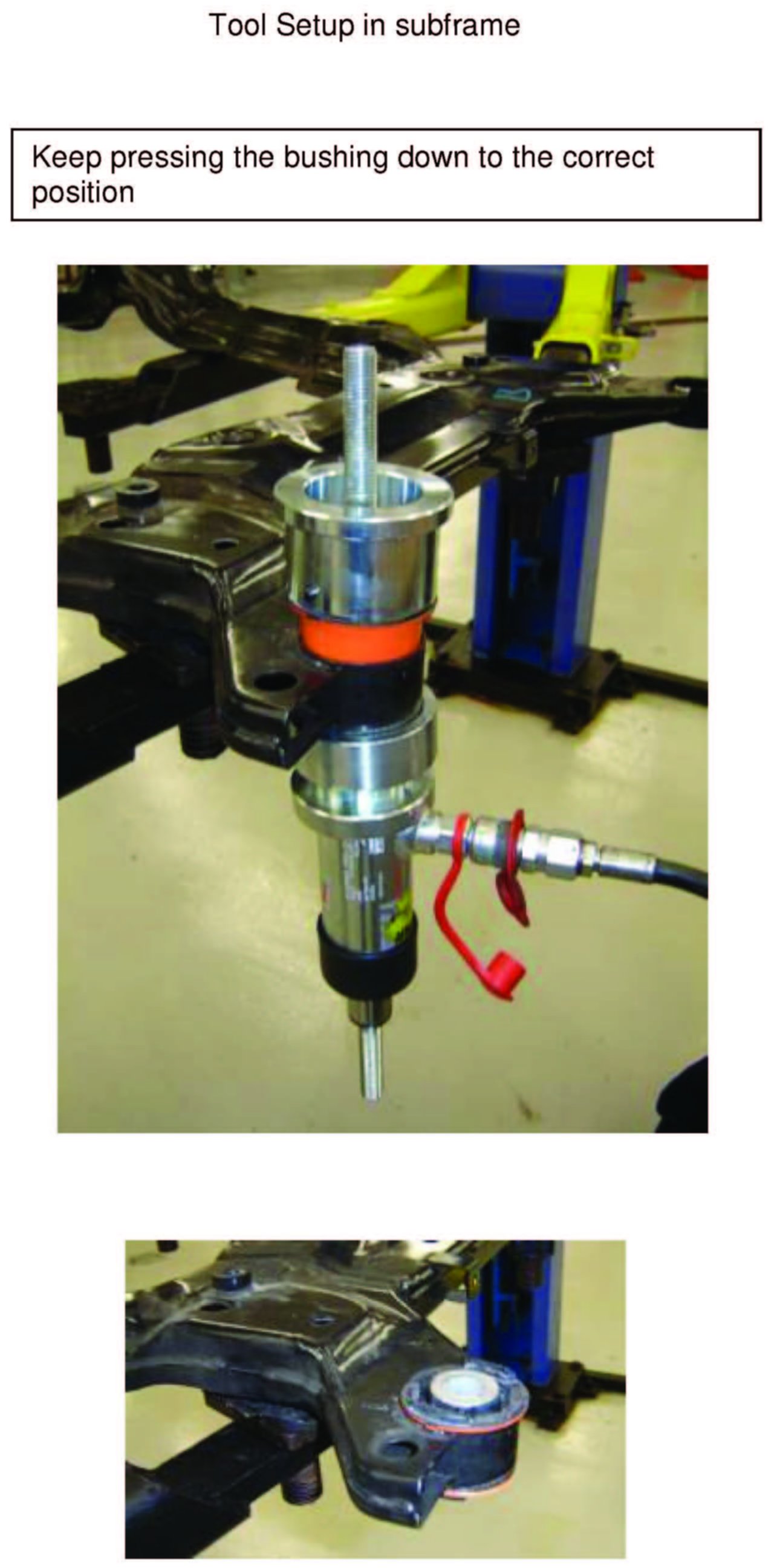

Tool Setup in Subframe
Installation of bushing
