Trunk / Liftgate Hinge: Service and Repair

Hinges tailgate and trunk lid

Operation number: 83253-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove luggage compartment lid Refer to: Luggage Compartment Lid Removal and Replacement

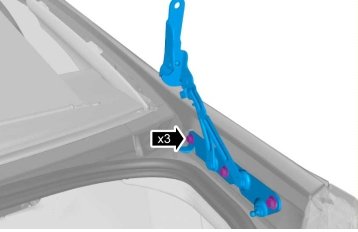

Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.
