Fuel Door Latch: Service and Repair

Door Latch, Front Door

Operation number: 83414-2

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the following items:







- Window, front door.

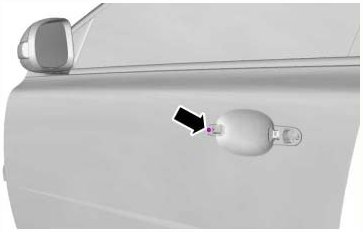

- Handle outer door front

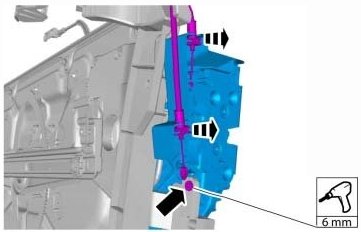

1. Torque: M6, 10 Nm

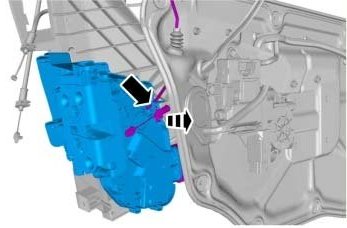

2. Torque: Door latch to door, 8 Nm

Installation

To install, reverse the removal procedure.
