Front Door: Service and Repair

Front door

Operation number: 83120-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Lift mechanism, front door Refer to:
- Rear view mirror external Refer to: Rear view mirror external Rear View Mirror External

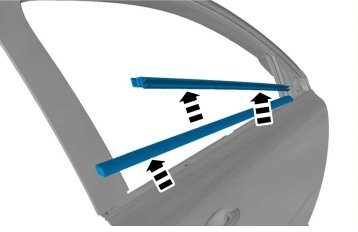

- Lower trim strip, front door Refer to: Lower trim strip, front door
- Door stop front side door Refer to: Door stop front side door Service and Repair

Caution! Make sure that the component is not bent.

Torque: M8, 24 Nm

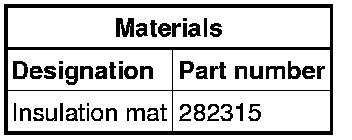

Use: Insulation mat, 282315

Installation

To install, reverse the removal procedure.

Follow the instructions regarding corrosion protection Refer to: Rustproofing
