Loudspeaker Side Door, Rear






Loudspeaker side door, rear

Operation number: 39535-2

Removal

Remove panel side door rear Refer to: Panel rear door Panel Rear Door

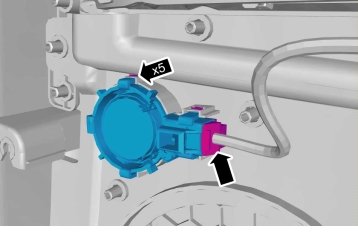

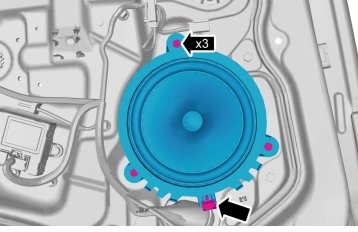

Perform removal pop rivet Refer to: Removing rivets









Installation

To install, reverse the removal procedure.
