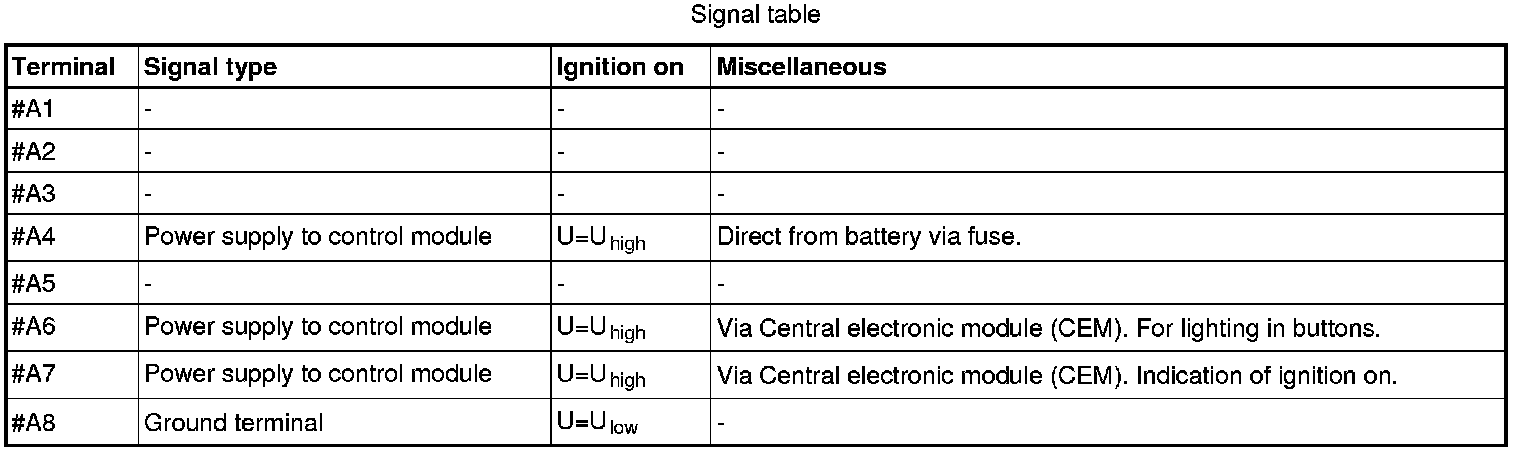

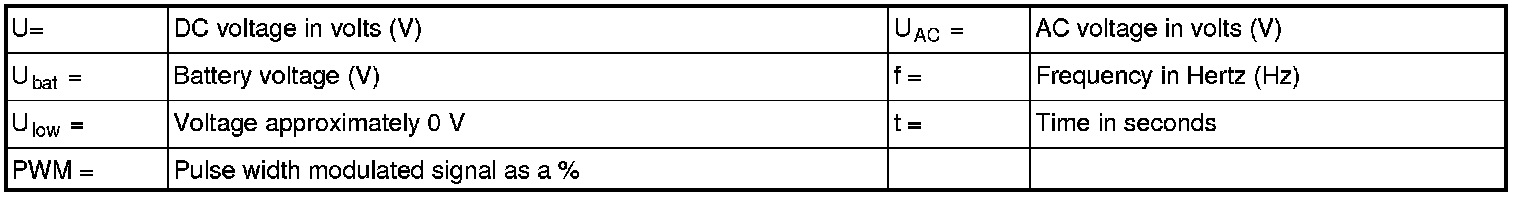

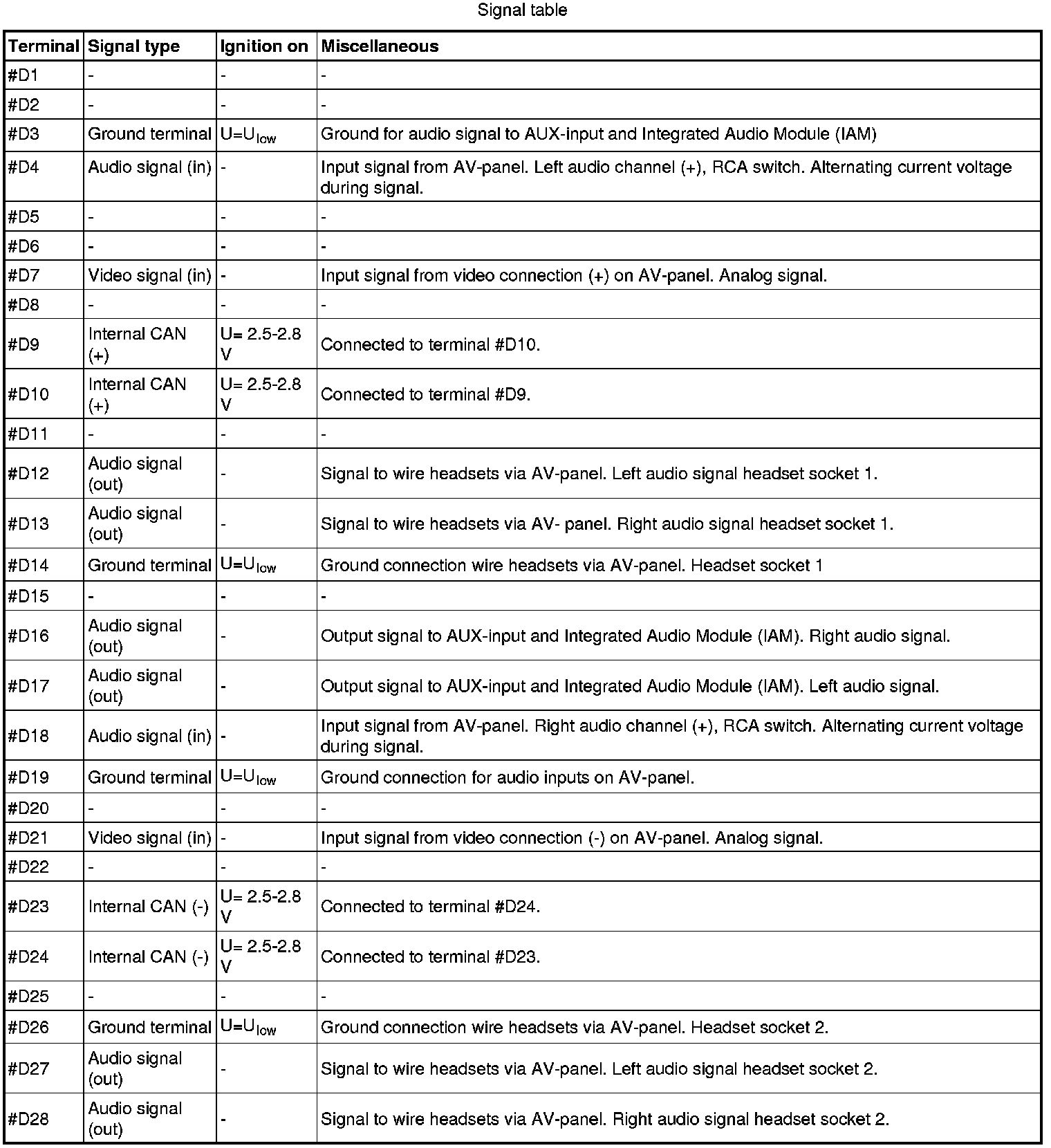

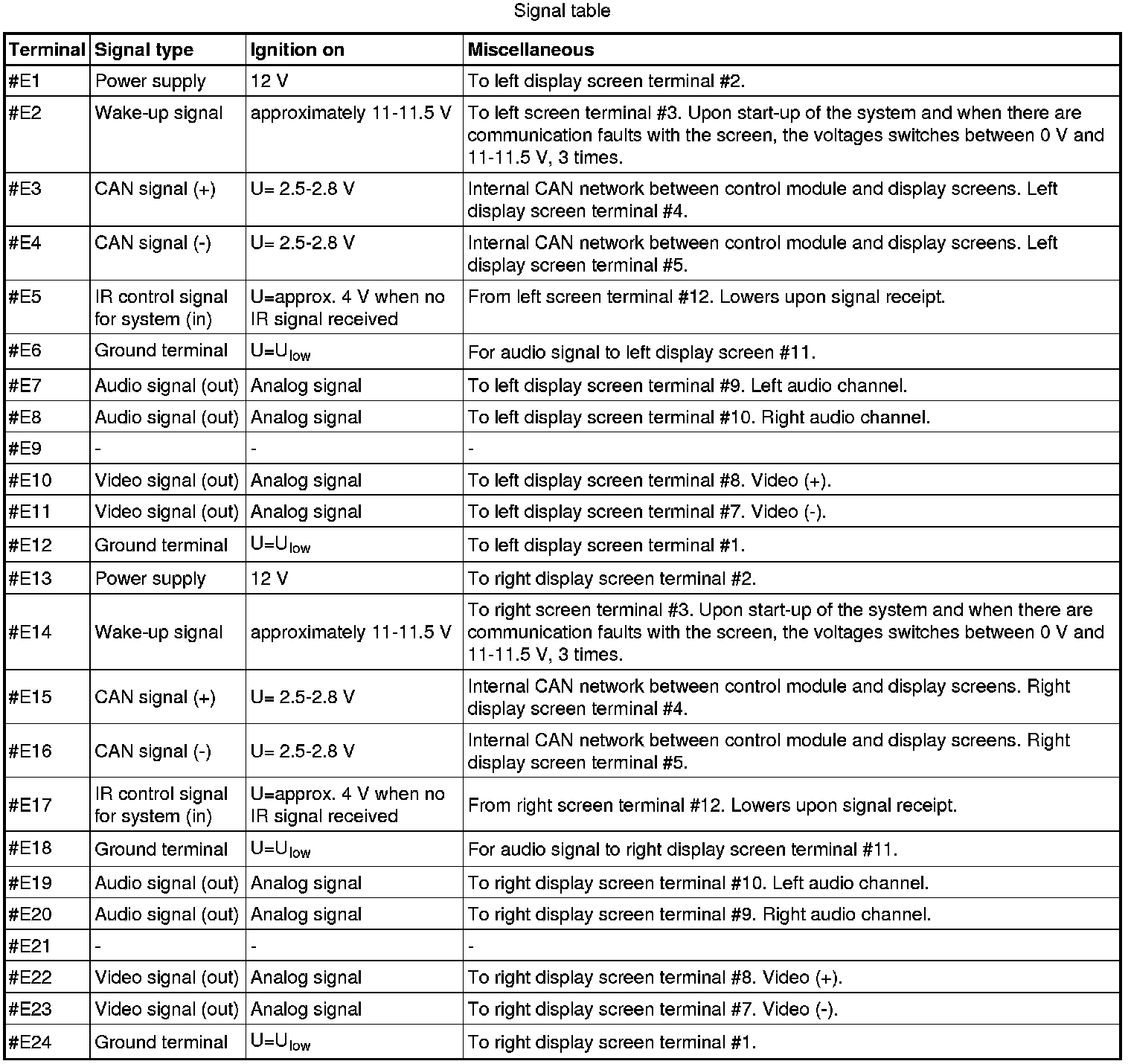

Signal Specification, Rear Seat Entertainment Module (RSE), Generation 4.2






Signal specification, rear seat entertainment module (RSE), generation 4.2

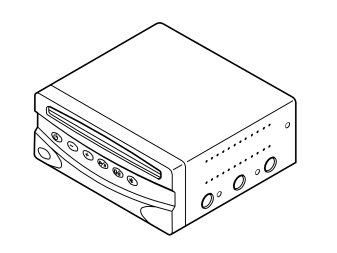

Damaged rear seat entertainment module (RSE).
