Part 3

Multimedia monitor with DVD (Continued)

Illustrations A and B

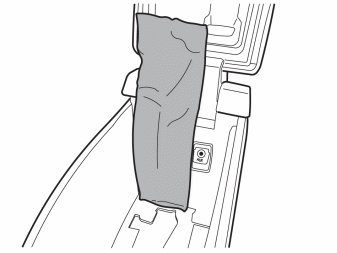

- Attach tape at the front and rear edge of the tunnel console for protection when installing the DVD player.









- Connect the connector to the AV socket.

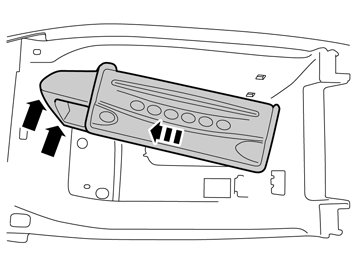

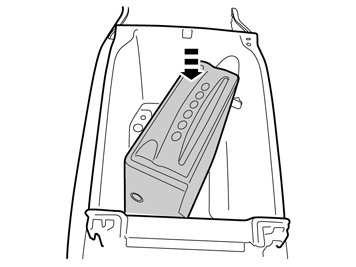

- Insert the DVD player diagonally into the tunnel console.




- Secure the two hooks at the front edge




- Connect the four connectors from the tunnel console to the DVD player. (Three without Digital TV receiver.)

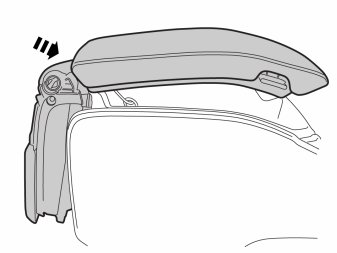

Armrest




- Install the armrest with its mounting and two screws. At same time connect the connectors.




- Install the cover panel and the two screws. Check that the hooks at the lower edge engage.




- Take the lever carrier with the tunnel console surround and move it towards the tunnel console.
- Press the connector for any handsets on the surround and connect the cable for the handset.




- Secure the clip of the cable harness to the surround.




- Secure the cradle for the connectors on the frame.




- Secure the clip of the cable harness to the surround.

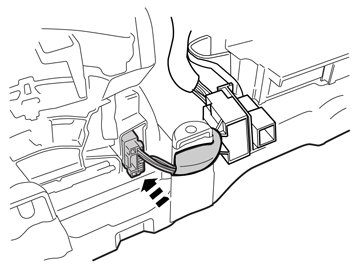

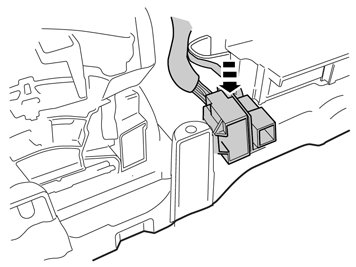

- Connect the connector to the lever carrier.

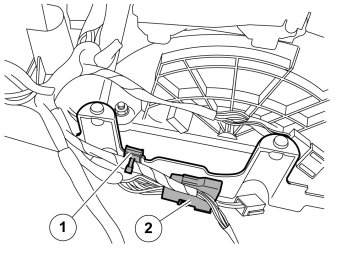

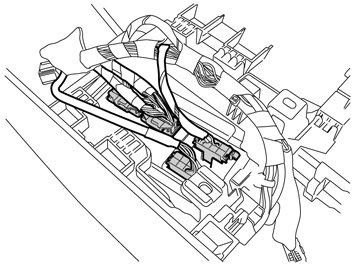

- Hook the cable harness clips (1) and the connector (2) onto the surround.

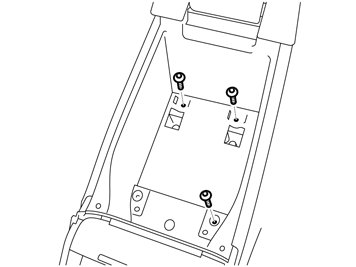

- Temporarily reinstall the three screws at the bottom of the storage compartment.

Installing, screens

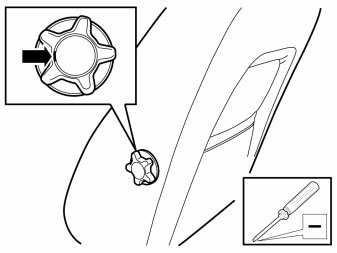

- Remove the knob for the lumbar support adjustment by removing the cover using a small screwdriver and pull the knob straight off.

Note! Points 85-113 apply to both front seats. Complete one seat at a time.

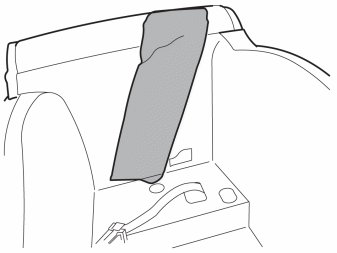

- Take a long cable tie from the kit and insert it through the hole for adjusting the lumbar support and inside the upholstery. The cable tie must be routed between the thin foam of the upholstery and the support pad.

Illustrations A and B

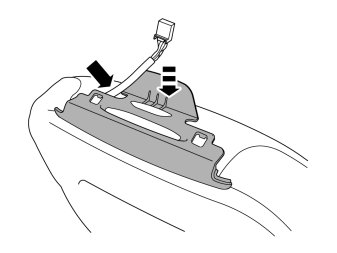

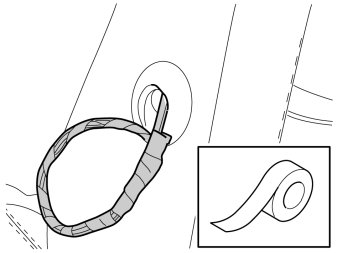

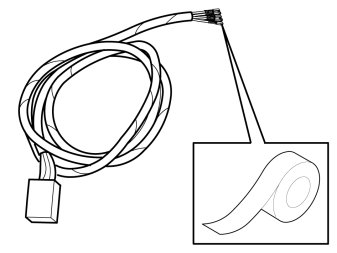

- Take the cable harness from the kit. Tape the cable terminals together on the cable tie. Tape together as flat as possible.
- Pull the cable tie through with the cable harness.
- Remove the cable tie from the cable harness.










Applies to the right-hand front seat

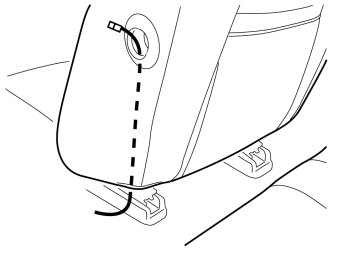

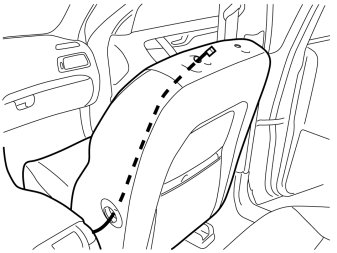

- Thread the cable tie from the headrest's inner mounting down to the hole for lumbar adjustment. The cable tie must be routed between the upholstery's thin foam and the protective pad (also see image 94).





Applies to the left-hand front seat.
- Thread the cable tie from the headrest's outer mounting down to the hole for lumbar adjustment. The cable tie must be routed between the upholstery's thin foam and the protective pad (Also see image 94).




- Tape the cable harness on the cable tie. Tape as flat as possible.
- Pull it up towards the upper edge of the seat and out through the hole for the headrest.
- Remove the cable tie and tape from the cable harness.

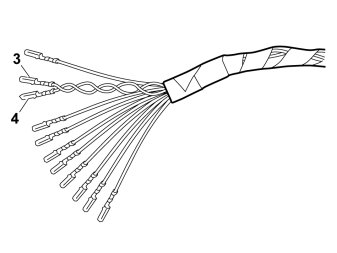

Caution! There are two brown wires in the cable harness. The brown wire for position 4 is twisted with the blue wire for position 3.

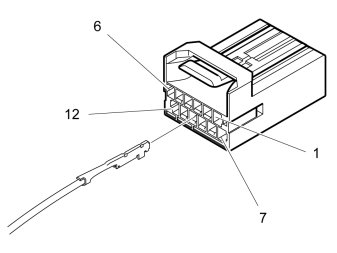

Position:
1. Not connected
2. White (W)
3. Blue (BL)
4. Brown (BN)
5. Red/White (R/W)
6. Red (R)
7. Black (SB)
8. Brown (BN)
9. Yellow (Y)
10. Green (GN)
11. Gray (GR)
12. Pink (P)




- Take the gray connector from the kit. Connect the cable harness terminals according to the previous steps.
- Slide the connector's catch in.

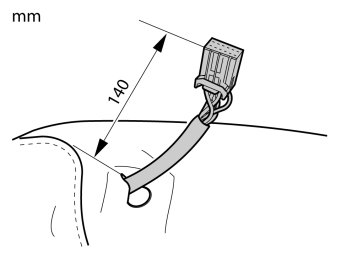

- Adapt the length of the cable harness so that the connector protrudes about 140 mm. The cable harness must be positioned in front of the hole for the head restraint.




- Using your fingers, press the cable harness under the protective pad, the cable harness must not press out the upholstery after installation.

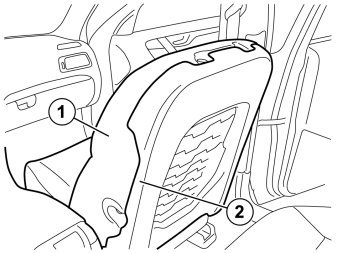

- Padding (1)
- Protective pad (2)

Note! The image shows right hand seat without upholstery.

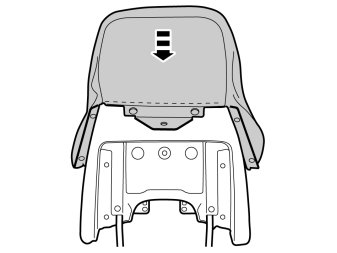

- Remove the head restraint and the upholstery from the kit. Pull the upholstery over the head restraint.

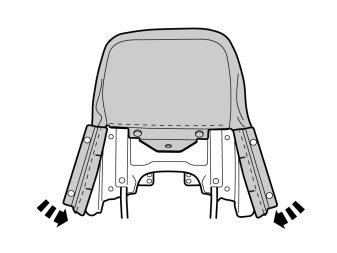

- Pull over the two corners of the upholstery.

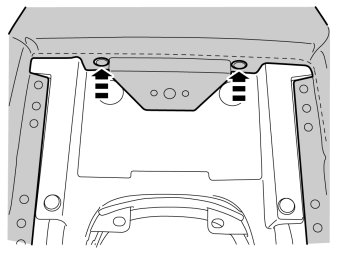

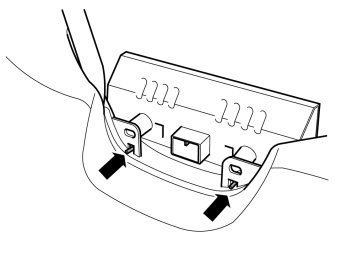

- Hook the upholstery on the two cut outs.

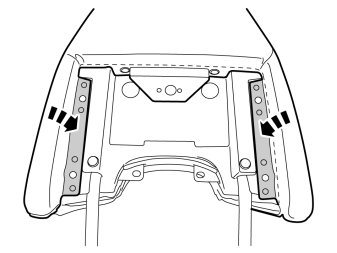

- Fold in the upholstery's two reinforcements.




- Fold up the upholstery reinforcement.

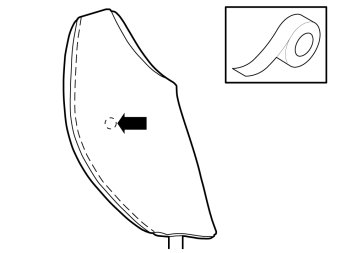

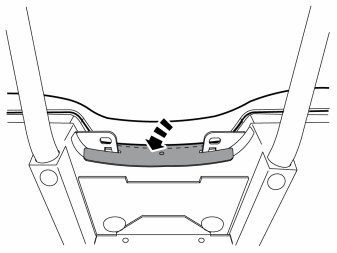

- Locate the hole under the upholstery on the side of the headrest.

Note! The inward facing side in the car.

- Mark for hole making with a piece of tape
- Fold back the upholstery reinforcement.

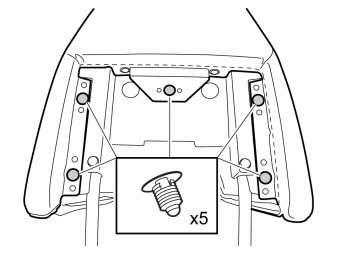

- Install the 5 clips.




- Fold in the upholstery mounting.




- Take the display from the kit.
- Install the head restraint.

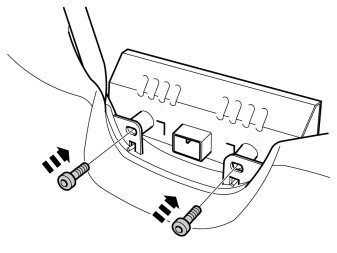

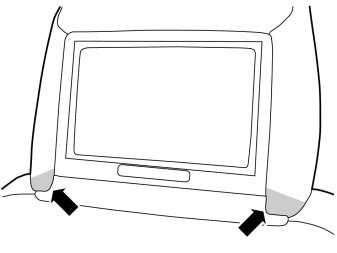

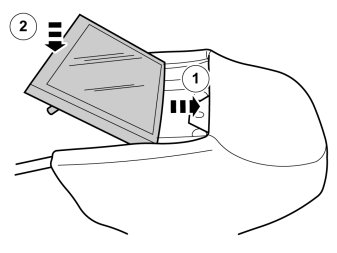

- Align the display with the two head restraint sockets.




- Install the two screws.

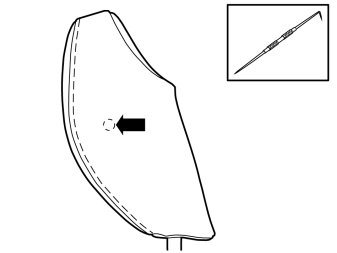

- Find the hole under the upholstery on the head restraint side covered with tape.
- Make a hole in the upholstery using a scriber or an awl.

Note! The inward facing side in the car.

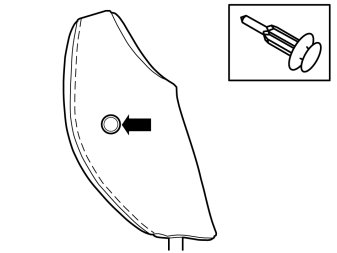

- Take the coat hook from the kit.
- Press into the hole.
- Tap it in lightly using a plastic hammer so that it secures properly.

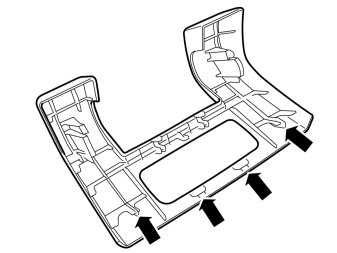

- Place the panel on the seat.
- Place the cable harness in the panel cut-out.

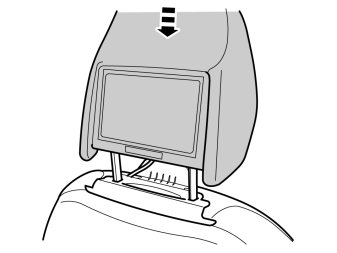

- Install the headrest on the seat.
- Only slide it down so that the distance between the seat and lower edge of the headrest is approximately 50mm.

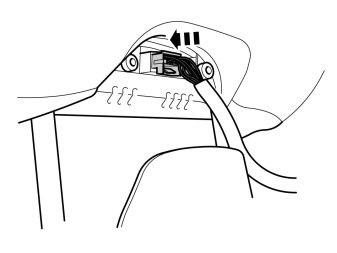

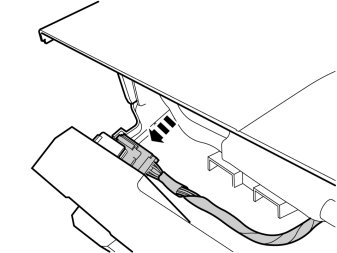

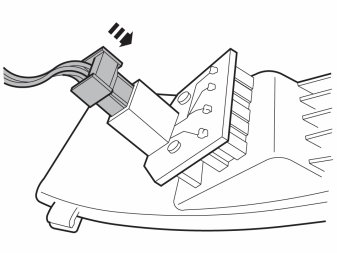

- Connect the connector and move the head restraint to its locked position.
- Check that the head restraint has locked into place by pulling it upwards.




- Check that the head restraint upholstery is in the correct position against the panel.





Applies to cars without electrically heated seats

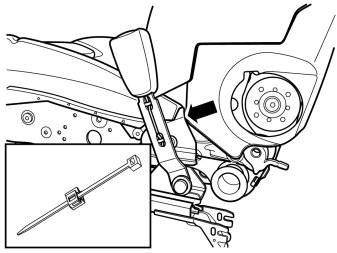

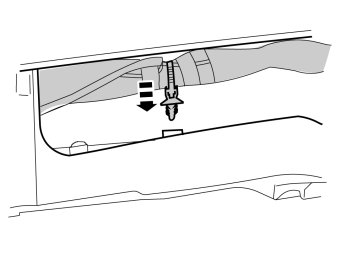

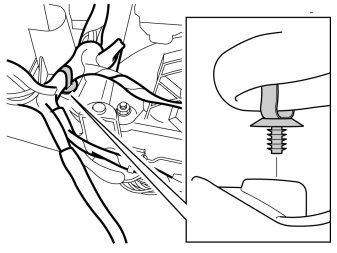

- Take a clip with cable tie from the kit and install it on the cover's edge on the left-hand side of the right-hand seat.





Applies to cars without electrically heated seats

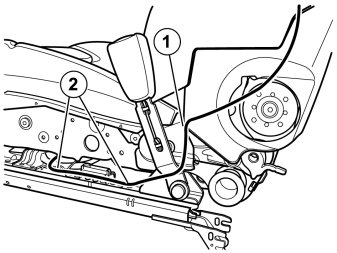

- Take the cable harness from the headrest and pull forward, in underneath the seat. Follow the cable harness for the seat belt buckle.

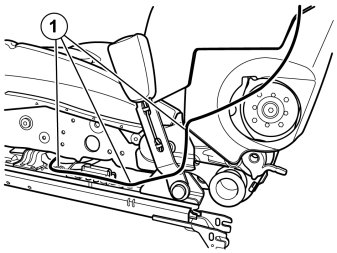

- Tighten the cable tie (1).
- Secure the cable using two cable ties (2).





Applies to cars with electrically heated seats
- Take the cable harness from the headrest and pull forward, in underneath the seat. Follow the cable harness for the heating element.
- Secure the cable using three cable ties (1).
