Part 2

Multimedia monitor with DVD (Continued)

Applies to all models

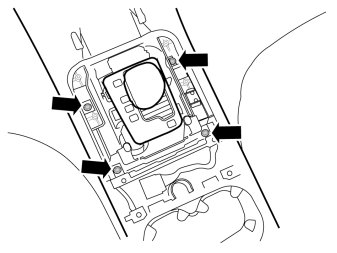

- Remove the four screws.

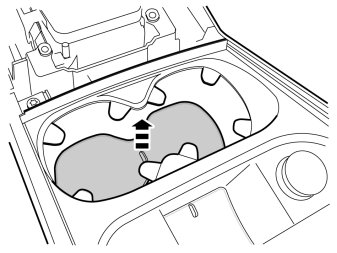

- Remove the mat in the cup holder.
- Remove the M8 screw.

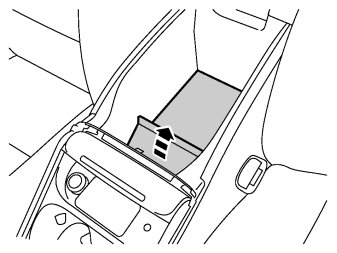

- Remove the rubber mat in the bottom of the storage compartment by pulling it up at the front edge.

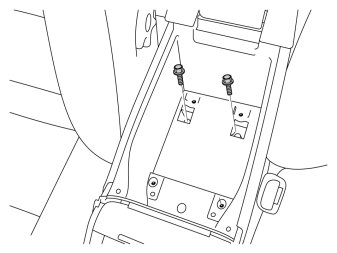

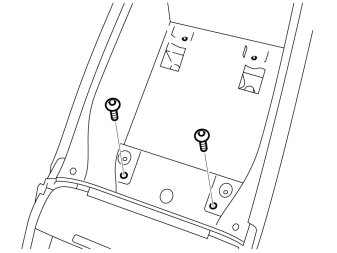

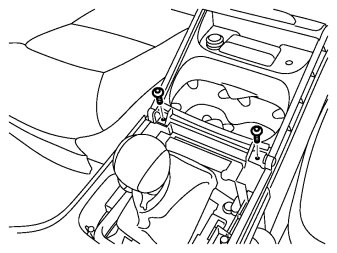

- Remove the two recessed M8 screws at the bottom of the storage compartment.

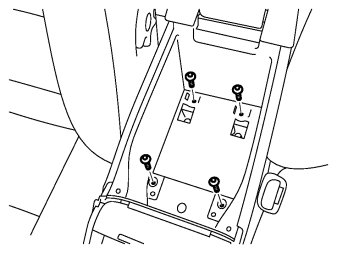

- Remove the four recessed screws at the bottom of the storage compartment.

- Remove the two screws.

- Press together the catches and lift the rear tunnel console rearwards slightly.

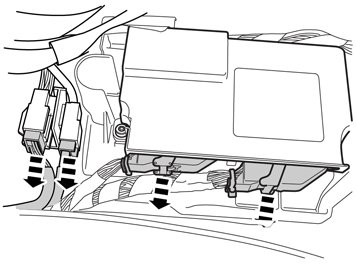

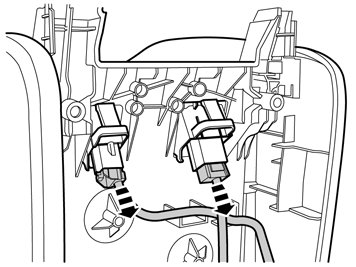

- Disconnect the two grey connectors and the two connectors on the SRS control module.

Illustrations A and B

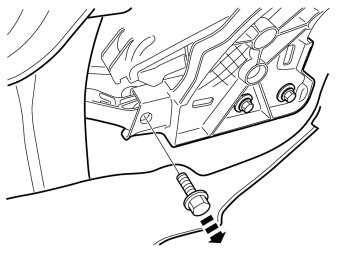

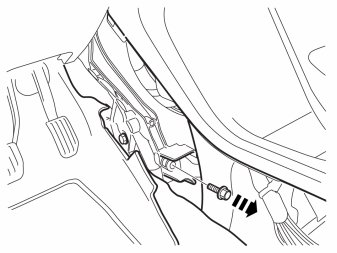

- Remove the two screws on each side of the center console.

Applies to cars with automatic transmission
- Depress the catches and move the gear lever to D.

Applies to all models

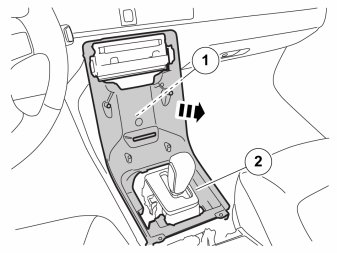

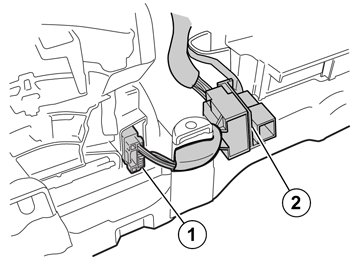

- Remove the lower section of the center console. Detach and unhook any connectors for the antenna for the keyless system (1) and Four-C system (2).

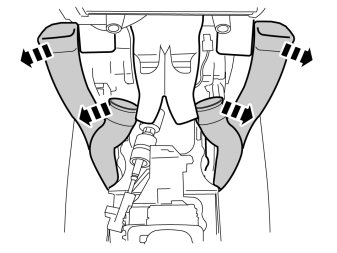

- Unhook and place the air ducts to one side.
- Pull the tunnel console with the lever carrier backwards and remove from the car.

Warning! Do not damage the SRS connectors when removing the tunnel console.

- Place the tunnel console on a suitable surface.
- Remove the cover panel.

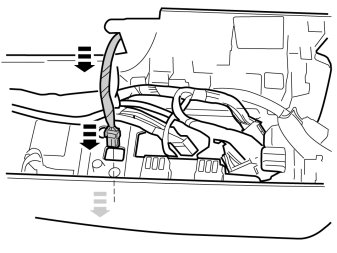

- Unhook the connector for any handsets.

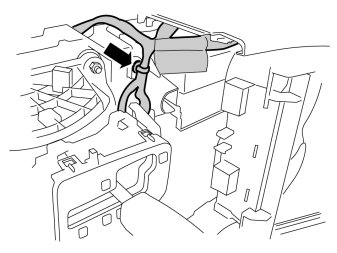

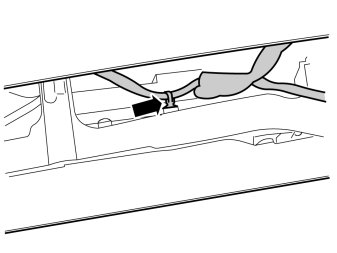

- Cut off the cable tie for the cable harness.

- Disconnect the connector (1) from the lever carrier.
- Unhook the connector (2) from the tunnel console surround.
- Remove the tunnel console surround.
- Remove all cradles for the connectors and cut cable ties from the frame.

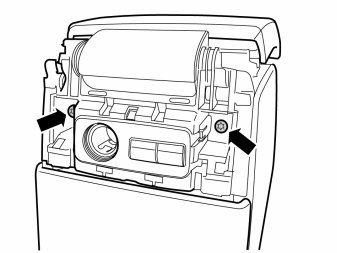

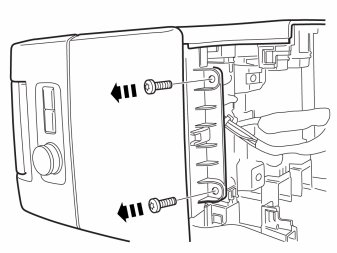

- Remove the two screws.

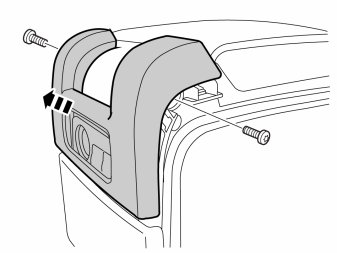

- Remove the two screws and the cover panel.

- Remove the two screws.

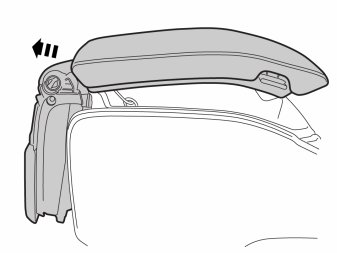

- Remove the armrest with its mounting.
- Disconnect and unhook the connectors.

- Detach the connectors on the underside of the cup holder.

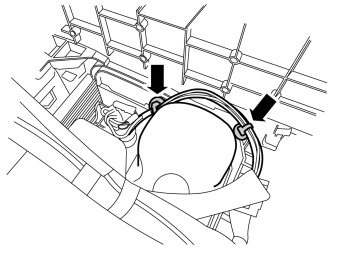

- Cut off the cable ties and remove the clips.

- Remove the front screws at the bottom of the storage compartment.

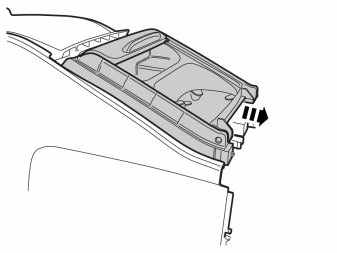

- Remove the cup holder from the tunnel console by pulling it forwards.

Installing components in the new tunnel console

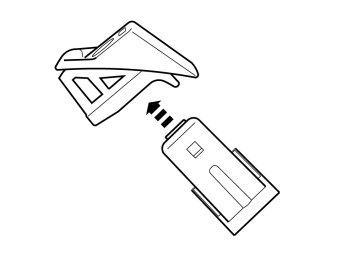

- Take the AUX socket with holder from the kit. Install the socket in the holder.

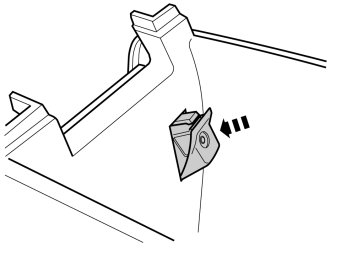

- Take the new tunnel console from the kit. Install the AUX socket in the tunnel console by first hooking it at the lower edge.

Applies to cars with a USB socket

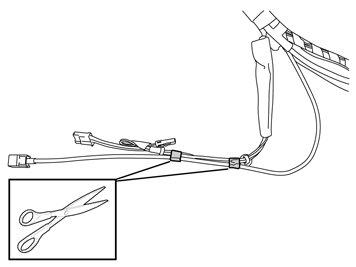

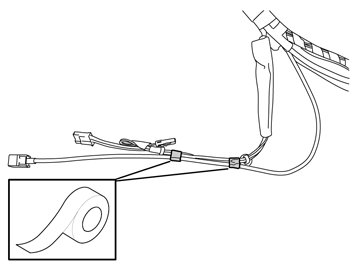

- Take the cable harness from the kit. Cut off the two pieces of tape.

Applies to cars without a USB socket

- Take the cable harness from the kit. Fold the grey cable back and tape the connector to the cable harness.

Applies to cars with a USB socket

- Connect the USB socket to the cable harness.

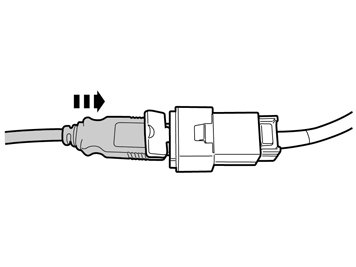

- Connect the USB cable to the socket.

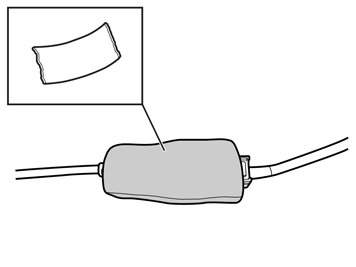

- Wrap foam tape around the USB cable and the socket. Tear off the excess.

Applies to all models

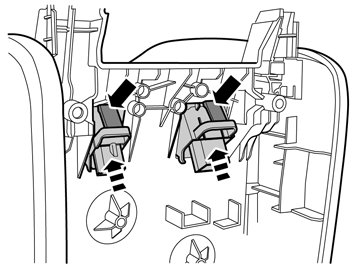

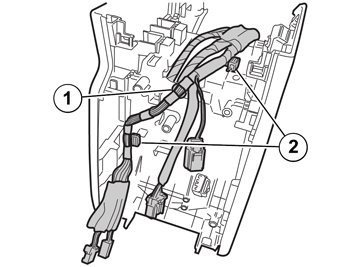

- Secure the cable harness clips in the hole (1) and on the flanges (2).

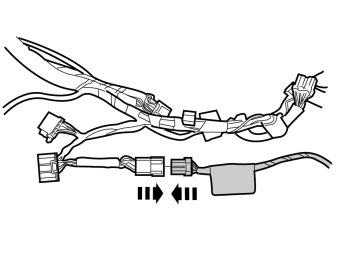

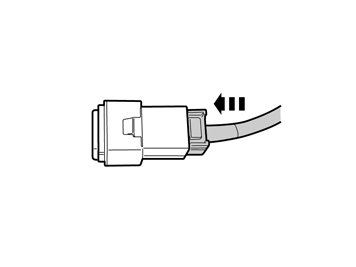

- Connect the AV socket's adapter cable to the cable harness.

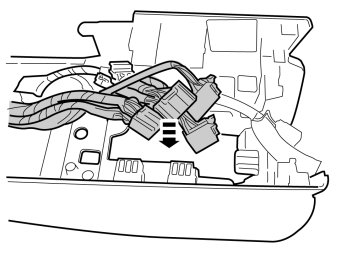

- Insert the four (three without Digital TV receiver) connectors for the DVD player through the hole at the bottom of the tunnel console.

- Insert the green 5-pin connector for the AV socket through the hole in the bottom of the tunnel console.

Applies to cars with a USB socket

- Disconnect the two connectors.

- Press in the two hooks and remove the panel.

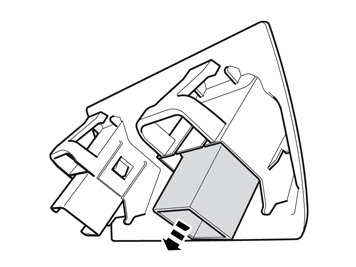

- Remove the USB socket from the panel.

Applies to cars with keyless system

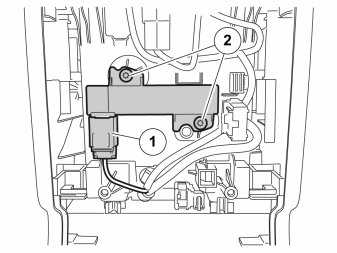

- Unplug the connector (1).
- Remove the two screws (2) and the antenna.
- Install the antenna on the new tunnel console.

Applies to all models

- Connect the connector to the AUX socket (1).
- Tape the connectors that are not used (depends on the specification of the car) to the tunnel console using butyl tape.
- 14 pin headset socket (2)
- 5 pin switch for rear seat heating (3)
- 2 pin 12 V socket (4)
- 4 pin antenna for Keyless system (5).

- Install the cup holder. Check that the two hooks engage on each side.
- Reinstall the front screws at the bottom of the storage compartment.

- Connect the connectors and press the two clips in for the cable harness.

- Remove the panel from the tunnel console by carefully releasing the four hooks.
- Install the panel on the new tunnel console.

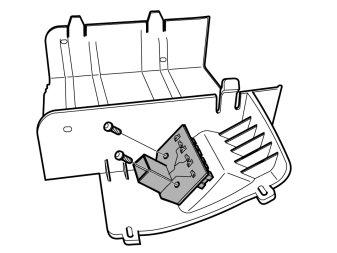

- Take the DVD holder, AV socket and two screws from the kit. Install the AV socket on the holder.

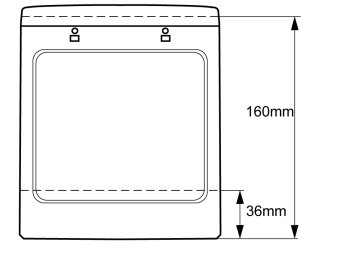

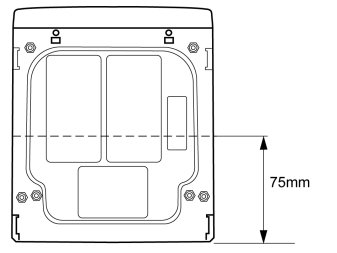

- Make markings on the top of the DVD player as illustrated. Make marks using a scriber.

- Make markings underneath the DVD player as illustrated. Make marks using a scriber.

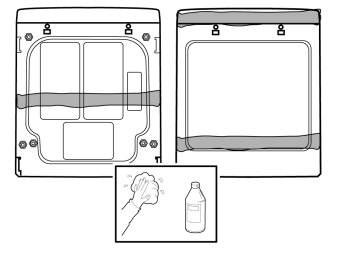

- Clean the areas around the markings using isopropanol.

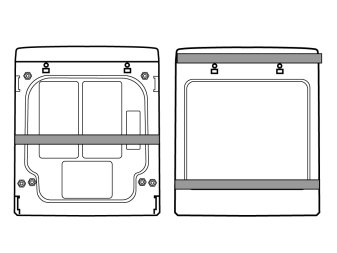

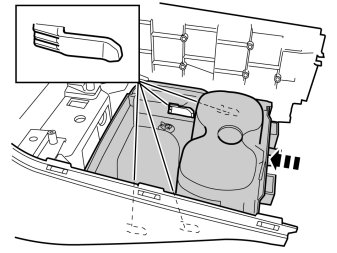

- Attach the three pieces of foam tape at the lower edge of the markings.

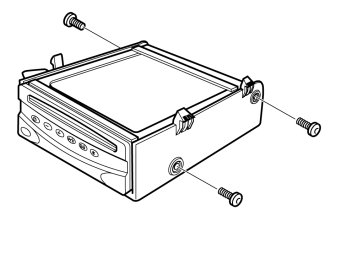

- Place the DVD player in the holder. Tighten the three M4x8 screws from the kit.
