Parking Assist System - ICM Graphic Visualization
NO: 39-62DATE: 04-28-2008
MODEL: S80, V70, XC70
MODEL YEAR: 2008
SUBJECT:
ICM graphic visualization for the parking assistance
REFERENCE: Owners manual
DESCRIPTION:
The ICM parking assistance information has been improved for better precision.
PRODUCT MODIFICATION:

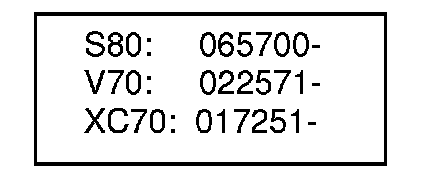

An ICM (Infotainment Control Module) graphic visualization for the parking assistance was implemented into production from structure week 200746- and following chassis numbers:
SERVICE:
The ICM graphic visualization for the parking assistance is backwards compatible and possible to upgrade in MY 2008 vehicles with structure week 200720 - 200745.
NOTE!
Total CAN SW Upgrade or Reload and ICM SW Upgrade or Reload will automatically give this graphic visualization for the parking assistance for all MY 2008 vehicles with structure week 200720 - 200745
^ ICM SW Upgrade, P/N 30775614
^ ICM SW Reload, P/N 30775615
^ Total CAN SW Upgrade, P/N 30782048
^ Total CAN SW Reload, P/N 30782050

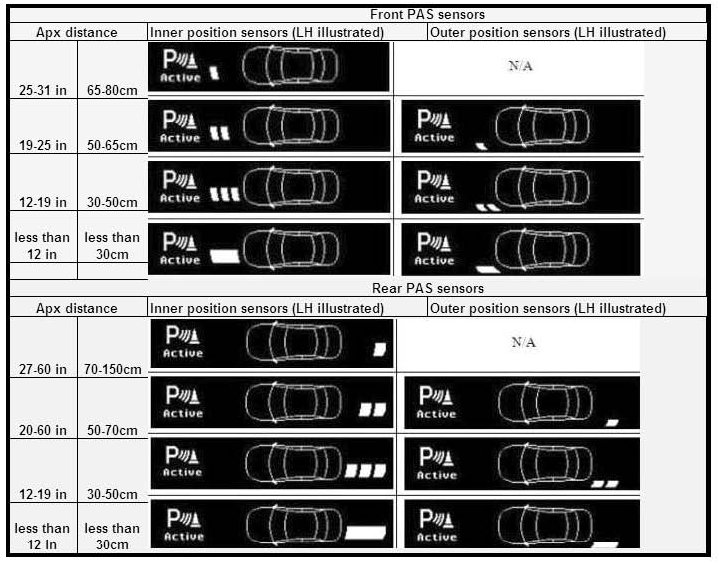

The Illustration shows more details of graphics and warning distances. Please inform the customer if the ICM has been upgraded to the new graphic visualization.
Vehicles with structure week 200720 - 200745 that will have park assist installed as an accessory will need the new SW applications:
Park Assist, Front and Rear P/N 31285412
Park Assist, Rear P/N 31285413
If the old application is loaded the graphics will not be displayed
