Part 2

Park Assist, camera (Continued)

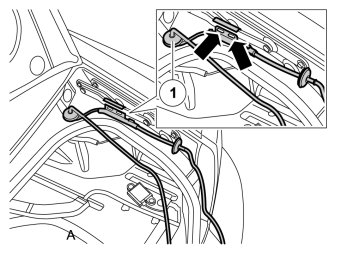

Illustration A




- Take the cable harness with the two rubber grommets from the kit. The rubber grommet (1) with the shorter cable end must go through the trunk lid.

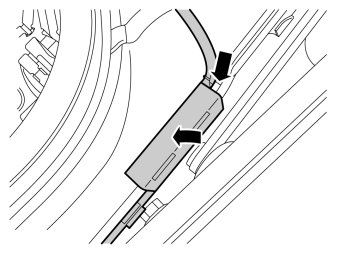

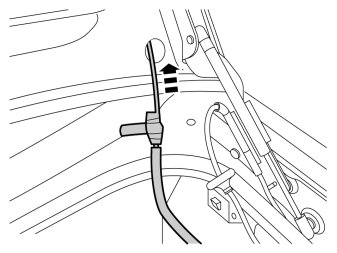

- Hook the cable holder onto the inner lower edge of the hinge section.

Illustration B




- Place the cable holder so that the stop in the upper edge locates in the cut-out on the hinge.
- Press the cable holder so that the upper section engages in the upper edge of the hinge.

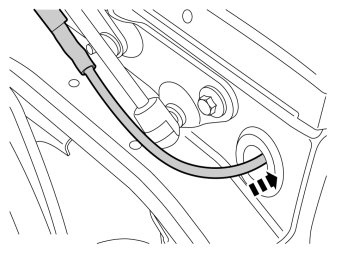

- Insert the longer of the cables in the hole on the rear fender and press the rubber grommet securely into place. Ensure that the primer around the hole edges is not damaged.

Note! Do not damage the rustproofing agent around the hole edges.

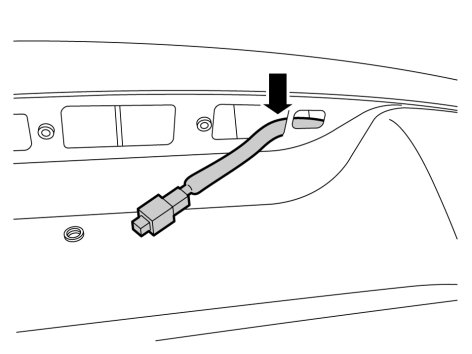

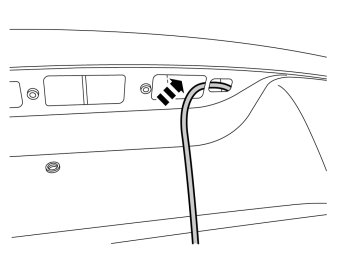

- Insert a wire into the right-hand hole on the trunk lid where the panel for the number plate lighting is, and pull it forwards in the hole on the trunk lid.




- Bind the connector to the shorter cable at the routed wire using tape.
- Pull up the cable through the trunk lid and pull it out through the hole.




- Disconnect the cable from the wire.




- Press the rubber grommet into the trunk lid securely.

Note! Do not damage the rustproofing agent around the hole edges.

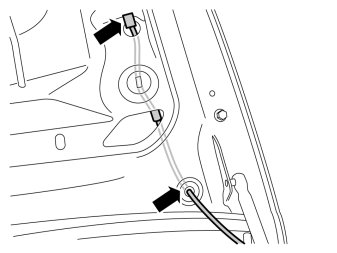

- Take the cable with the edge clip from the oval hole in the trunk lid and press the clip onto the hole edge.

Note! Check that the cable is not over stretched between the trunk lid and the fender when the trunk lid is full open. Adjust the length of the cable in the rubber grommets.




- Pull the cable down from the rubber grommet in the rear fender and along the existing cable harness to the left-hand tail lamp.

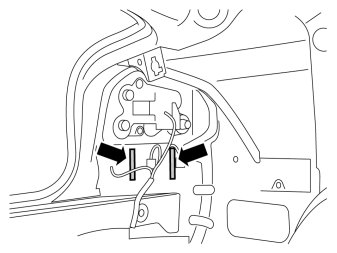

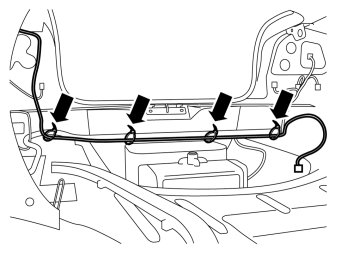

- Clamp the cable using tie straps from the kit as illustrated.

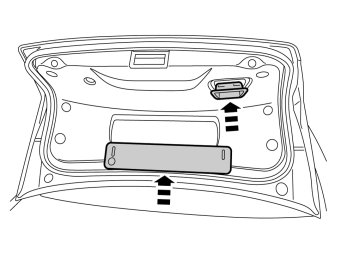

- Take the camera equipped panel for the number plate lighting.

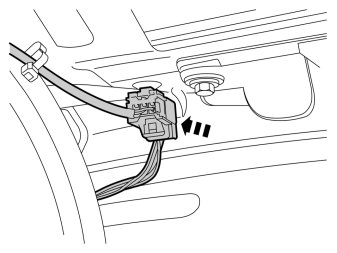

- Connect the connector to the routed cable harness for the reversing camera.
- Guide the cable for the number plate lighting through the hole in the trunk lid.

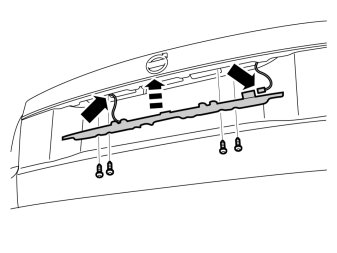

- Reinstall the panel and tighten. Ensure that the cables for the number plate lighting are not trapped.

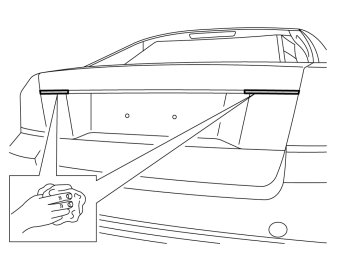

- Use isopropanol and clean the marked surface on the boot lid where the chrome strip tape will sit. Wipe dry.

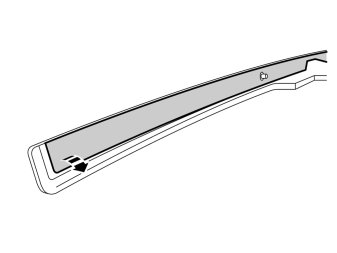

- Take the new trim strip from the kit. Remove the protective film from the adhesive tape.





Note! During installation the underlying surface must be kept at a temperature of at least +15°C (59°F).

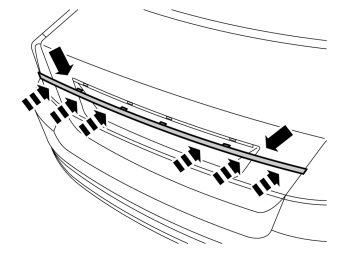

- Insert the trim strip clips in the corresponding holes on the panel. Ensure that the strip's locating pins align with the holes on the trunk lid.
- Press the strip firmly along the entire length of the trunk lid and the panel so that the tape adheres.




- Connect the number plate lighting connector on the inside of the trunk lid.

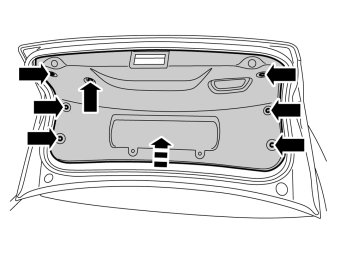

- Reinstall the panel on the inside of the trunk lid.

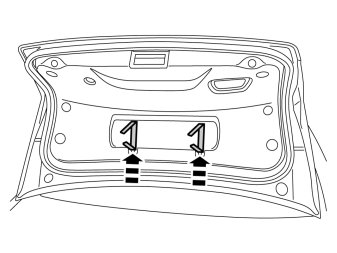

- Reinstall the warning triangle's holder and press the middle pins of the clips in.




- Take the new inner handle from the kit and press it onto the boot lid.
- Refit the warning triangle holder and the warning triangle on the boot lid.

Installing the parking assistance camera (PAC)




- Take the control module from the kit.

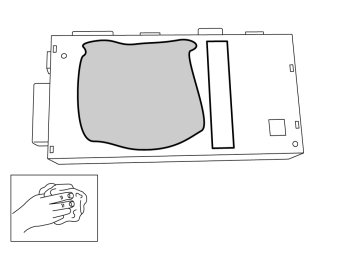

- Clean the two polished surfaces on the control module using isopropanol.
- Wipe dry.




- Take two Velcro strips from the kit and cut them in the middle to create four equal parts.

Steps 47-53 apply to cars without a TRM module.




- Press the Velcro strips two and two.

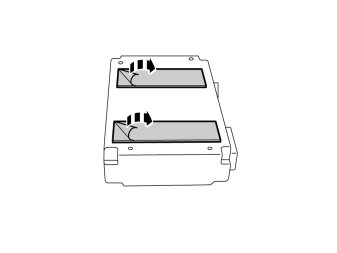

- Remove the protective film from one side of the two attached Velcro strips.

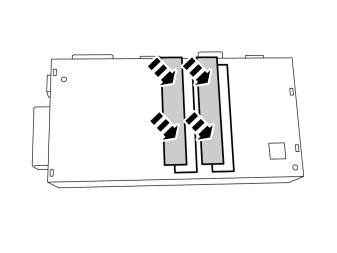

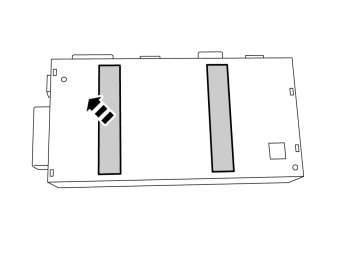

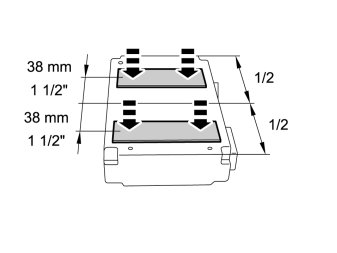

- Press the Velcro strips onto the cleaned surfaces of the control module.

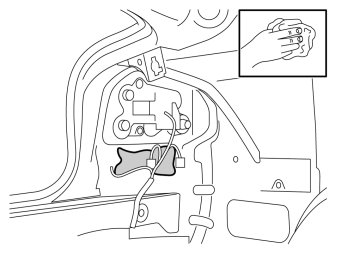

- Clean the surfaces under the tail lights with isopropanol. Wipe dry.

Note! The adapter cable A was included in a previous version of the kit for the parking camera.The adapter cable B was included in a later version of the kit for the parking camera.Both versions are suitable for all cars.

Illustration A

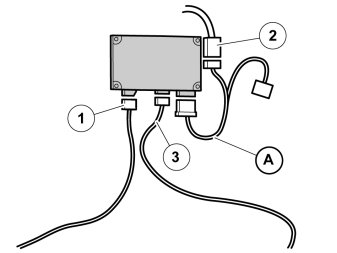

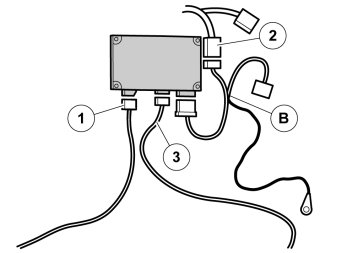

- Connect the previously routed cable harness connector (1) to the right-hand connector on the control module.
- Take the adapter cable A/B from the kit and connect the large green connector to the socket on the control module, as illustrated.

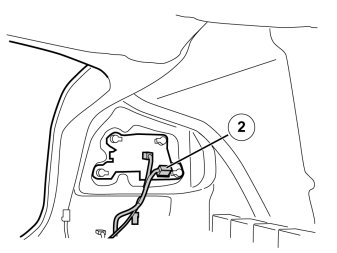

- Connect the connector (2) on the pre-routed, taped cable harness for the power supply under the left-hand tail lamp, to the corresponding connector on the adapter cable.
- Take the long remaining cable harness from the kit and connect the end with the gray connector (3) to the connector in the middle of the control module.
- Clamp the adapter cable's remaining connector using the tie strap from the kit.

Figure B shows adapter cable A





Figure C shows adapter cable B









- Remove the protective film from the installed Velcro strips.

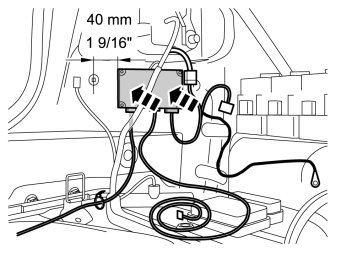

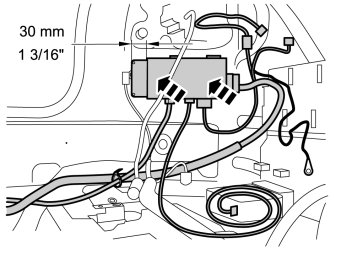

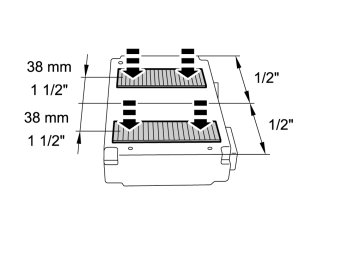

- Press the control module upwards firmly as high as possible on the flat surface under the tail lamp, according to the measurements illustrated.

Steps 54-69 apply to cars with a TRM module.




- Remove the two connectors from the top of the TRM module.
- Remove the TRM module from the Velcro strips on the plate under the rear lamp and place to one side.




- Allow the old Velcro strips to remain in the body.




- Remove the protective film from the Velcro strips.




- Press the Velcro strips on to the cleaned surfaces on the parking assistance camera (PAC).

Note! The adapter cable A was included in a previous version of the kit for the parking camera.The adapter cable B was included in a later version of the kit for the parking camera.Both versions are suitable for all cars.

Figure A shows adapter cable A





Figure B shows adapter cable B

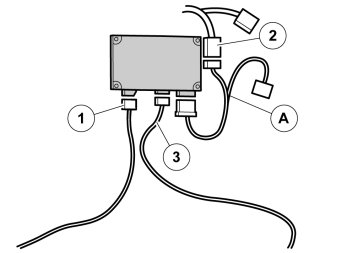

- Connect the previously routed cable harness connector to the right-hand connector on the control module (1).
- Take the adapter cable A/B from the kit and connect the large green connector to the socket on the control module, as illustrated.
- Connect the connector (2) on the pre-routed cable harness for the power supply to the corresponding contact on the adapter cable.
- Take the long remaining cable harness from the kit and connect the end with the gray connector (3) to the connector in the middle of the control module.




- Press the control module firmly onto the existing Velcro straps under the tail lamp.




- Clean the marked surfaces on the control module with isopropanol. Wipe dry.




- Remove the marked Velcro strip from the TRM module.




- Take two Velcro strips from the kit and cut them in the middle to create four equal parts.




- Clean the marked surfaces on the TRM module with isopropanol. Wipe dry.




- Remove the protective film from one of the Velcro strips.

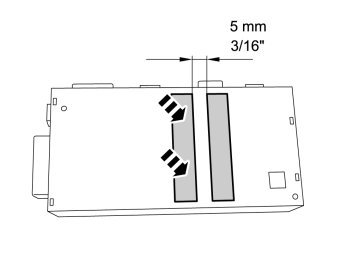

- Press the Velcro strip on to the TRM module beside the other strip , as illustrated.




- Press the two Velcro strips onto the TRM module's two existing Velcro strips.




- Remove the protective film from the Velcro strips.

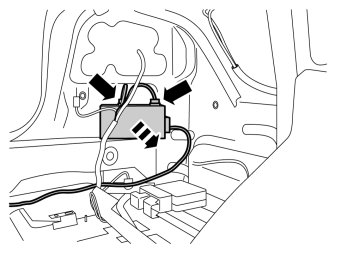

- Press the TRM module onto the control module securely, as illustrated.

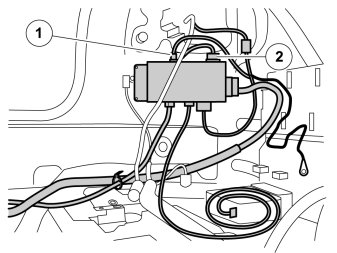

- Connect the remaining green connector (1) on the adapter cable for the power supply to the corresponding socket in the TRM module.
- Connect the remaining gray connector (2), which was removed from the TRM module.
