Home >> Volvo >> 2008 >> S80 AWD L6-3.0L Turbo VIN 99 B6304T2 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Locations >> Location Of Components, Forward Sensing Module (FSM) >> Without Camera

Without Camera

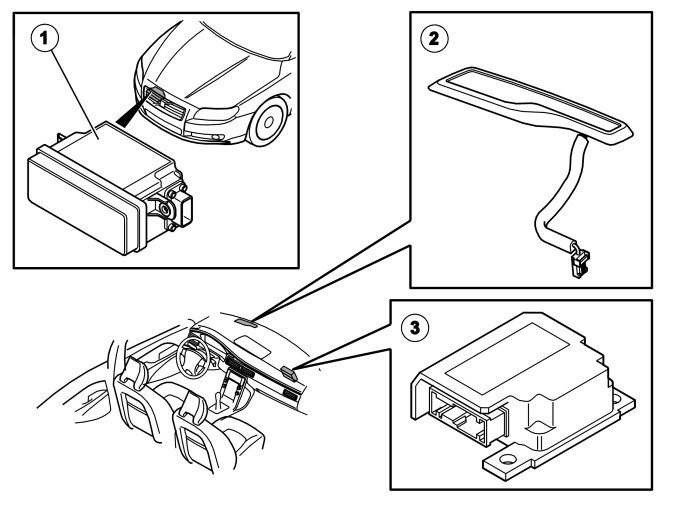

Location of components

Location Of Components:

Overview
1. Forward looking radar (FLR)
2. Indicator, visual collision warning
3. Forward Sensing Module (FSM)
