Ultrasonic Sensor: Service and Repair

Movement sensor





















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Movement sensor

Note! This accessory requires software unique to the car.




- Turn the ignition key to position 0.

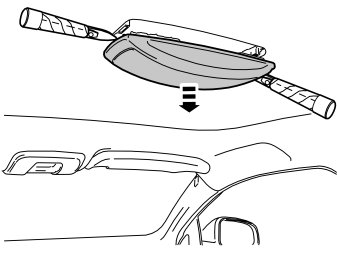

- Carefully prize off the reading lamp in the roof using a weatherstrip tool.

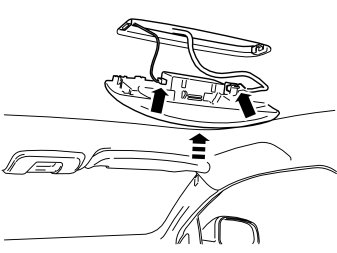

- Detach the cable from the reading lamp and place it to one side. There is a new reading lamp in the kit.

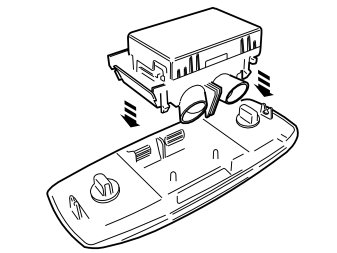

- Take the new reading lamp and sensor from the kit. Press the sensor into the reading lamp. Make sure that all catches have engaged. The connector in the sensor must point to the left and the connector in the lamp to the right when the unit is reinstalled in the car.

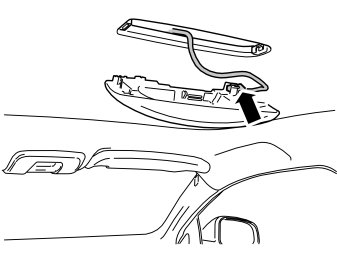

- Plug both connectors into the reading lamp/sensor.
- Reinstall the unit into the roof panel.

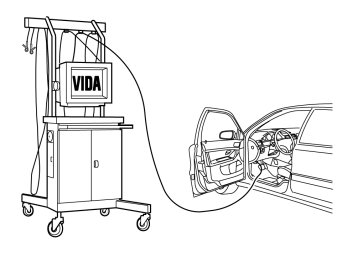

- Program the software as required. Programming and Relearning
