Keyless Entry - KVM May Fail After Downloading Software
Title KVM, may fail after software downloadingRef No US15489.1.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 3669 Func Desc miscellaneous
Status Released
Status Date 2007-03-06
Issue Date 2007-03-06
Reference
Attachment

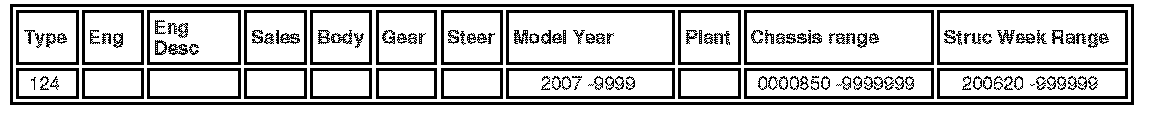

Vehicle Type
CSC
DTC
Text
DESCRIPTION: Internal test have shown that the KVM Keyless vehicle module may fail after Software downloading to the module.
This is due to an internal fault in the module.
PRODUCT MODIFICATION: Under investigation, TJ will be update when more information is available
MATERIAL RETURN: Yes, if requested in the report
TECHNICAL REPORT: Yes, on every case where the module fails after the SW download
SERVICE: Replace the KVM. After a SW downloading to the module, check the functionality of the KVM system, if everything works then no actions need to be done.
VSTG OPERATION NUMBER: N/A
