Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information PHM-B116C09

Condition

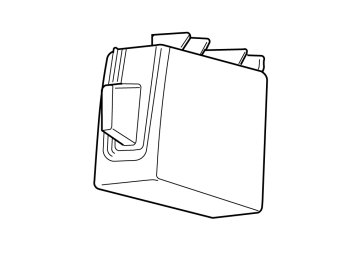

The Phone module (PHM) registers the signal from the external SIM card holder.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- No signal from the external SIM card holder obtained.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Request from mechanic.

Substitute value
- None.

Possible source
- Contact resistance, oxidation or open-circuit in the terminals.
- Faulty SIM card reader.
- Incorrect SIM-card holder.

Fault symptom[s]
- Telephone not working
