Rear Electronic Module (REM)

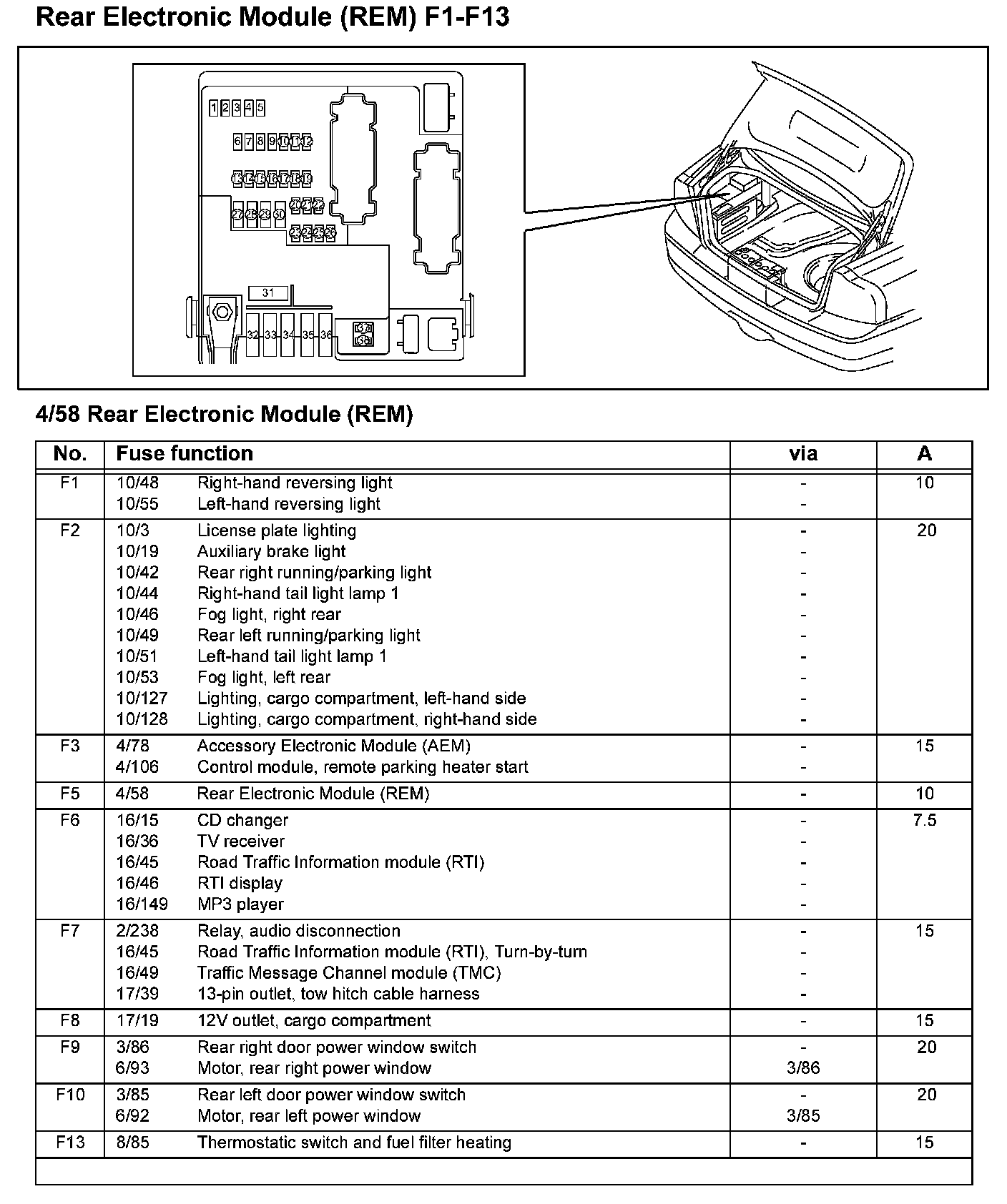

Rear Electronic Module (REM) F1-F13:

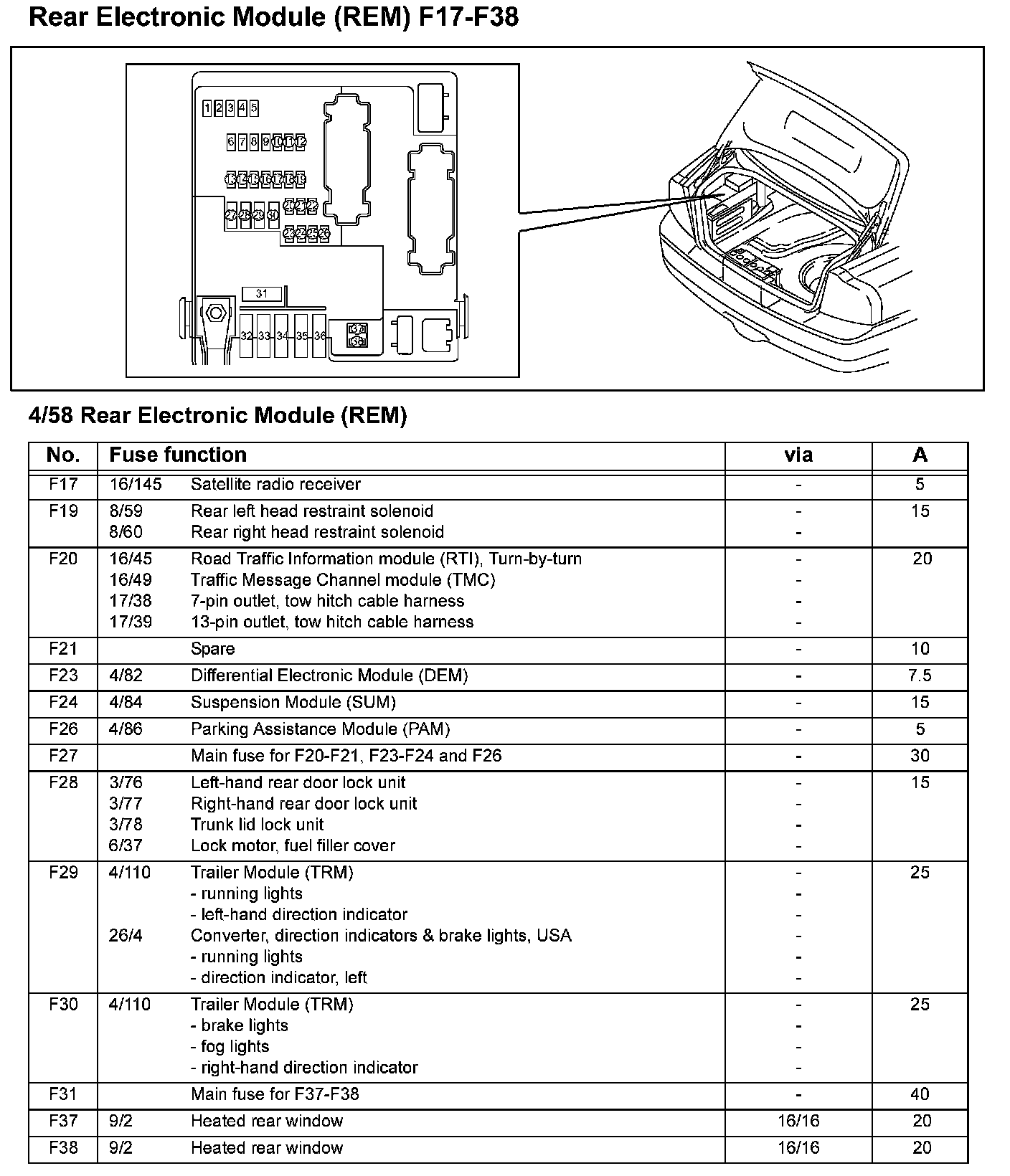

Rear Electronic Module (REM) F17-F38:

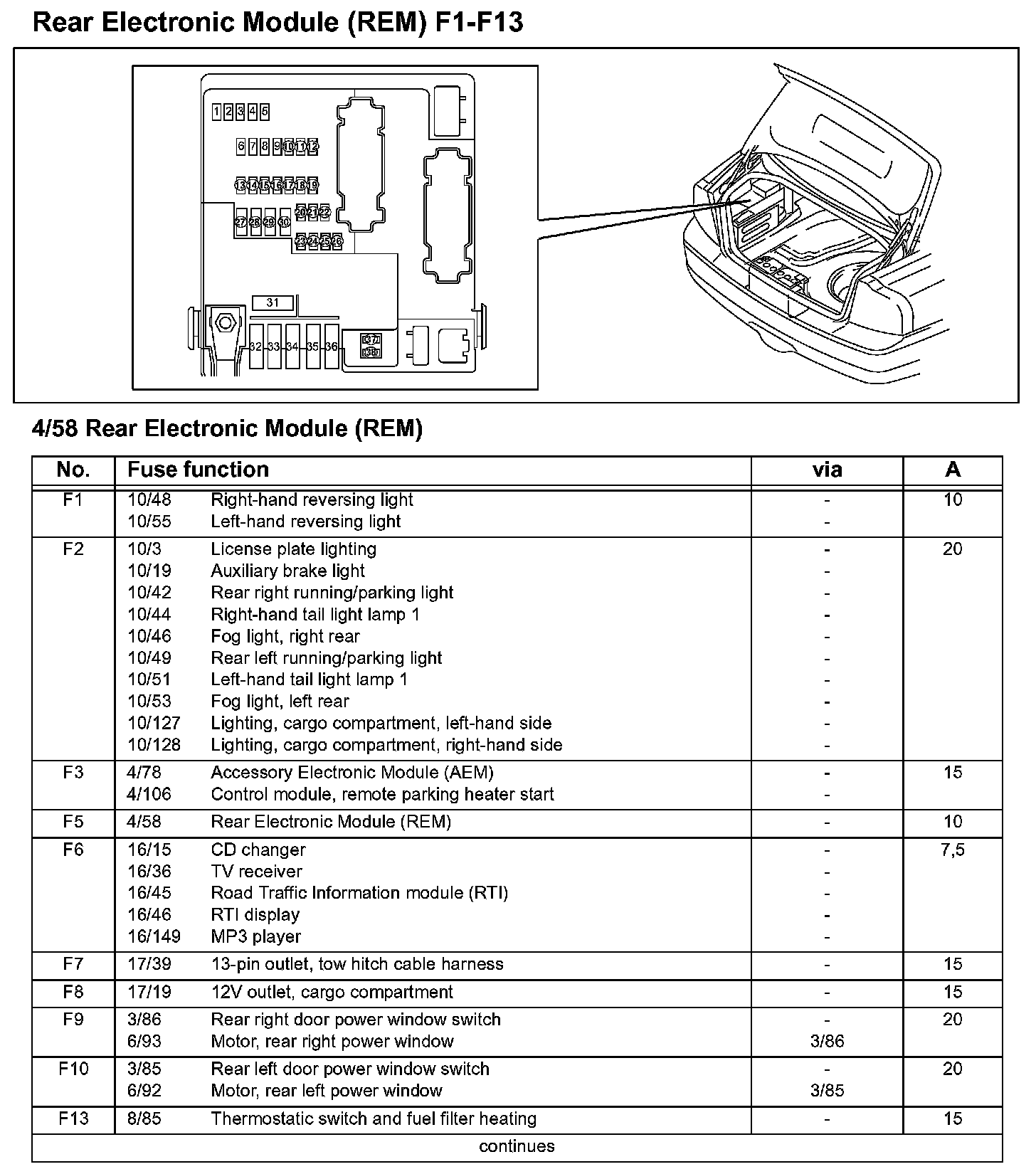

Rear Electronic Module (REM) F1-F13:

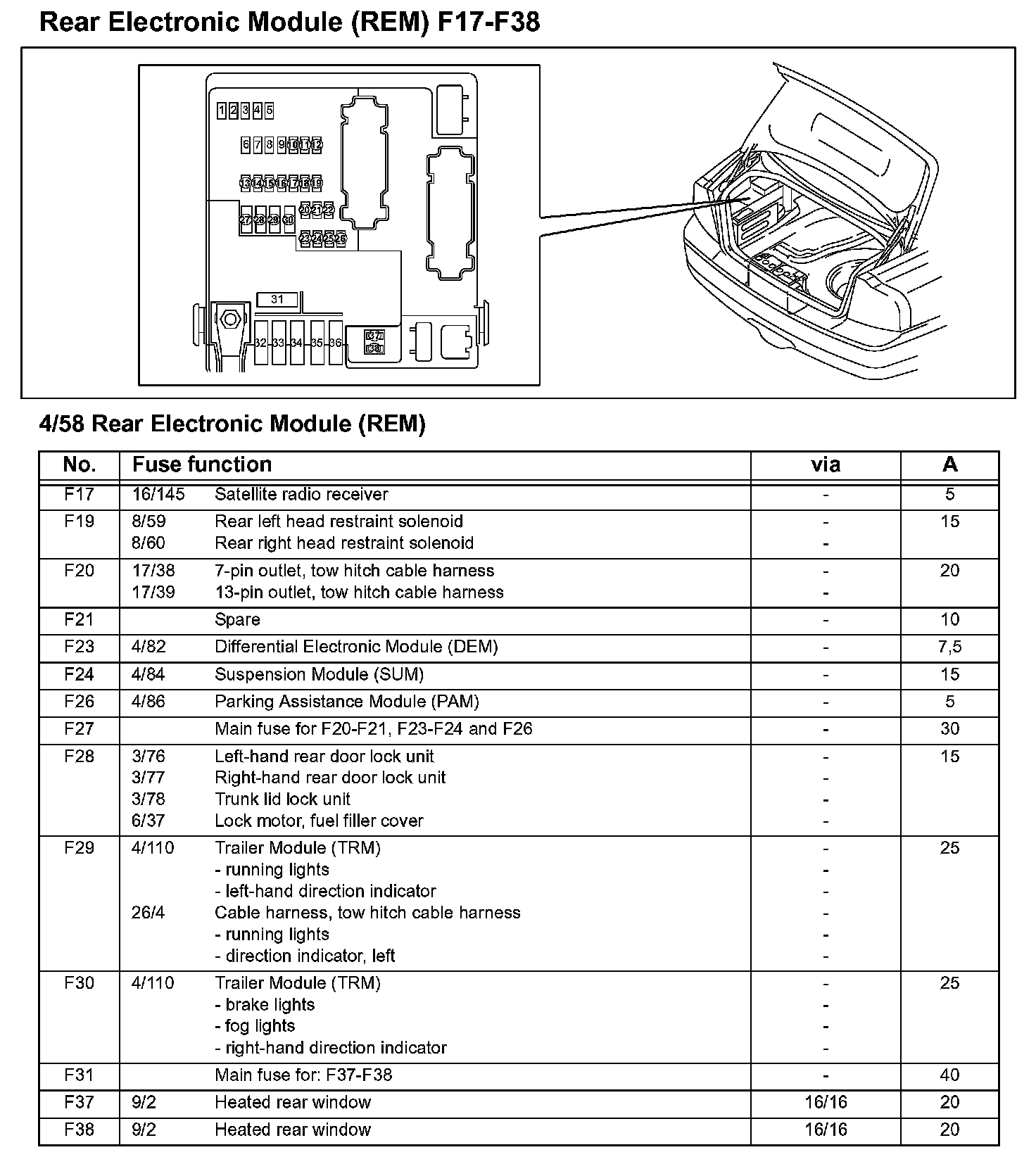

Rear Electronic Module (REM) F17-F38:
