Central Electronic Module (CEM)

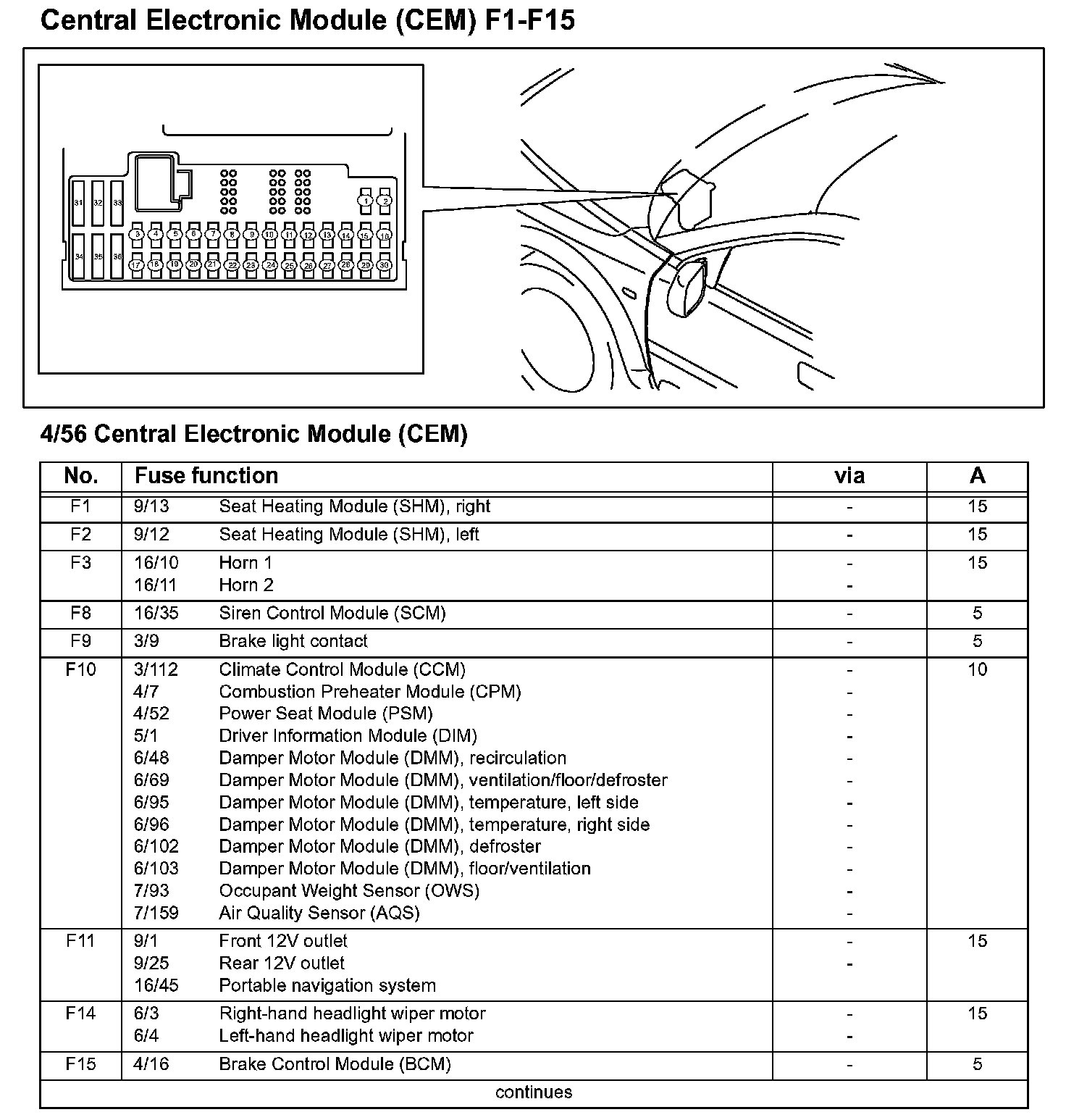

Central Electronic Module (CEM) F1-F15:

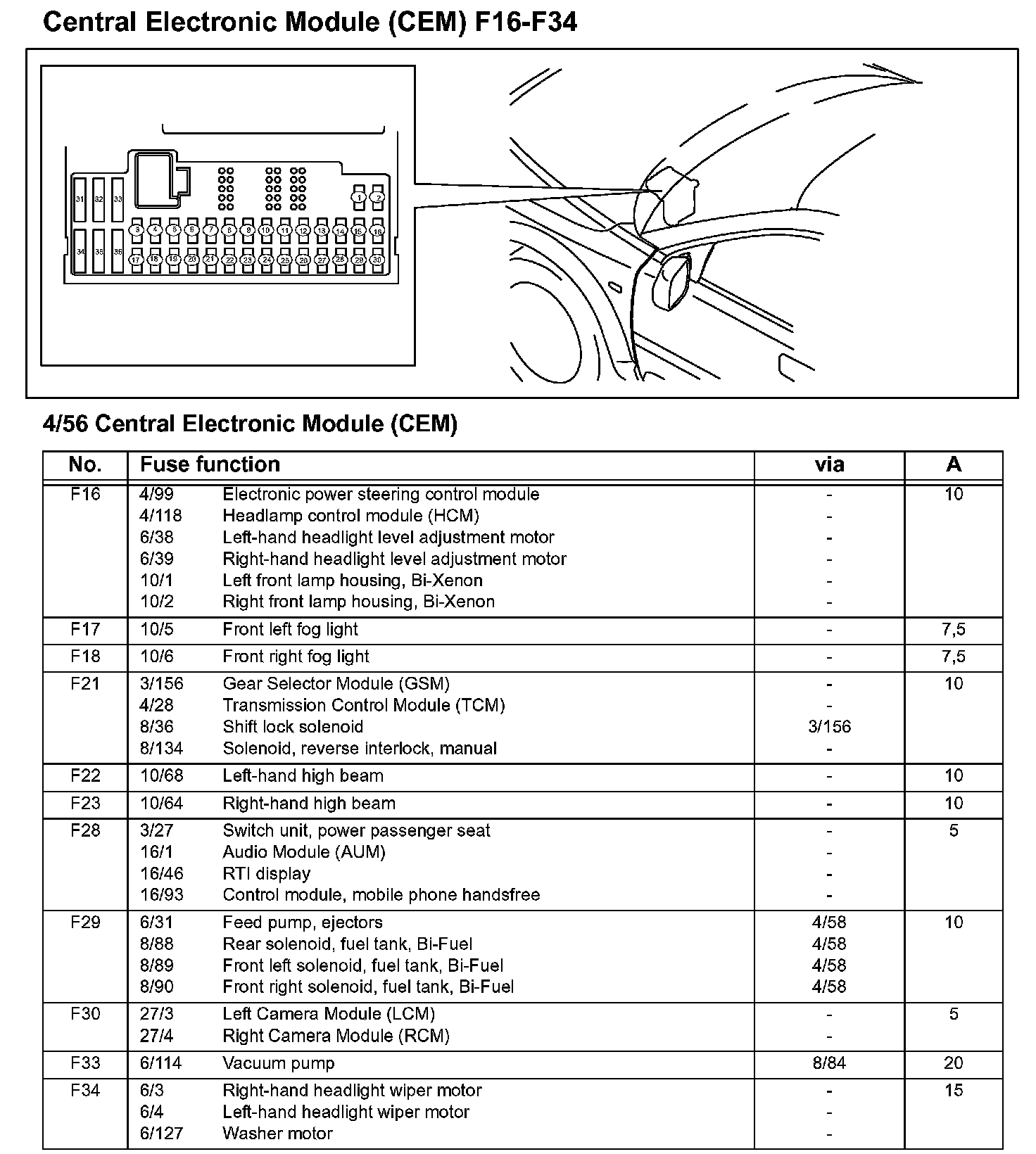

Central Electronic Module (CEM) F16-F34:



Central Electronic Module (CEM) F1-F15:



Central Electronic Module (CEM) F16-F34:
