Reading Off the Test Results / the Fuel Tank Values

Reading off the test results / the fuel tank values

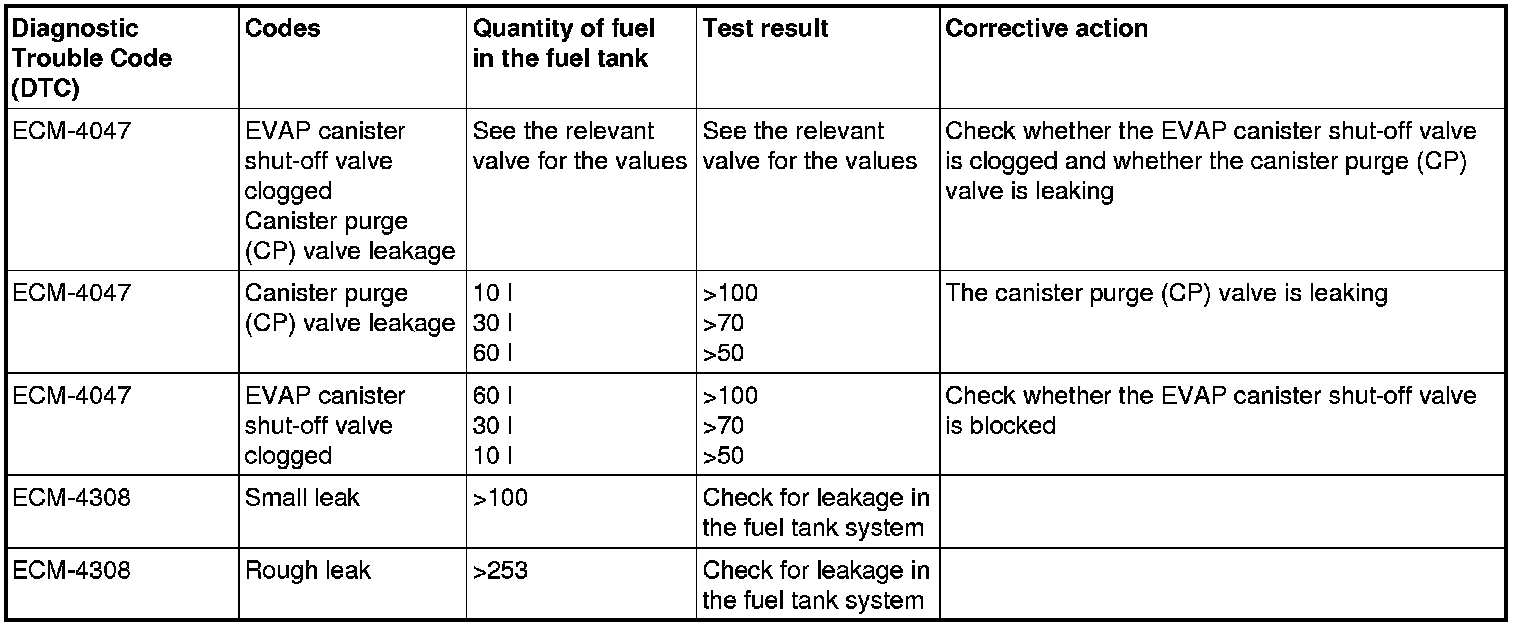

Key for interpreting the results of the read off






Information

Check the EVAP canister shut-off valve if the test results show:
- above 100 at approximately 60 liters of fuel in the tank
- above 70 at approximately 30 liters of fuel in the tank
- above 50 at approximately 10 liters of fuel in the tank.

Check the canister purge (CP) valve if the test results show:
- above 100 at approximately 10 liters of fuel in the tank
- above 70 at approximately 30 liters of fuel in the tank
- above 50 at approximately 60 liters of fuel in the tank.
