Camshaft Position Sensor: Service and Repair

Position sensor camshaft, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

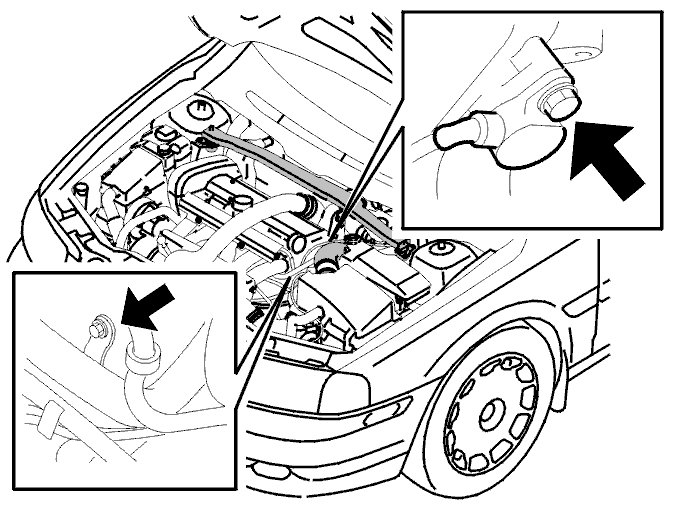

Removing the position sensor




Disconnect the connector from the sensor.

Remove:
- the screw for the sensor
- the sensor.

Installing the position sensor





Install:
- the sensor
- screws. Tighten.
Connect the connector for the sensor.

Finishing
Start the engine. Check the function.
