Electrical Diagrams

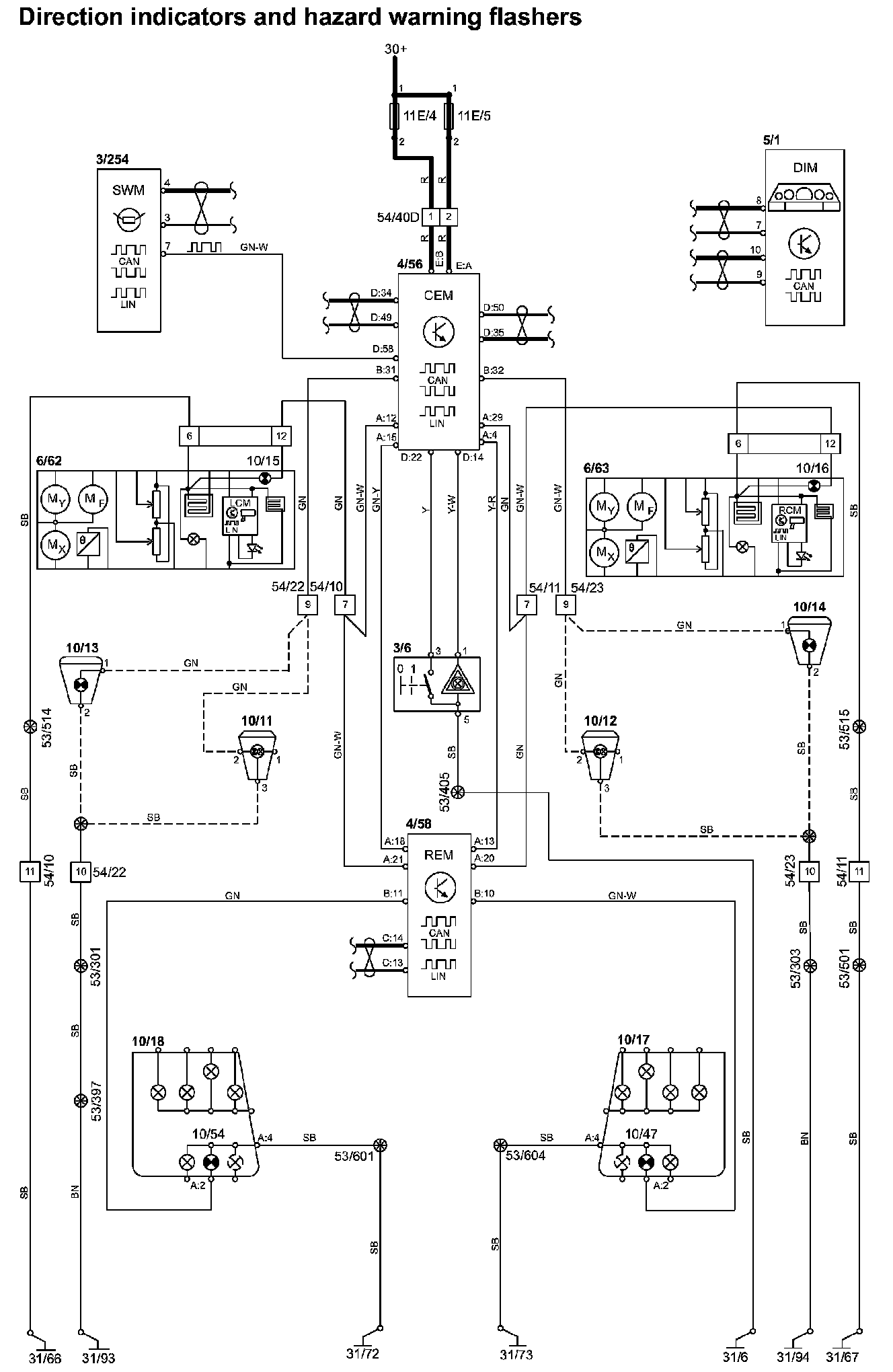

Direction Indicators And Hazard Warning Flashers

Direction Indicators And Hazard Warning Flashers:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
