LIN Data Communication

LIN Data Communication

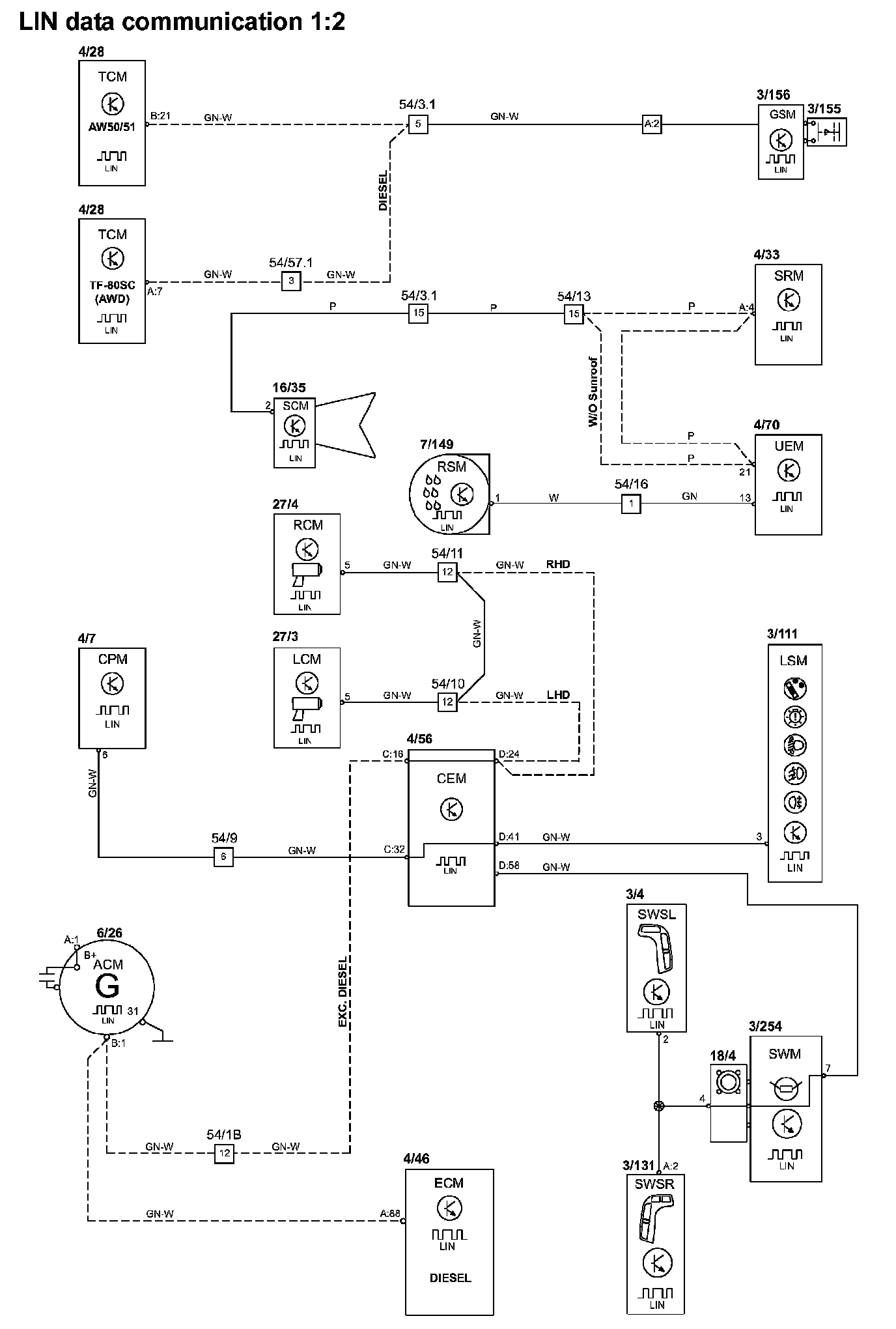

LIN Data Communication 1:2:

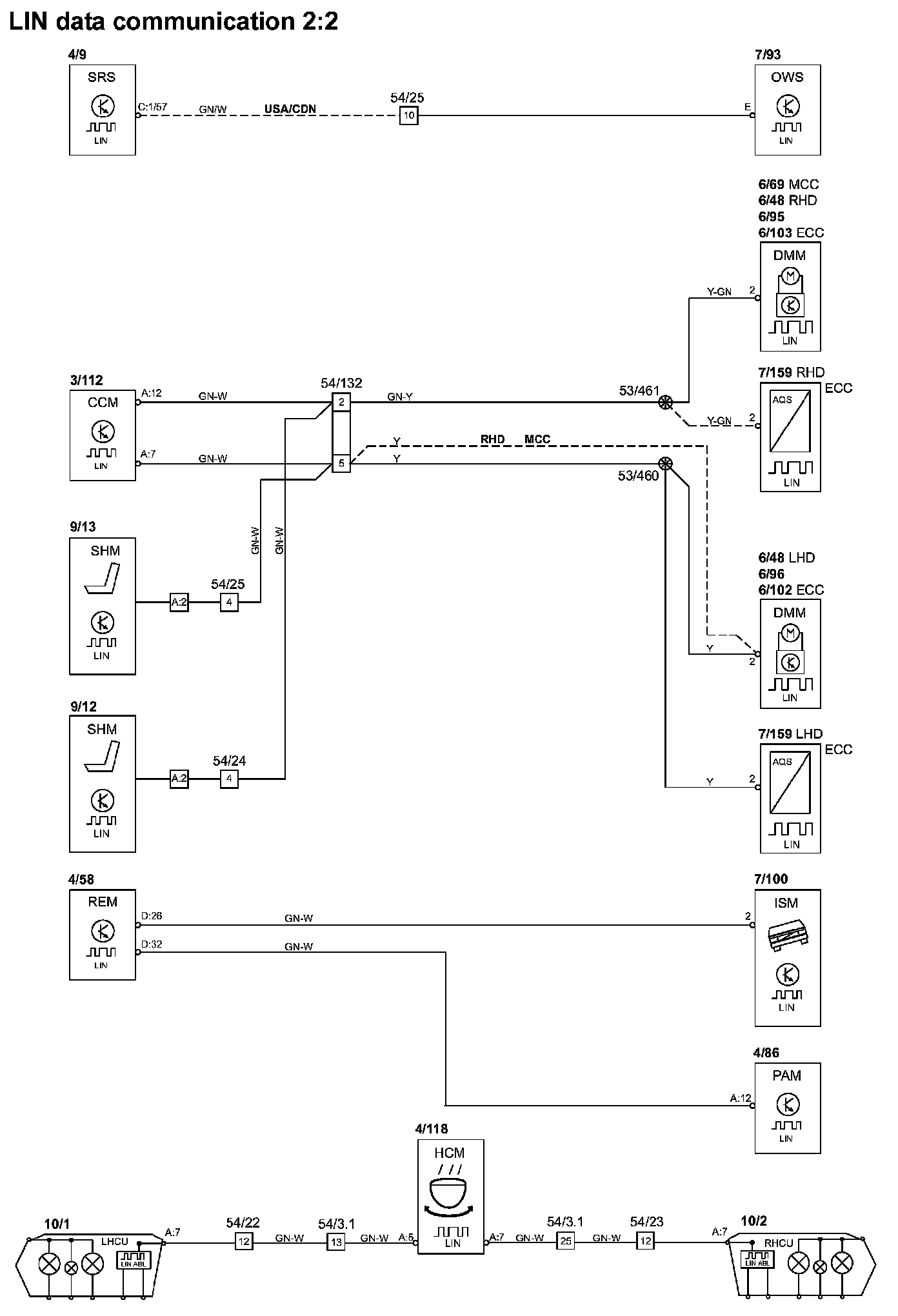

LIN Data communication 2:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
