Electrical Distribution

Electrical distribution Overview

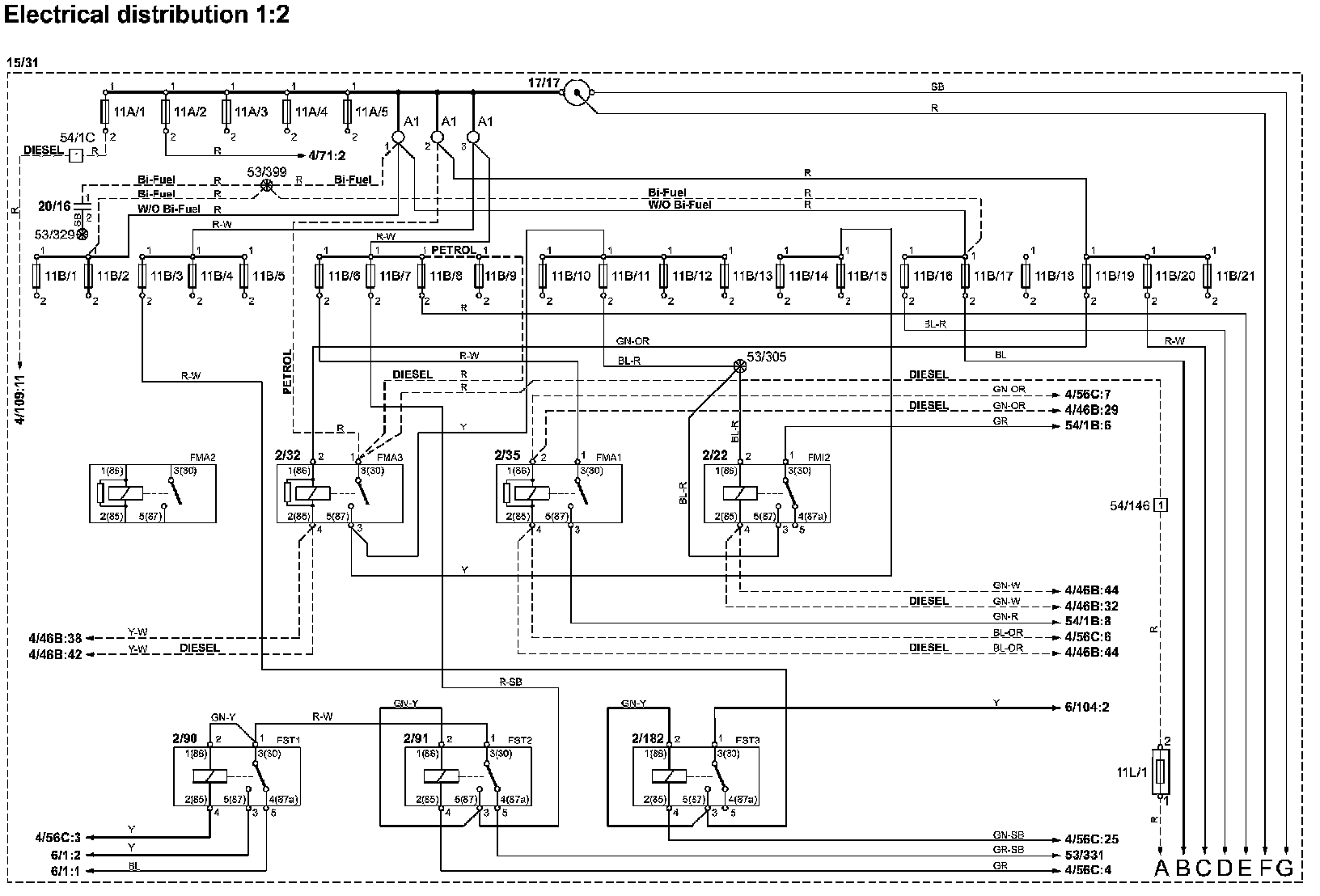

Electrical Distribution Overview 1:2:

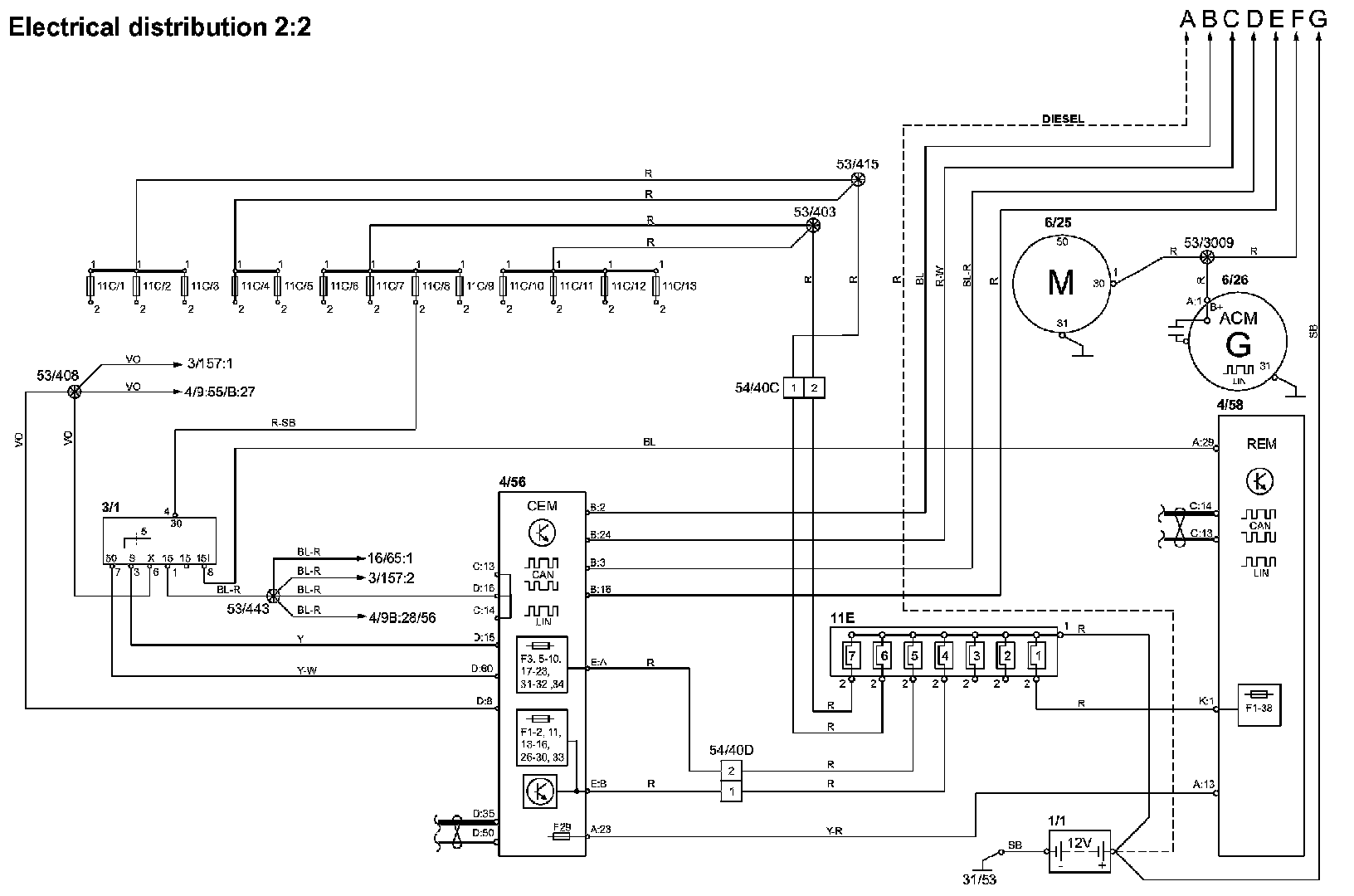

Electrical Distribution Overview 2:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
