LED Center Console, Replacement

LED center console, replacement

Preparatory work

Removing the center console
Remove the center console. See: Center console, replacing Center Console, Replacing.
Place the center console upside down on a clean surface.

Removal

Removing the LED in the center console

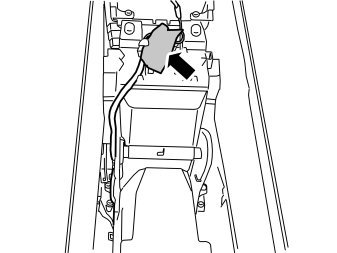

Push the tape to one side and disconnect the connector.

Note! Mark the routing of the cable.

Removing the LED in the center console, continued
Remove the center storage compartment. See: Center console compartment middle, replacing, B5244T5, B5254T2 Center Console Compartment Middle, Replacing

Removing the LED in the center console, continued

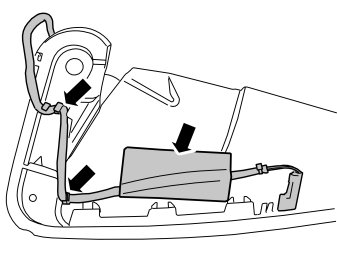

Detach the tape and cable from the side of the insert.

Note! Mark the routing of the cable.

Removing the LED in the center console, continued

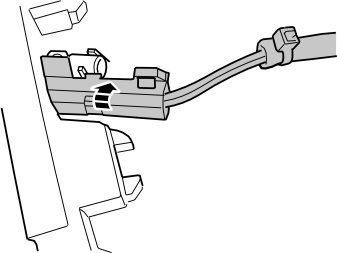

Detach the clip from the LED.
Remove the LED from the lens.

Installation

Installing the LED in the center console

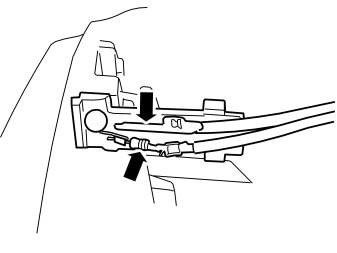

Caution! Place both wires on each side of the divider on the lens, as illustrated.

Install the LED in the lens.

Installing the LED in the center console, continued

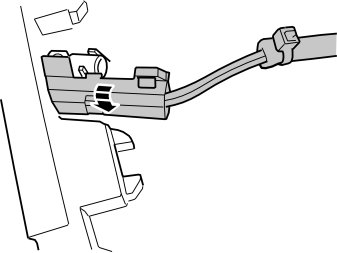

Install the clip.

Installing the LED in the center console, continued




Route and secure the cable according to the previous instructions.

Installing the LED in the center console, continued
Install the center storage compartment. See: Center console compartment middle, replacing, B5244T5, B5254T2 Center Console Compartment Middle, Replacing

Installing the LED in the center console, continued




Connect the connector and install the tape.

Finishing

Installing the center console
Install the center console. See: Center console, replacing Center Console, Replacing.
