Center Console Compartment Middle, Replacing

Center console compartment middle, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing center console compartment





Remove:
- the center console. See: Center console, replacing Center Console, Replacing
- the 4 screws
- storage compartment.

Installation

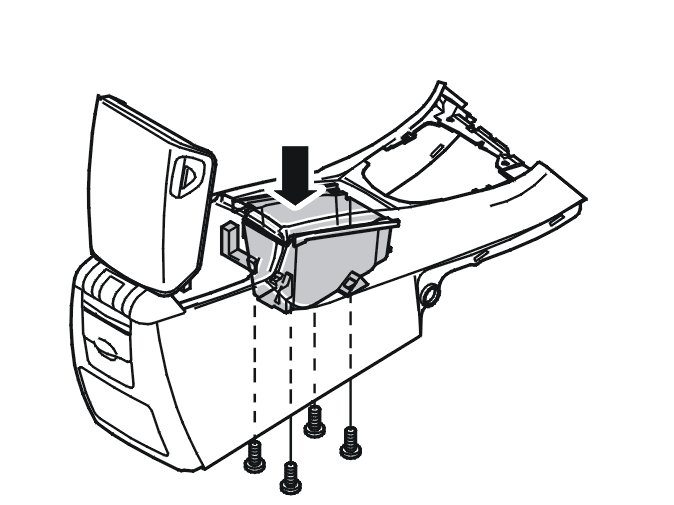

Installing center console compartment

Install:
- storage compartment
- the 4 screws
- the center console. See: Center console, replacing Center Console, Replacing.
