Telephone, Fixed
Telephone, fixed
Telephone, fixed

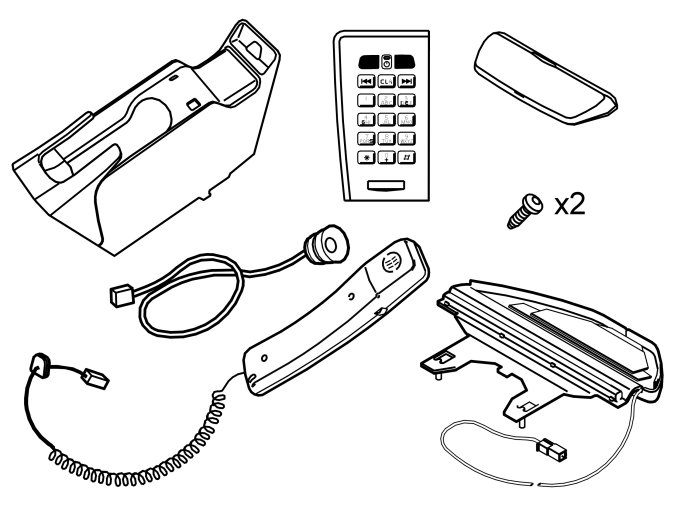

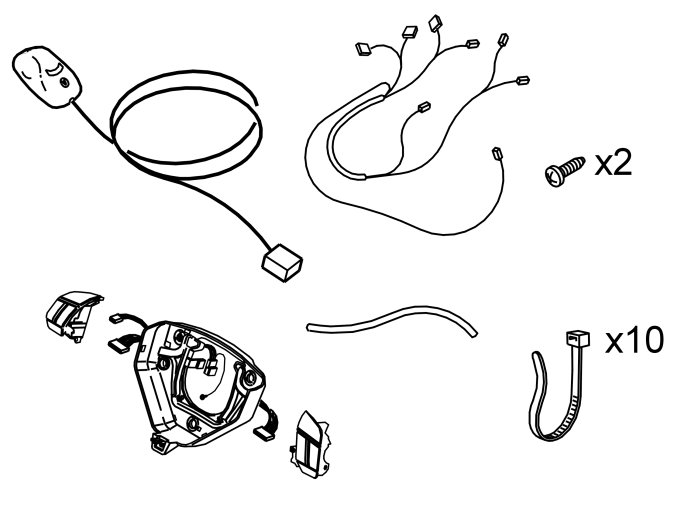

Note! This accessory requires software unique to the car.
Preparations
- Move the front seats to their rearmost, uppermost positions
- Turn the ignition switch to position 0.
- Remove the key from the ignition switch (does not apply to cars with automatic gearbox).
- Disconnect the battery negative lead.
Note! Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.
- Detach the rear edge of the gear selector lever cover together with the boot until the two clips release. Use a plastic weatherstrip tool. Remove the gear selector lever cover and the boot. Pull the panel up until the four clips at the sides release.
- Engage the handbrake and move the gear selector lever towards the rear.
- Rotate the panel to the left for better access.
- Remove the two screws holding the bracket with the radio and dashboard environment panel in the centre console.
- Remove the bracket with dashboard environment panel and the radio from the centre console: Pull the lower edge out and downwards until it releases from the mounting at the upper edge. Then fold backwards.
Note! Do not damage the removed components or the surrounding panels.If necessary, the panel around the gear lever selector can be removed for additional space. The panel is secured with four catches on the underside along the boot.
- Disconnect the connectors from the radio and dashboard environment panel. Place the unit to one side.
- Remove the panel from the gear change lever boot. First press in the four catches around the panel. Then pull the panel up.

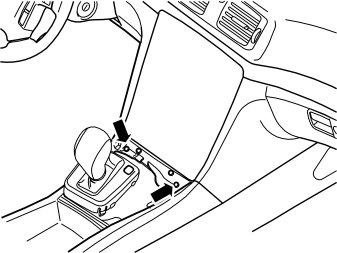

- Remove the two screws in the front mounting of the centre console.
- Remove the right and left-hand side centre console panels (1). Turn the clip at the rear edge of the panel through 90°. Pull the rear edge of the panel outwards and backwards
- Remove the two screws on the panel (2) under the glove compartment. Remove the panel. Then pull the panel downwards / backwards at the rear edge, it is secured by three clips
- Remove the sill moulding (3) on the right-hand side. Pull the front edge of the sill moulding back to release it. Then pull the moulding upwards.
- Remove the panel on the right-hand end of the dashboard.
- Remove the rubber mat in the bottom of the storage compartment in the centre console and remove the two screws underneath. The rubber mat shall not be re-used.
- Remove the boot for the handbrake lever by carefully prizing it away all around using a plastic weatherstrip tool. Following which, thread the boot over the handbrake lever.
- Remove the panel in the rear edge of the centre console. Carefully prize off the panel using a plastic weatherstrip tool.
- Remove the holder in the panel (ashtray, if applicable) from the panel. First bend the catches on both sides at the upper edge downwards. Use a small screwdriver. Pull out the holder by the upper edge.
- Disconnect the connectors from the reverse of the holder (ashtray, if applicable). Place to one side.
- Unplug the connectors to the 12V socket.

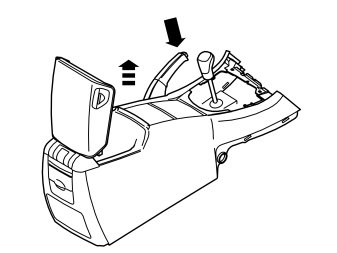

- Lift out the centre console. Do not damage the handbrake lever trim, wind tape around it to avoid chafing.
- Wind tape around the trim on the handbrake lever to avoid chafe marks.
- Lift out the centre console.
Installing the microphone in the rear view mirror
- Remove the rear view mirror cover. Pull the top edge of the cover forward and down
- Remove the microphone dummy from the rear view mirror.
- Install the new microphone (from the kit) in the rear view mirror
- Install the cable from the microphone between the window and the headlining. Use butyl tape. Route the cable towards the right-hand A-post.
Installing the antenna
- Fold down the cover (1) on the front interior lighting by carefully pulling down the front edge of the cover.
- Press the catches (2) together. Detach the front edge of the panel. Remove the panel.
- Remove the bracket (1) and mirror. First remove the screws (2) and bend the tabs (3) forward
- Detach the clips (4) by pressing the clips inwards. Detach one side at a time
- Pull the bracket downwards so that it releases from the mountings. Allow the bracket to hang loosely from the wiring.
- Remove the screw (1). Remove the mirror from the bracket
- Disconnect the existing connector.
- Install the new antenna. Carefully bend the headlining downward and slide the antenna backward and inwards. Align the antenna lugs (1) with the grooves in the bracket (2)
- Insert the cable at the inside of the front edge of the headlining. Route the cable out towards the right-hand A-post
- Secure the cable using butyl tape
- Remove the rubber strip (1) at the front edge of the front door on the right hand side
- Remove the A-post panel. Pull out the upper edge of the panel to release the two clips
- Remove the spring (2) from the upper clip holder
- Pull the panel straight up/back.
- Route the wiring down from the headlining and along the right-hand A-post
- Tape the wiring onto the existing cable harness at points (1).
Warning! Ensure that the inflatable curtain is not trapped and does not catch on the wiring.
- Bend the headlining back
- Reinstall the bracket. Tighten the rear view mirror
- Reinstall the cover on the rear view mirror.
- Take the cable harness from the kit. Position the cable harness in the radio compartment
- Route the cable to the privacy handset (1), with the round black connector, from the centre console and on down alongside the air ducts.
- Continue to route the cable along the centre console, under the carpet, up through the carpet and into the rear end of the centre console.

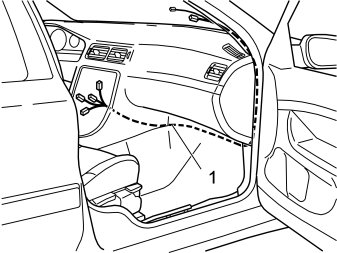

- Route the cable harness (1) to the antenna and the microphone down along the right-hand side of the centre console, along the air ducts
- Continue to route the cable harness inside the carpet on the right hand side of the centre console and via the inside of the front edge of the carpet. Route the cable harness along the right end of the dashboard and up to the previously routed connectors from the antenna and microphone
- Connect the relevant connector to the antenna and microphone. Wrap foam tape around them and clamp securely
- Reinstall the A-post panel. Reinstall the panel on the right-hand end of the dashboard
- Reinstall the rubber strip in the door opening.
- Reinstall the sill panel.
- Reinstall the panel under the glove compartment.
Installing the loudspeakers in the head restraint
- Remove the head restraint on the driver's seat. Press in the two catches (1) at the same time. Pull the head restraint (2) up.
- Remove the upholstery from the head restraint. If the catch is missing from the zip fastener, detach the clamps at the ends of the zip fastener. Then pull the zip fastener apart.
- Remove the backing from the double-sided adhesive tape on the reverse of the loudspeaker. Secure the loudspeaker in the cut out on the head restraint
- Route the cable down into the existing channel in the head restraint. Continue along the support leg
- Tape the cable in the channel on the head restraint
- Reinstall the upholstery on the head restraint.
- Close the zip fastener. Zip fastener missing: use a suitable zip fastener catch from the kit
- Secure the ends using staples
- Push the ends of the zip fastener inside the upholstery.
- Route the cable down inside the upholstery and down under the seat. Use a piece of wire or something similar
- Position the connector at the front edge of the seat
- Reinstall the head restraint
- Secure the cable onto the member under the seat using tie straps.
- Remove the cover for the seat mounting from the right hand front mounting for the driver's seat.
- Route the cable (1) from the centre console, along the air ducts and forward to the cable (2) from the loudspeaker in the head restraint

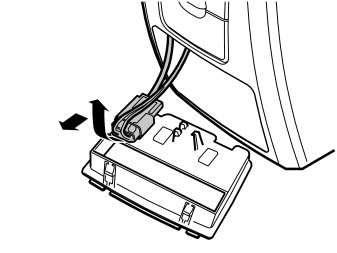

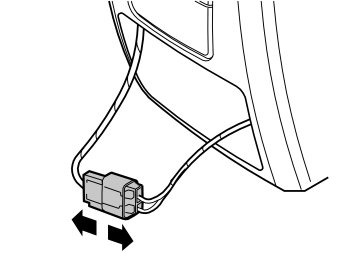

- Connect both the connectors to each other. Secure the connectors for the SIPS pipe under the front edge of the seat
- Adjust the length of the cables so that the seat moves freely between its end positions without stretching the cables
- Hide the excess cable under the carpet
- Reinstall the cover for the seat mounting.
Installing the privacy handset
- Turn the centre console upside down and place it on a surface which cannot cause any damage.

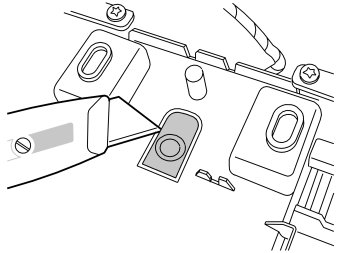

- Cut out along the embossing in the bottom of the storage compartment to the rubber grommet for the cable to the telephone handset.
- Smooth off the edges.

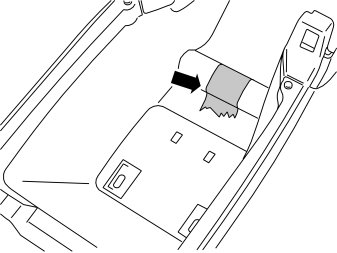

- Apply a strip of tape in the middle of the raised portion in the storage compartment as illustrated.
Illustration A
- Insert a steel wire into the hole on the spring clip in the hole for the screw to the mounting.

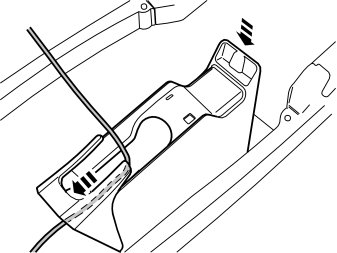

- Guide the handset holder down in the bottom of the compartment so that the catches engage the corresponding holes in the bottom of the compartment.
Illustration B

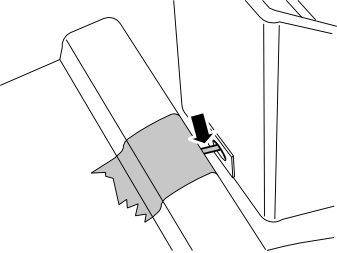

- Press down with the wire so that the tape is perforated.

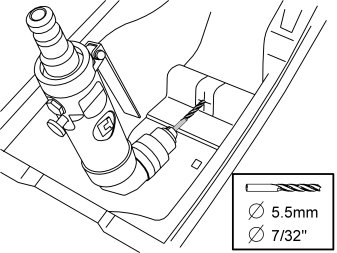

- Take a -5.5 mm (7/32" ) diameter drill bit and drill out the hole according to the marking in the strip of tape.
- Remove the swarf and smooth off the edges.

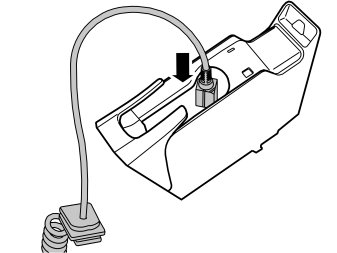

- Take the handset holder and the handset out of the kit. Thread the black connector down on the cable to the handset through the handset holder.

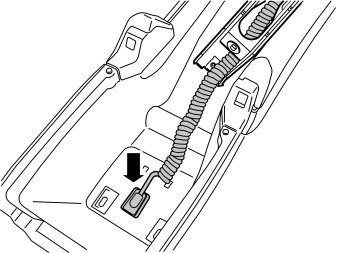

- Press in the rubber grommet with the cable pointing forward in the cut-out hole.

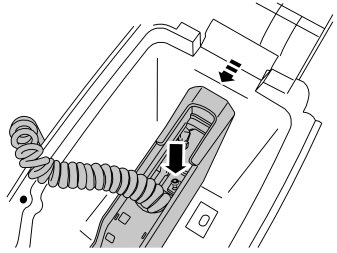

- Press in the handset holder from the kit in the bottom of the storage compartment.

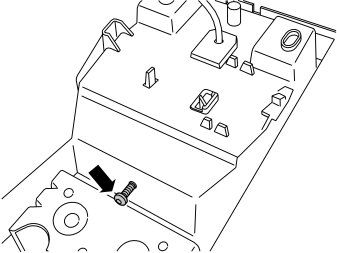

- Tighten with a screw from the kit.
- Take a new screw from the kit and tighten the handset holder in the bottom of the storage compartment.
- Reinstall the centre console in its position.
- Remove the tape on the handbrake lever.

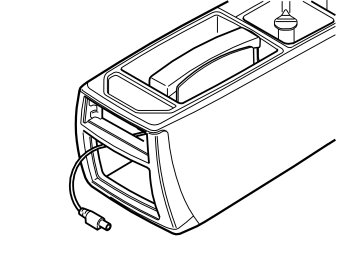

- Route the cable for the telephone handset into the centre console.
- Tighten the centre console at the front and rear edges.
- Reinstall the 12 volt socket panel

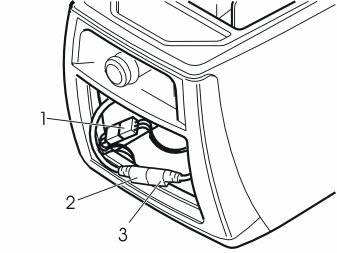

- Connect the connectors (1) for the 12 volt socket
- Connect the pre-routed cable (2) from the centre console to the handset cable (3)
- Reinstall the ashtray, or the holder and cover. Press the cable for the telephone into place on the reverse of the ashtray holder.
- Reinstall the centre console panels.
Installing the keypad in the centre console
- Remove the three screws at the upper edge of the surround for the unit and radio and dashboard environment panel.
- Remove the surround from the unit. Pry off the catches along the vertical and lower sides of the surround. Pull off the surround. The catches are thin and are easily broken. Take care.
- Remove the four screws on the reverse of the dashboard environment panel. Remove the dashboard environment panel from the radio and bracket.
- Remove the radio from the unit. Carefully pry off the catches along the vertical sides and then pull straight out. The catches are thin and are easily broken. Take care.
- Remove the compartment in the bracket. Press in the catches at the top and bottom side. Press the compartment out. This will not be used again.
- Press the phone keypad into place where the compartment was located. Ensure that all the catches have engaged.
- Reinstall the radio and the climate control panel in the centre console
- Reinstall the surround for the unit.
Connect:
- the green connector (1) from the new cable harness for the radio
- the previously disconnected green (GN) connector (2) from the radio to the green (GN) connector (3) in the new cable harness
- the connectors (4, 5) in the new cable harness to the keypad (6)
- the existing connectors (previously disconnected) to the radio
- Reinstall the unit in the centre console. Tighten the centre console. Use the two screws
- Reinstall the panel around the gear selector lever
Installing the keypad in the steering wheel
- Turn the steering wheel 90° as illustrated so that the holes on the reverse of the steering wheel are accessible.
- Insert a screwdriver in the hole on the rear edge of the steering wheel, at right angles to the rear surface of the steering wheel
- Insert the screwdriver as far as possible to find the end of the locking spring (1).
- Position the end of the screwdriver on top of the spring clip
- Pry the screwdriver upwards towards the upper edge of the hole (2) until the spring releases and one side of the steering wheel module springs out and releases from the mounting
- Turn the steering wheel 180° and repeat the operation on the other side.
- Turn the steering wheel to a neutral position.
- Fold out the steering wheel module.
- Unplug the two connectors (1) to the airbag transmitter cables.
Note! The connectors are tightly secured. Do not use tools to disconnect the connectors.
- Place the steering wheel module to one side.
Remove:
- the screw (1) and detach the ground lead.
- the horn connector (2) and keypads.
- the three screws (3) and lift out the horn ring (4).
Applies to cars with pre-routed wiring
- Press in the catch (1) on the connector for the right dummy button
- Remove the connector from the dummy button.
- Remove the screw (1) in the dummy button on the right hand side of the horn ring
- Press in the catch (2). At the same time pull the dummy button from its socket. Place it to one side
- If there is pre-routed wiring and connectors, continue to step 59.
- If there is no existing wiring and connectors the horn ring must be replaced. There is a new one in the kit. Continue with steps 57 and 58.
Applies to cars without existing wiring
- Remove the screw (1) in the dummy button on the left hand side of the horn ring
- Press in the catch (2). At the same time pull the dummy button from its socket.
Note! Take care of the dummy button, it will be reused.
- Place the old horn ring to one side. The horn ring will not be reused.
Applies to cars without existing wiring
- Take the new horn ring from the kit
- Insert the new left dummy button in its socket on the new horn ring
- Press the dummy button until the catch engages
- Install the screw. Tighten the dummy button
- Connect the connector to the dummy button.
- Take the remote control keypad and insert it in its socket
- Press the dummy button until the catch engages
- Install the screw. Tighten the dummy button
- Connect the connector to the keypad.
- Reinstall the horn ring. According to step 54 in reverse order. Ensure that the three springs are correctly positioned. Check that the ground lead is not trapped.
- Tighten the screws alternately to 6.5 Nm (5 lbf.ft.).
- Reinstall the ground lead. Tighten.
- Plug in the horn connector and keypads.
- Check the function of the horn ring by pressing around the entire edge.
- Check that the two springs (1) are correctly positioned.
- Press the two connectors for the sender cables for the airbag into the steering wheel module.
Note! The cables must be routed through the existing holder (2).
- Insert the two lugs on the reverse of the steering wheel module in the two springs. Ensure that the sender wiring is unimpeded
- Press the steering wheel module firmly into its mountings. Two clearly audible clicks should be heard.
Finishing work
- Turn the ignition key to position II.
- Reconnect the battery negative lead
- Programme the software in accordance with the service information in VIDA.
