Engine Compartment Distribution Box

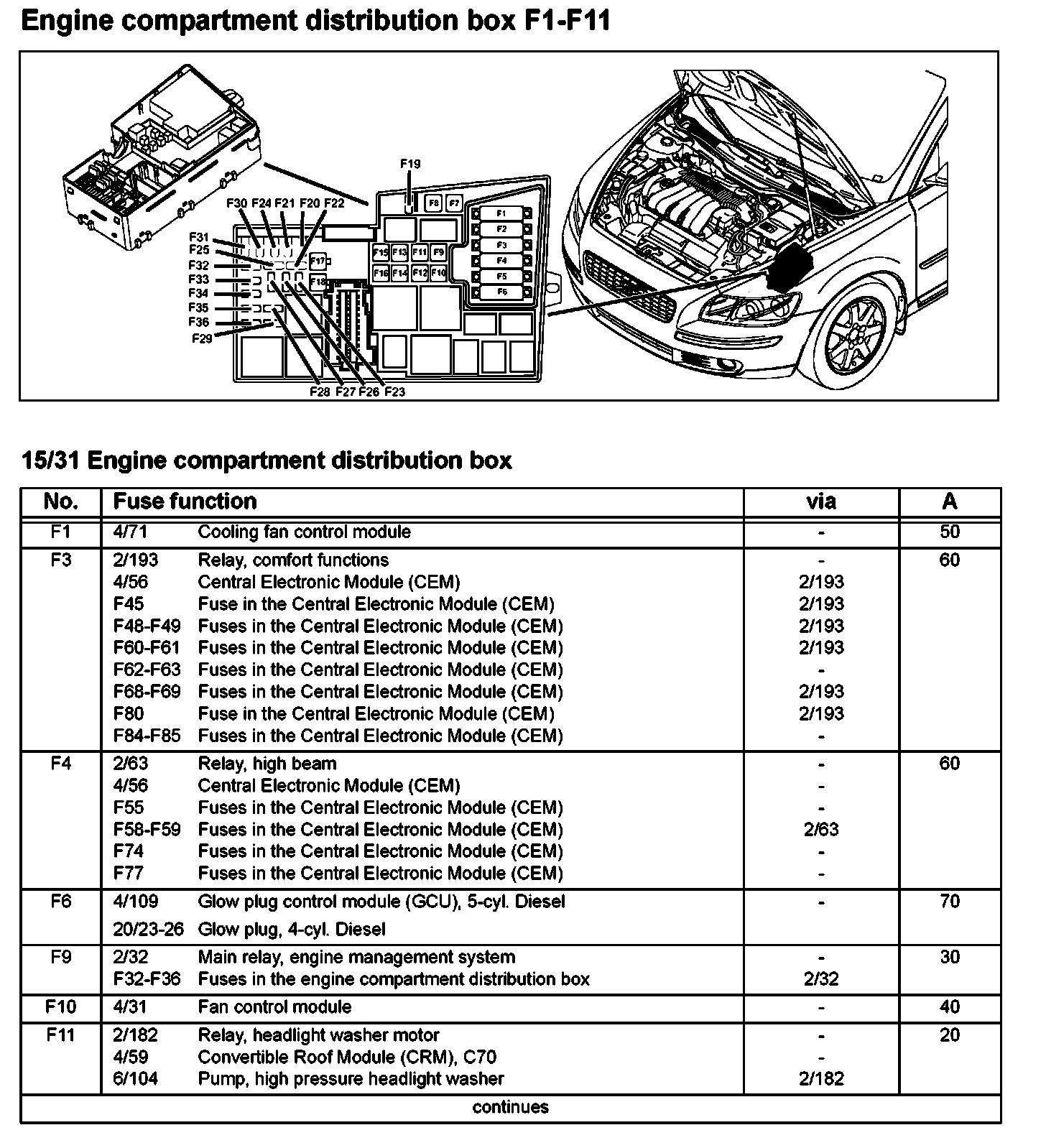

Engine Compartment Distribution Box F1-F11:

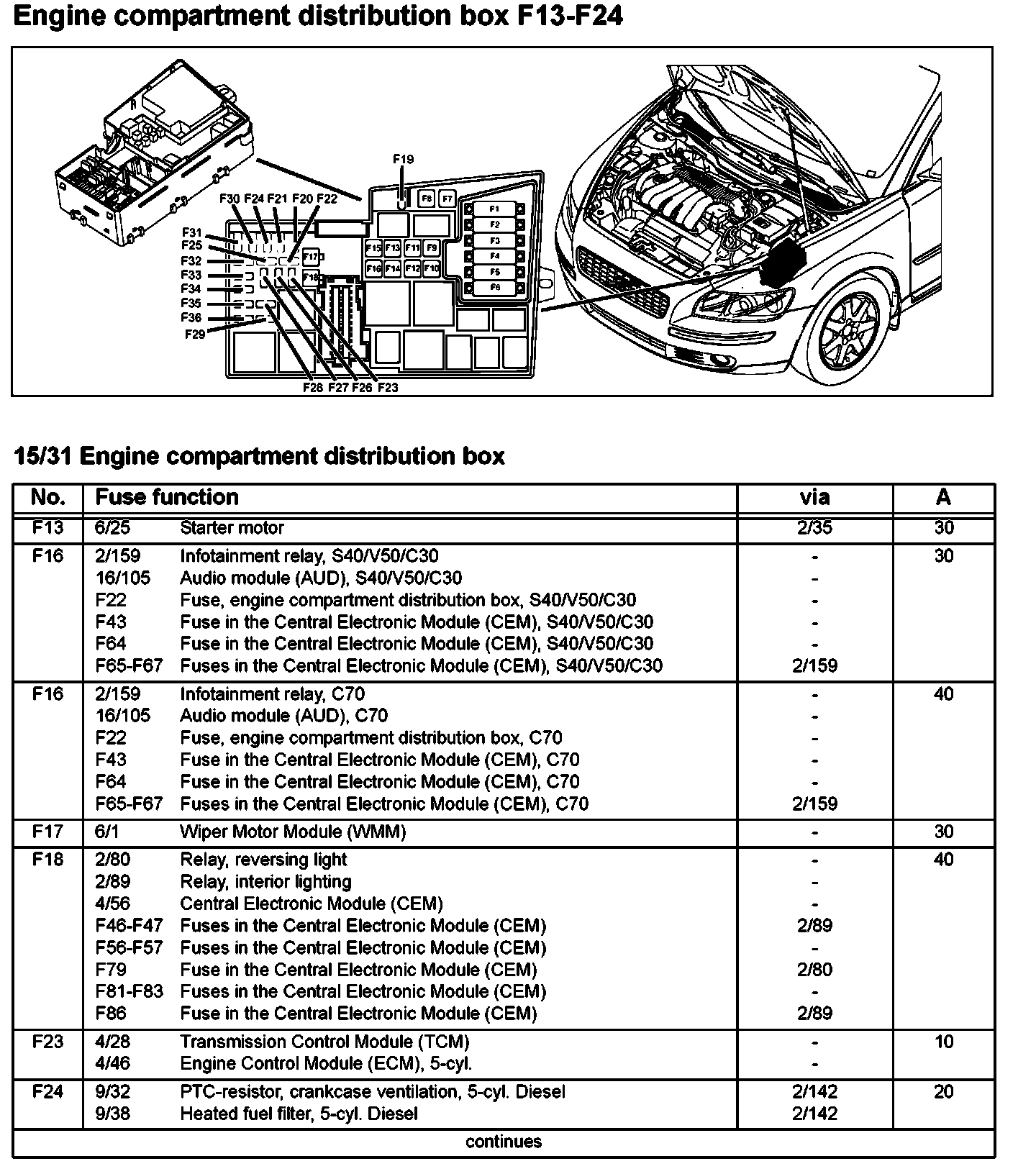

Engine Compartment Distribution Box F13-F24:

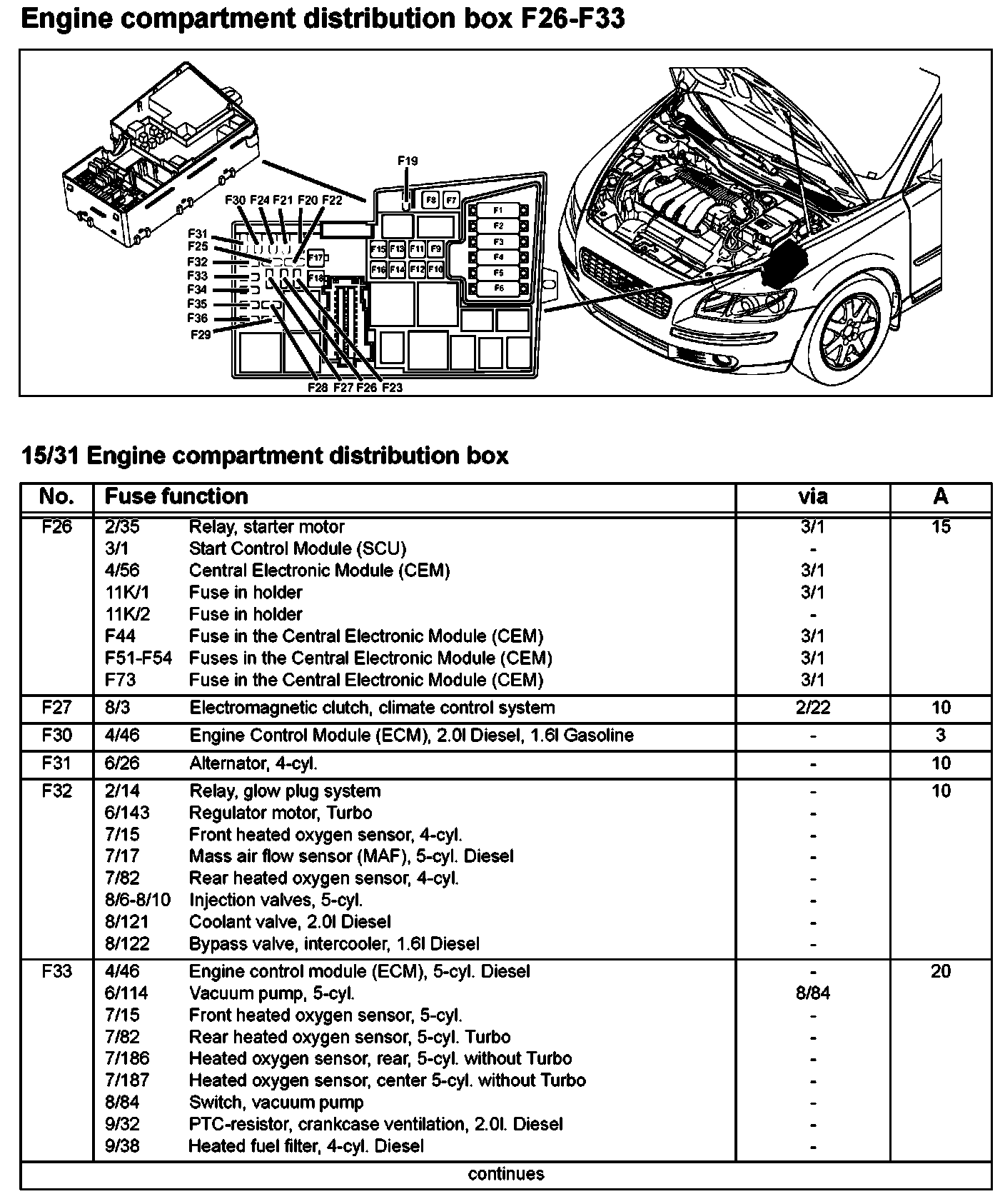

Engine Compartment Distribution Box F26-F33:

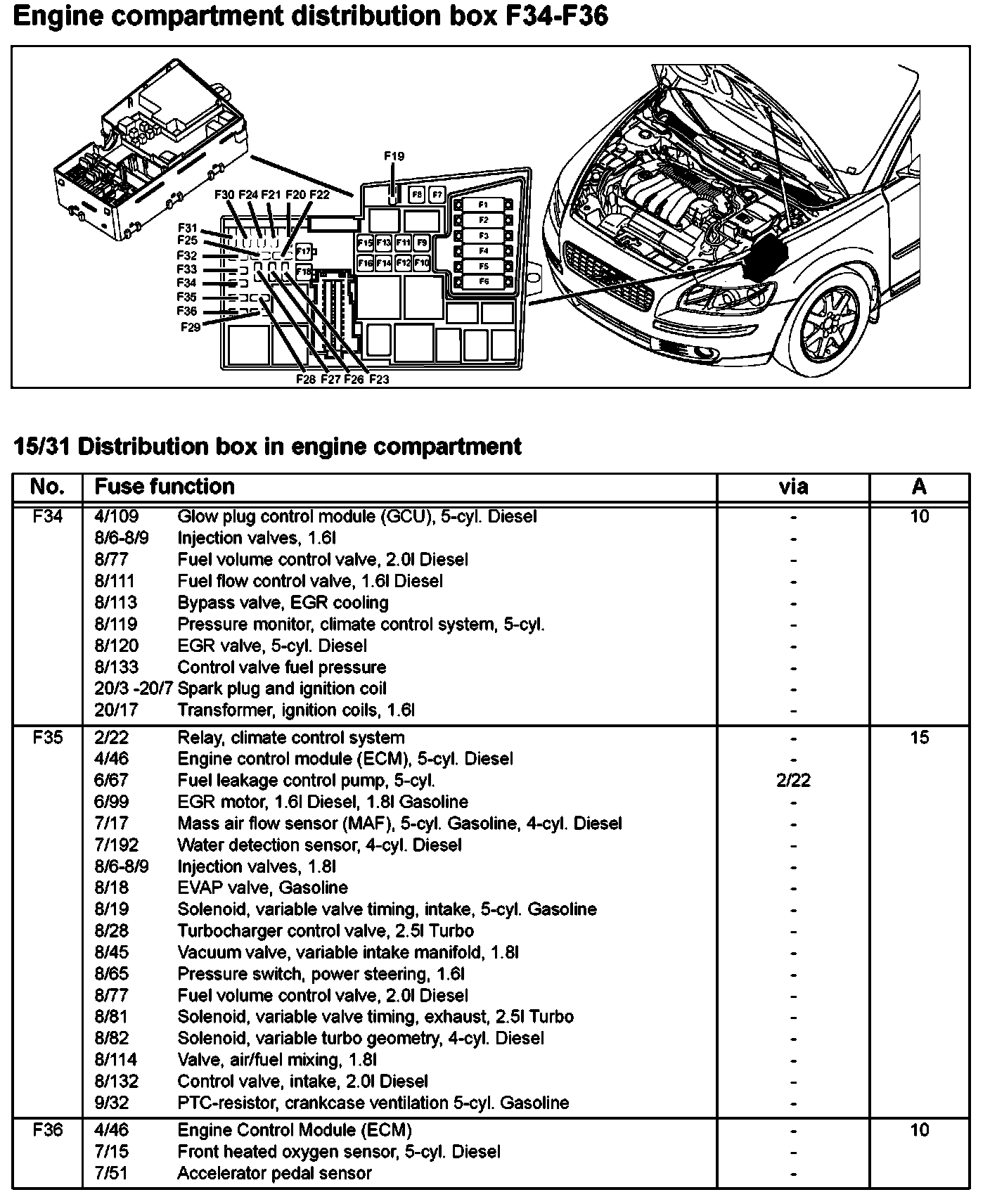

Engine Compartment Distribution Box F34-F36:
