Direction Indicators and Hazard Warning Flashers (Bi-Xenon)

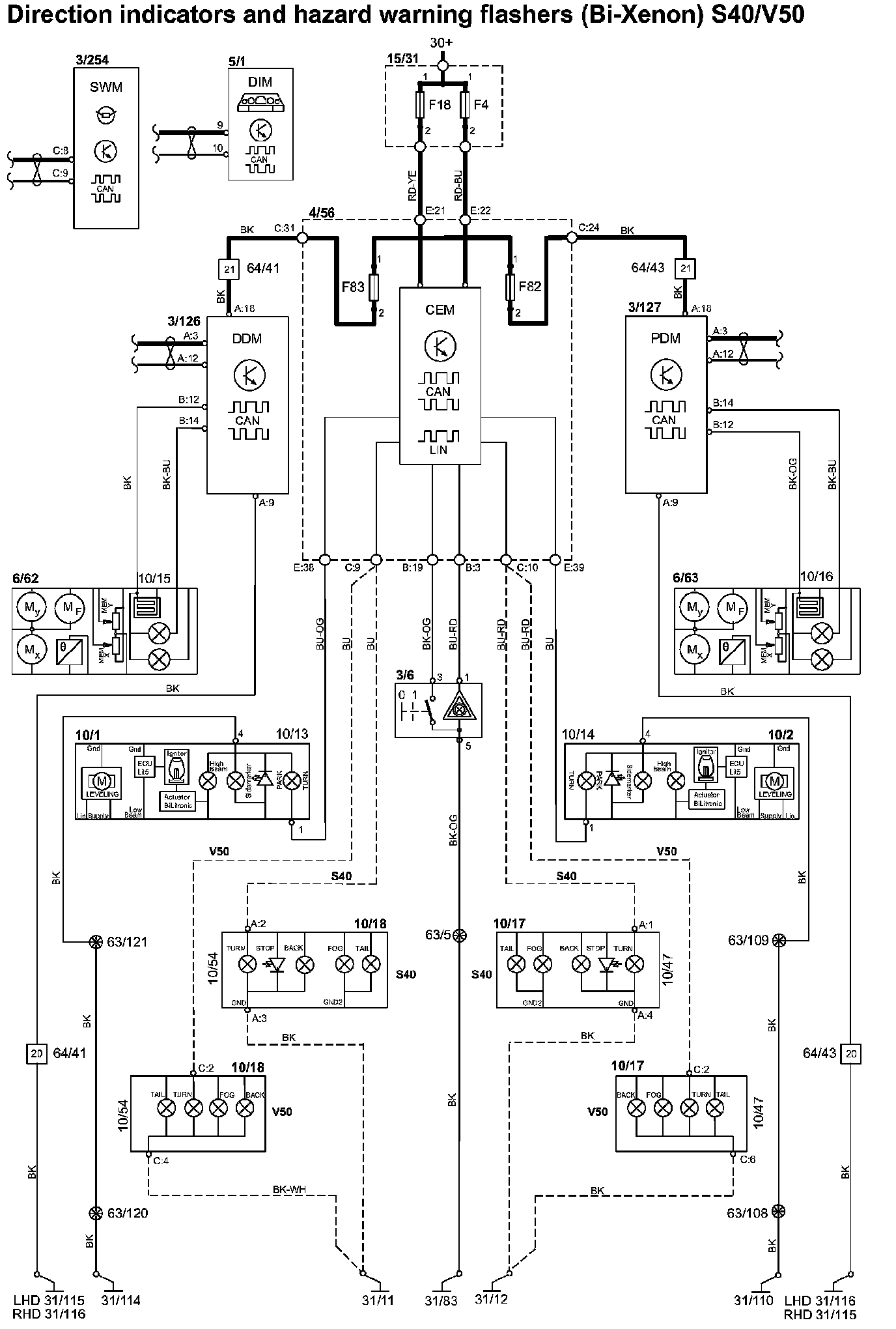

Direction Indicators And Hazard Warning Flashers (Bi-Xenon) S40/V50

Direction Indicators And Hazard Warning Flashers (Bi-Xenon):

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
