Central Electronic Module (CEM)

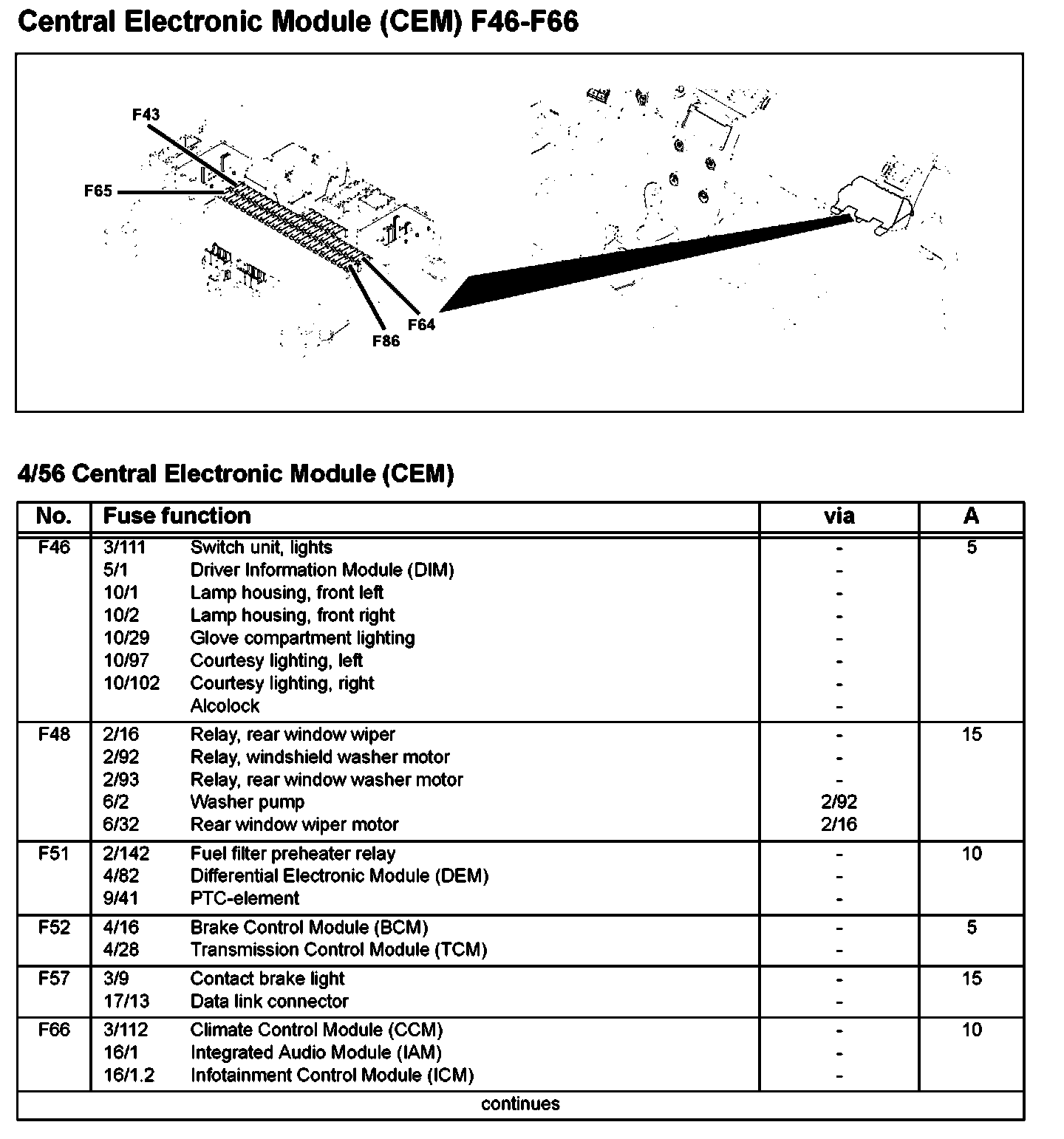

Central Electronic Moduel (CEM) F46-F66:

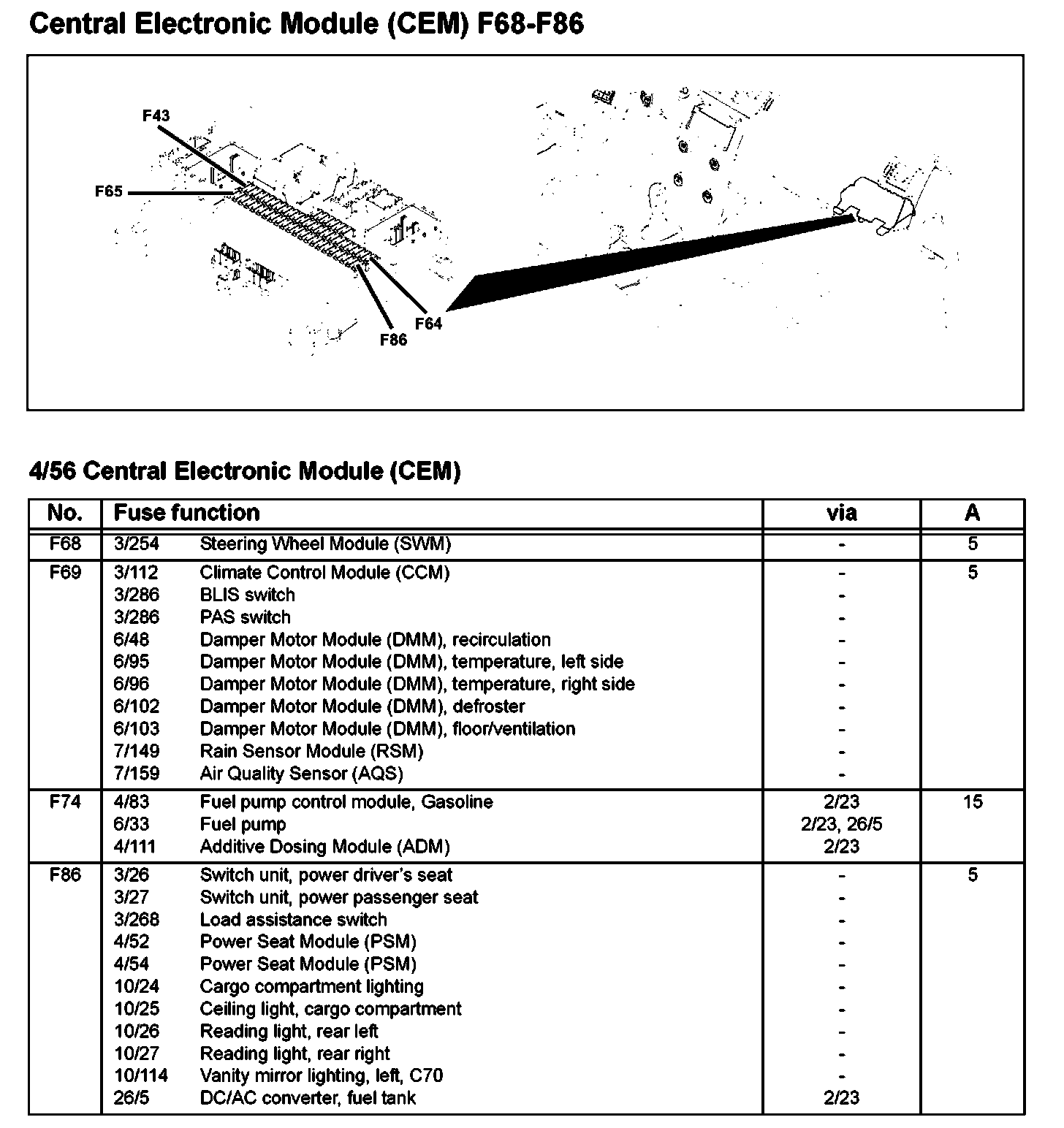

Central Electronic Module (CEM) F68-F86:
