Bluetooth Control Module

Bluetooth control module

Operation number: 39420-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.





Remove the glove compartment. Refer to: Glove compartment Glove Compartment

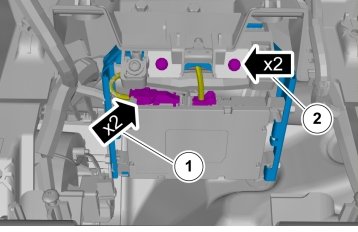

Note! Make sure that the component terminals are not bent or damaged.

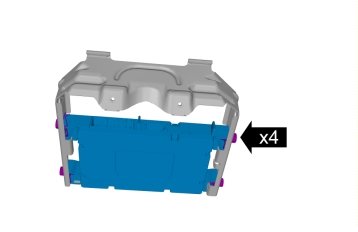

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Order software for the control module. See: 31282116
