Home >> Volvo >> 2008 >> C70 T5 L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Diagrams >> Diagram Information and Instructions >> Changes Introduced Up to and Including April 2007 >> List of Components By Component Number

List of Components By Component Number

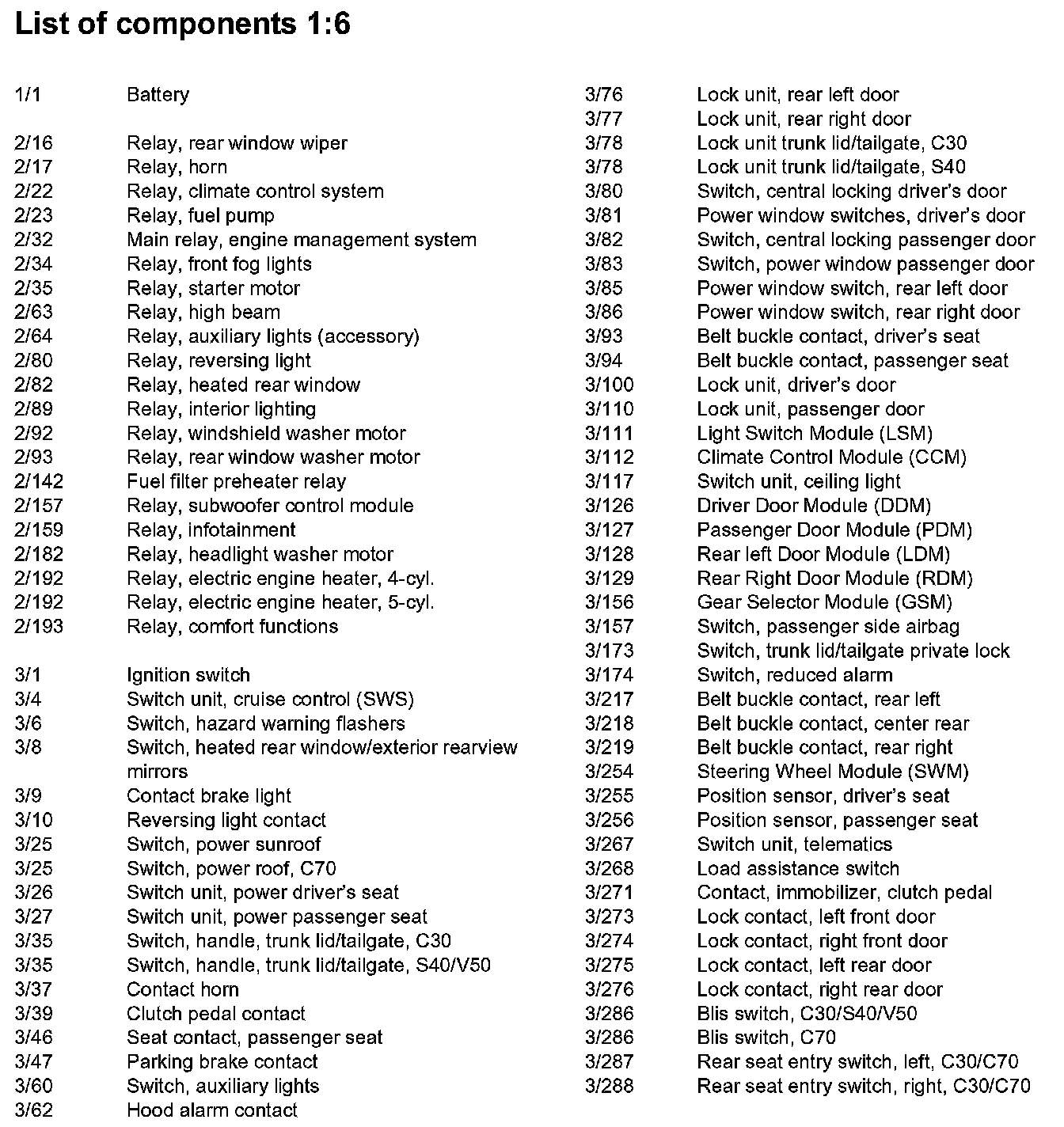

1/1 To 3/288:

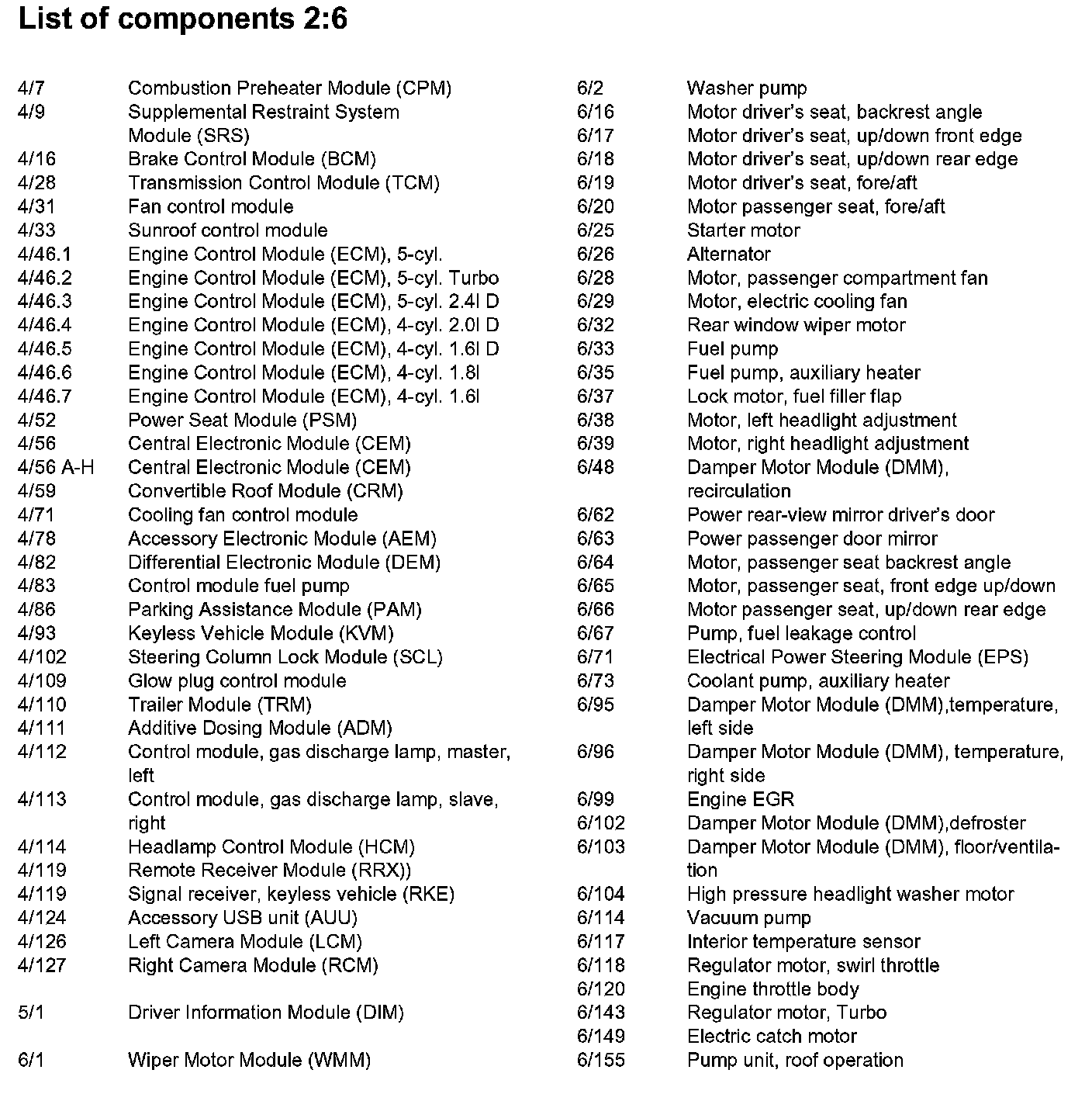

4/7 To 6/155:

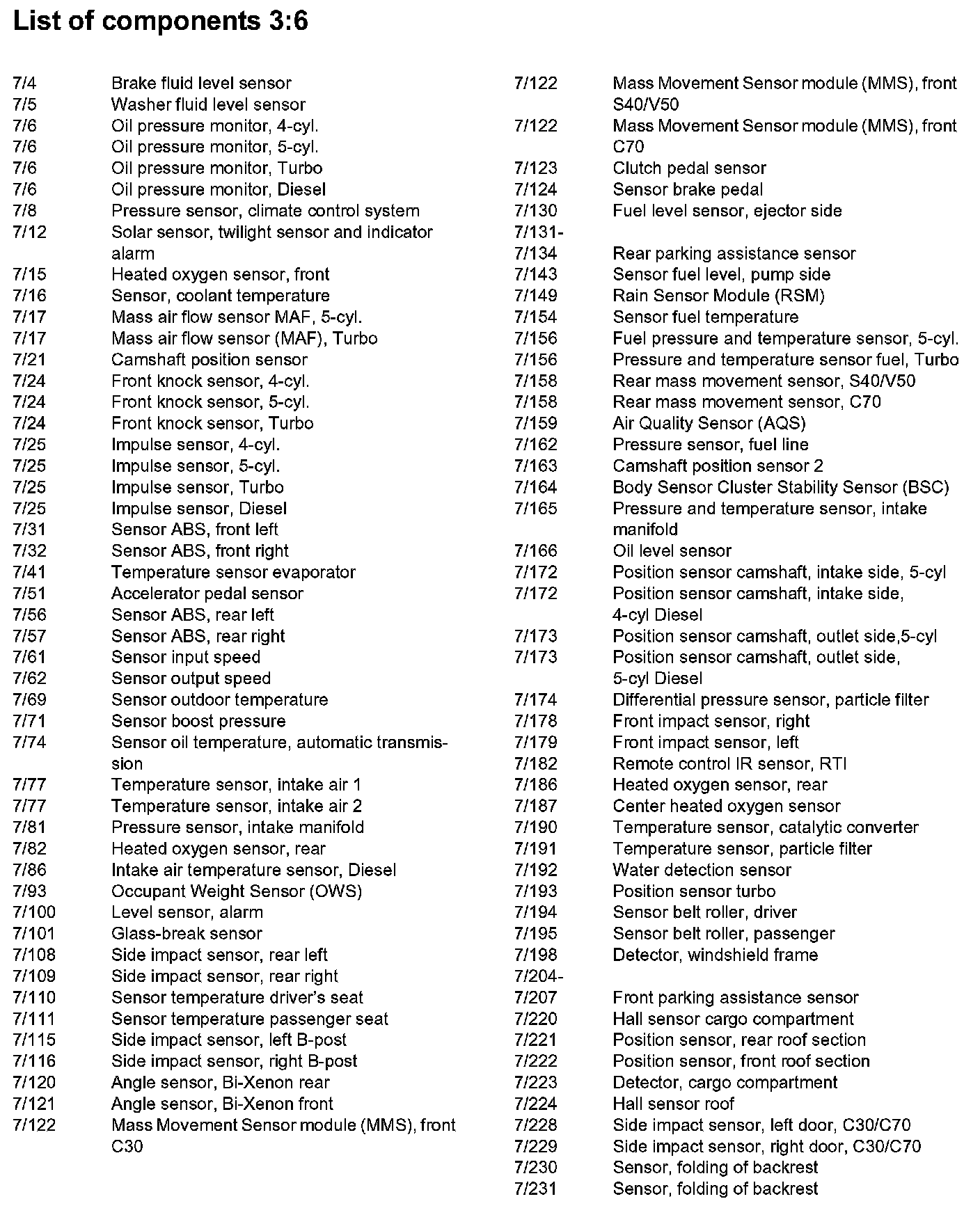

7/4 To 7/231:

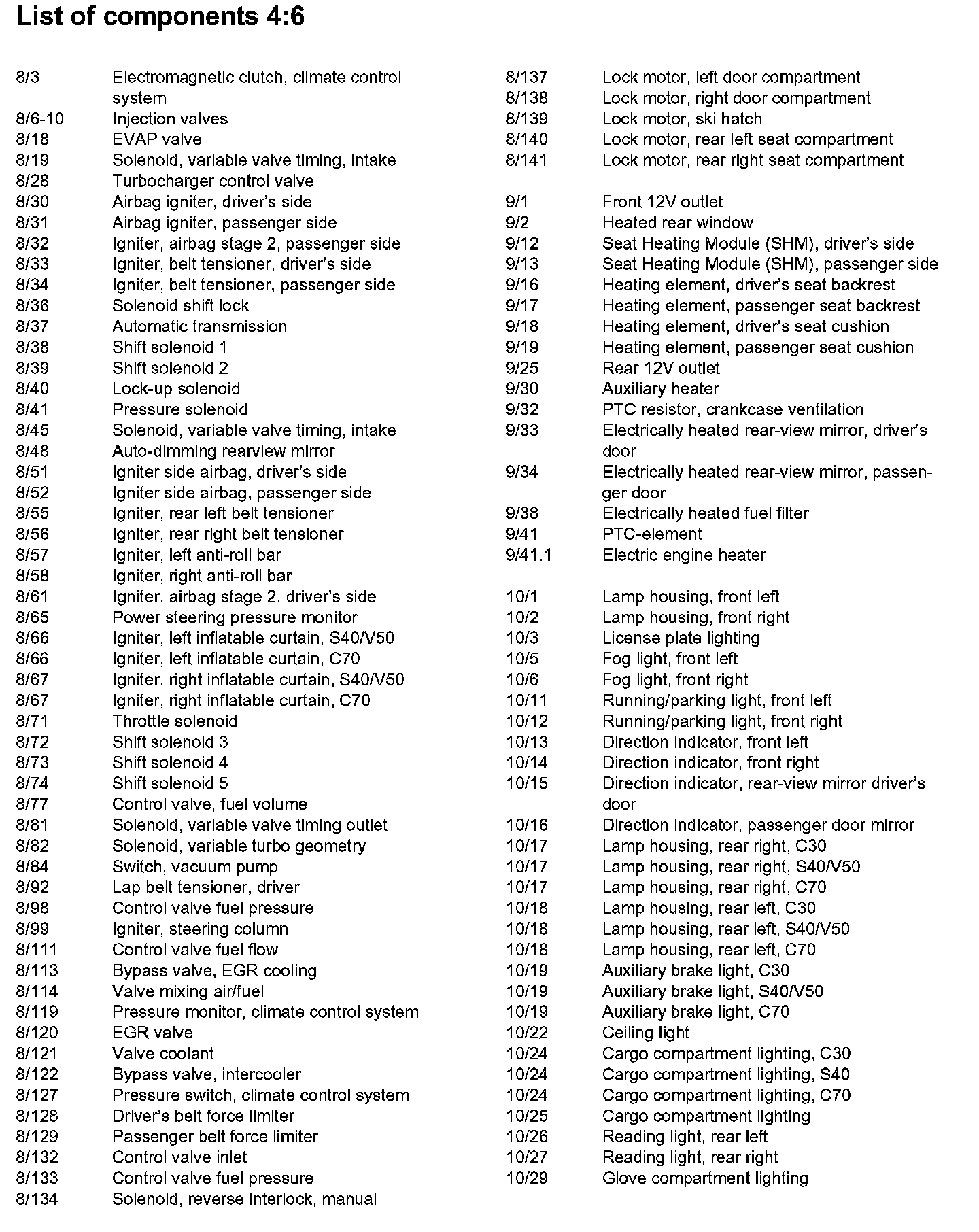

8/3 To 10/29:

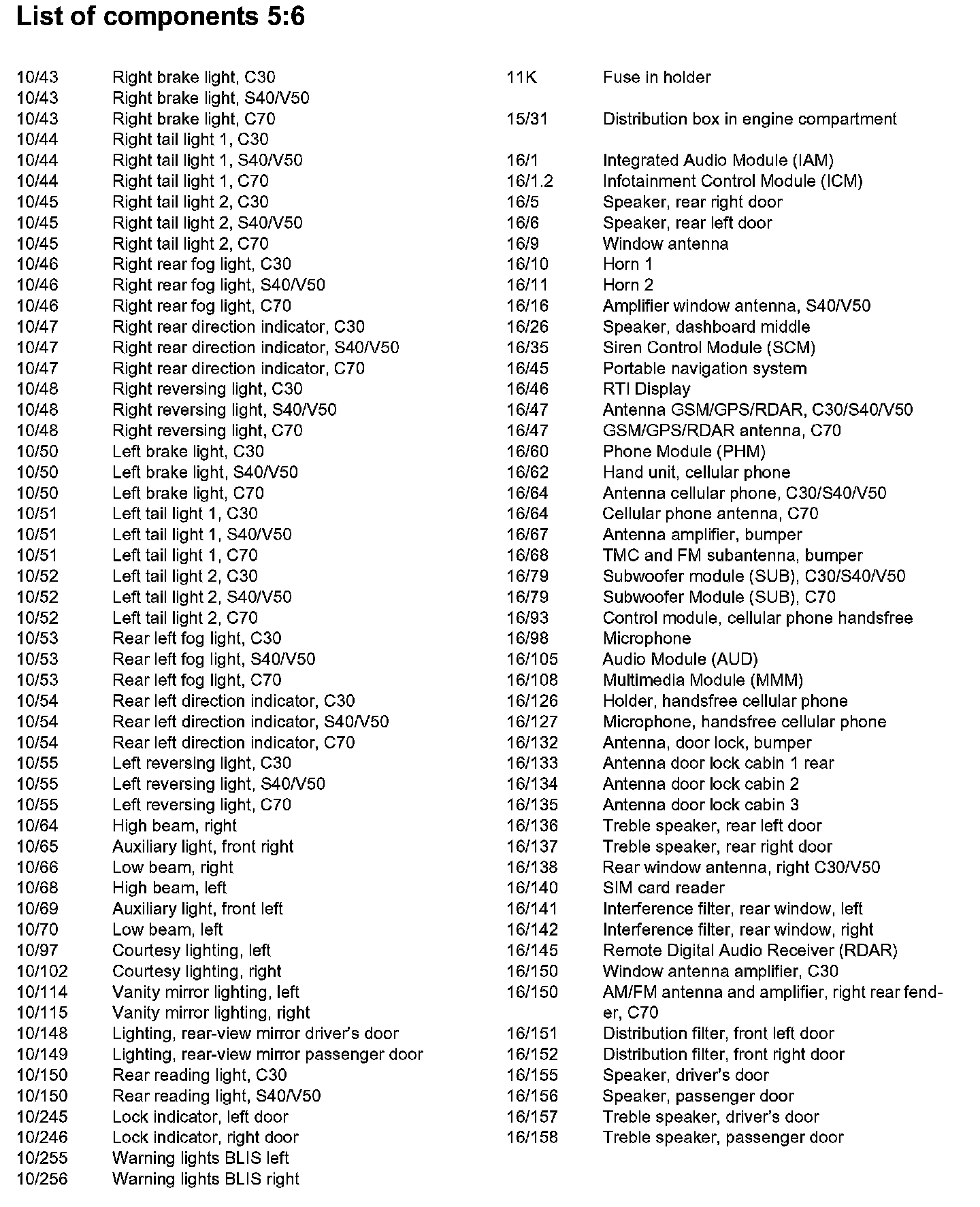

10/43 To 16/158:

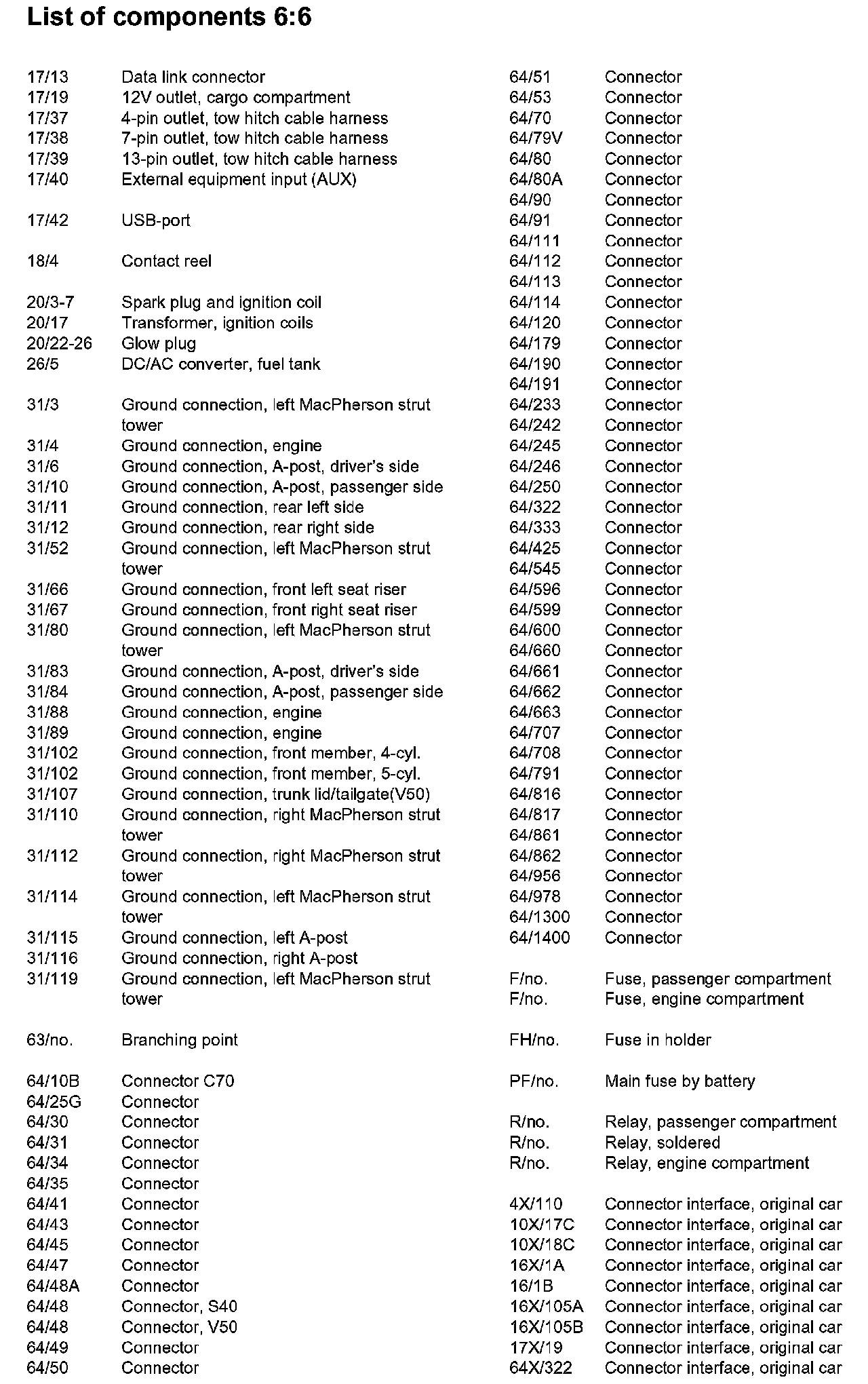

17/13 To 64X/322:
