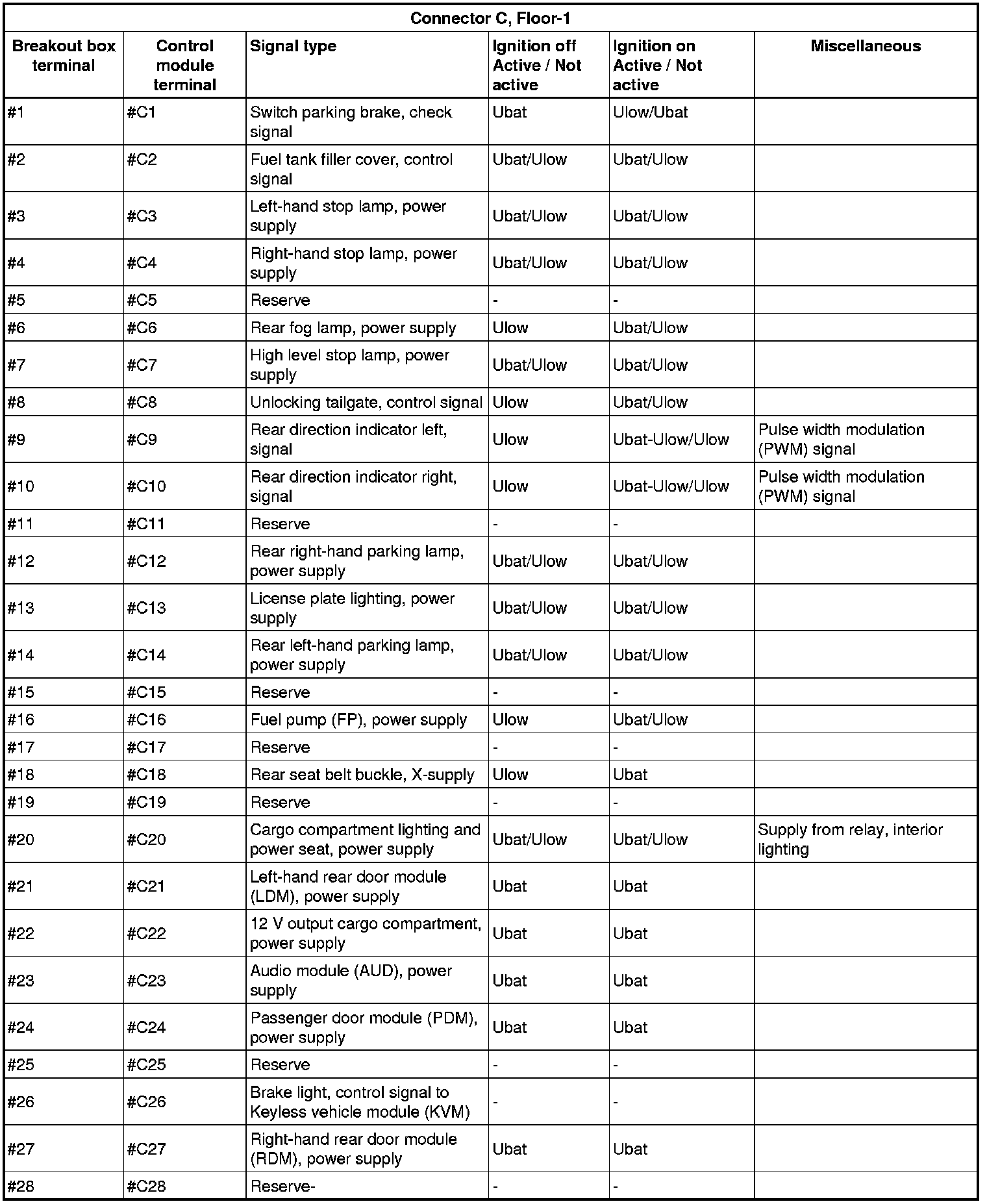

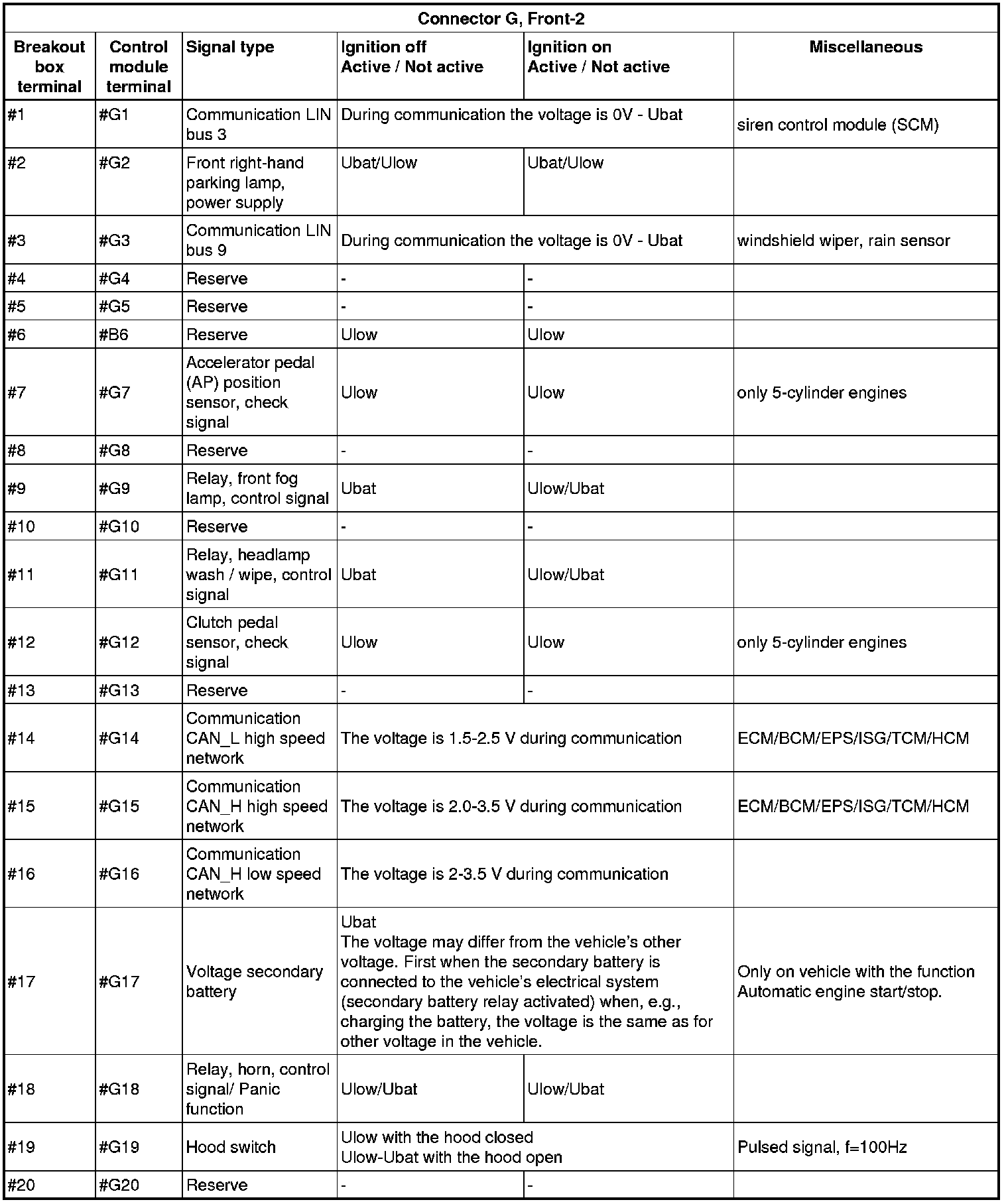

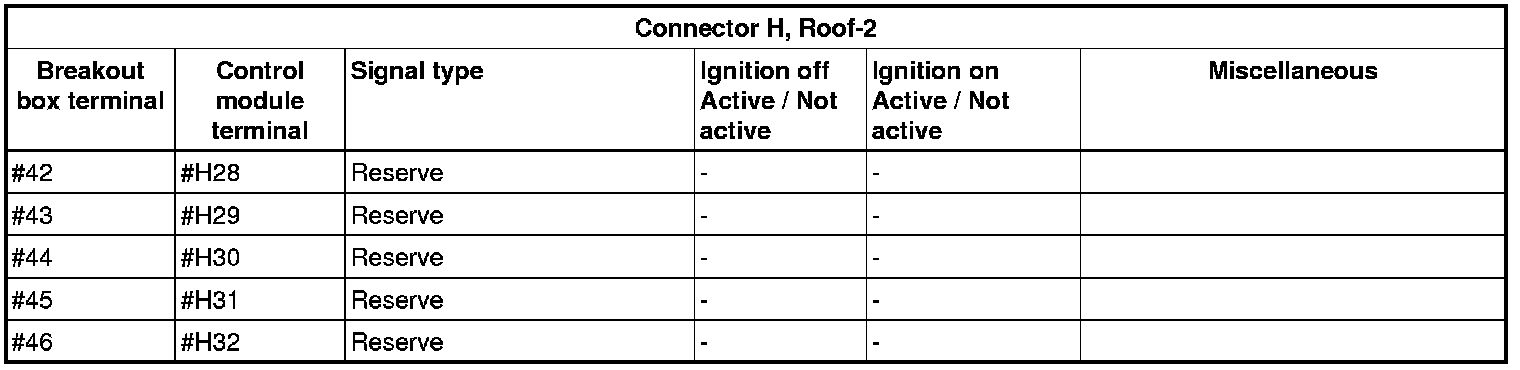

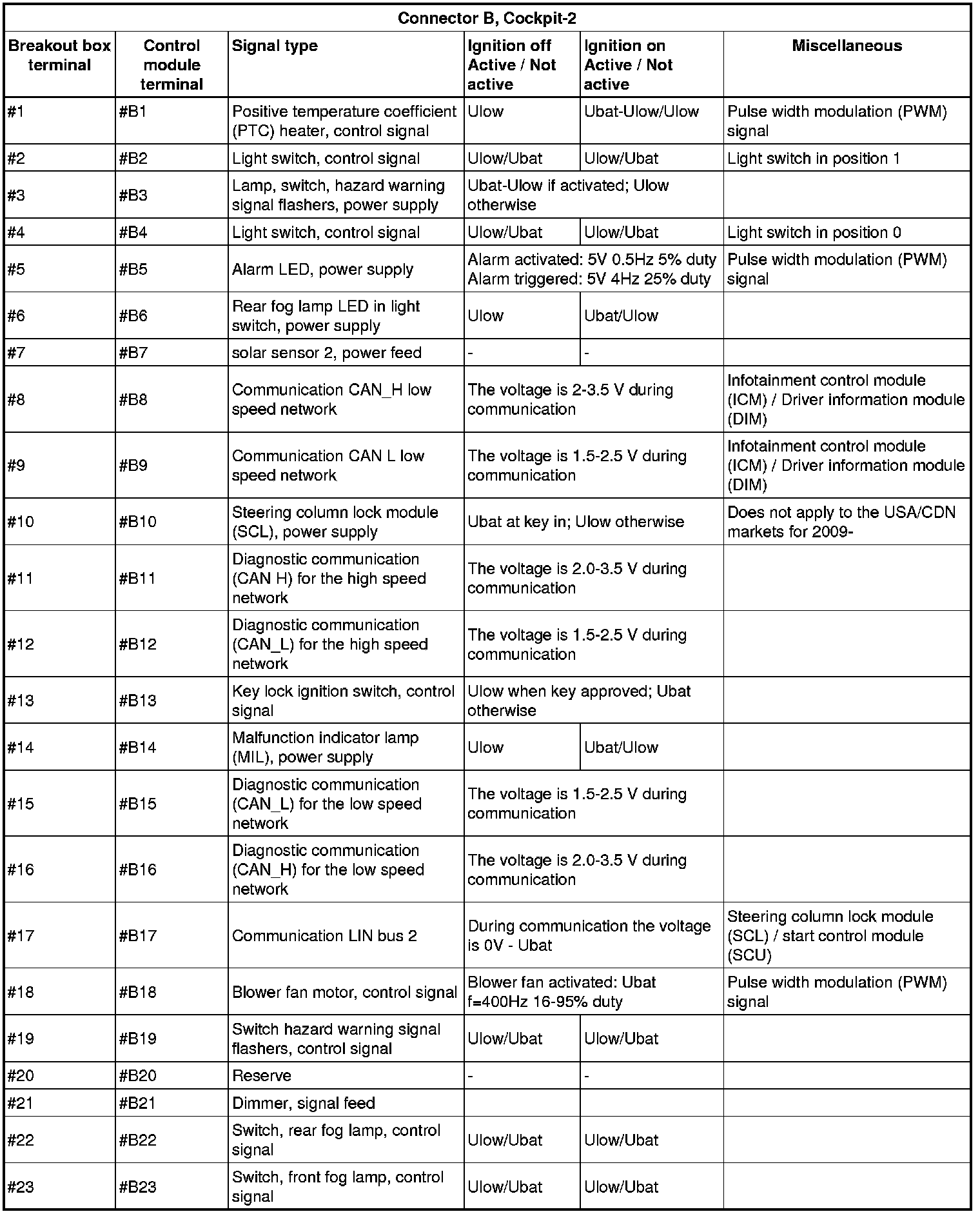

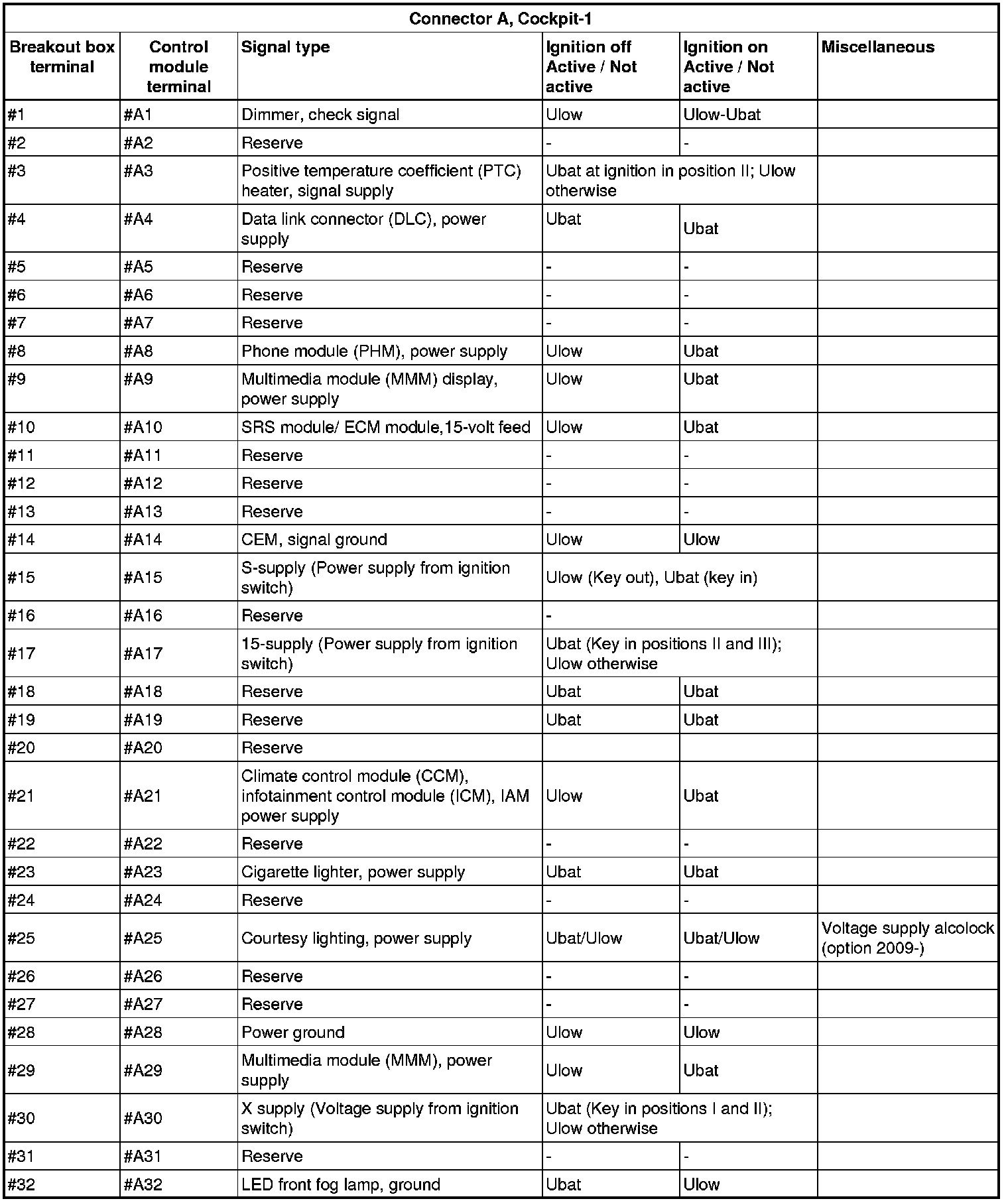

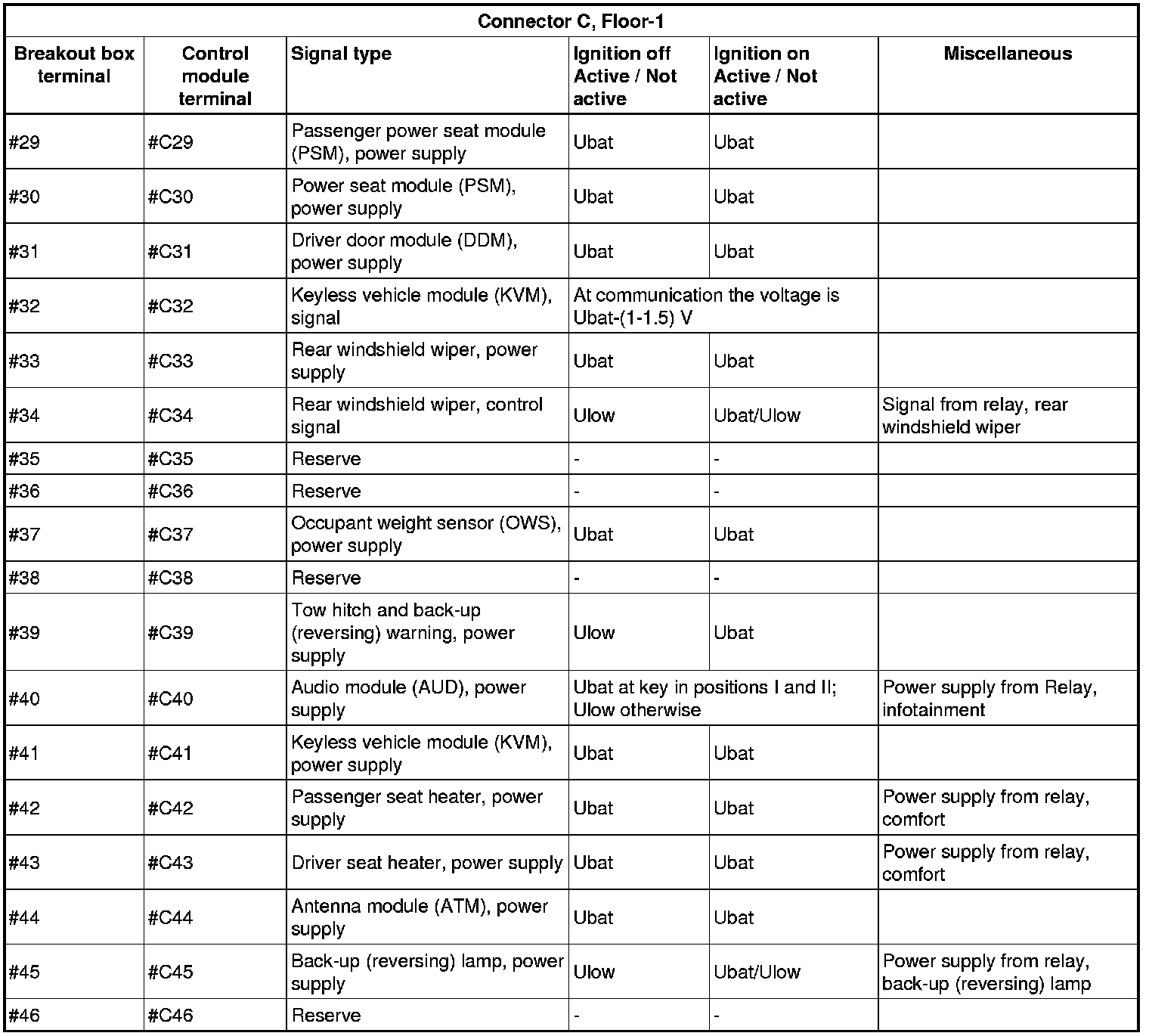

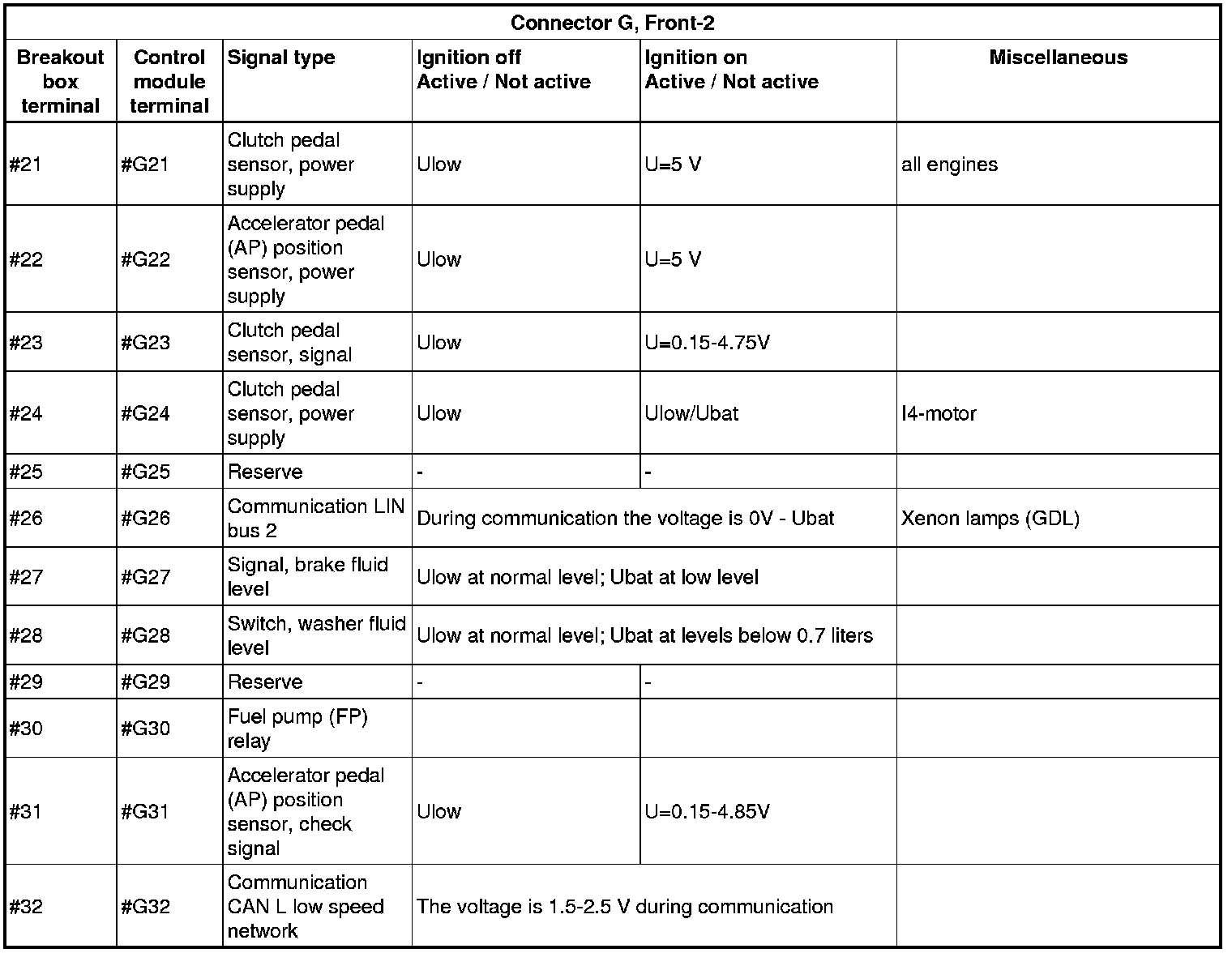

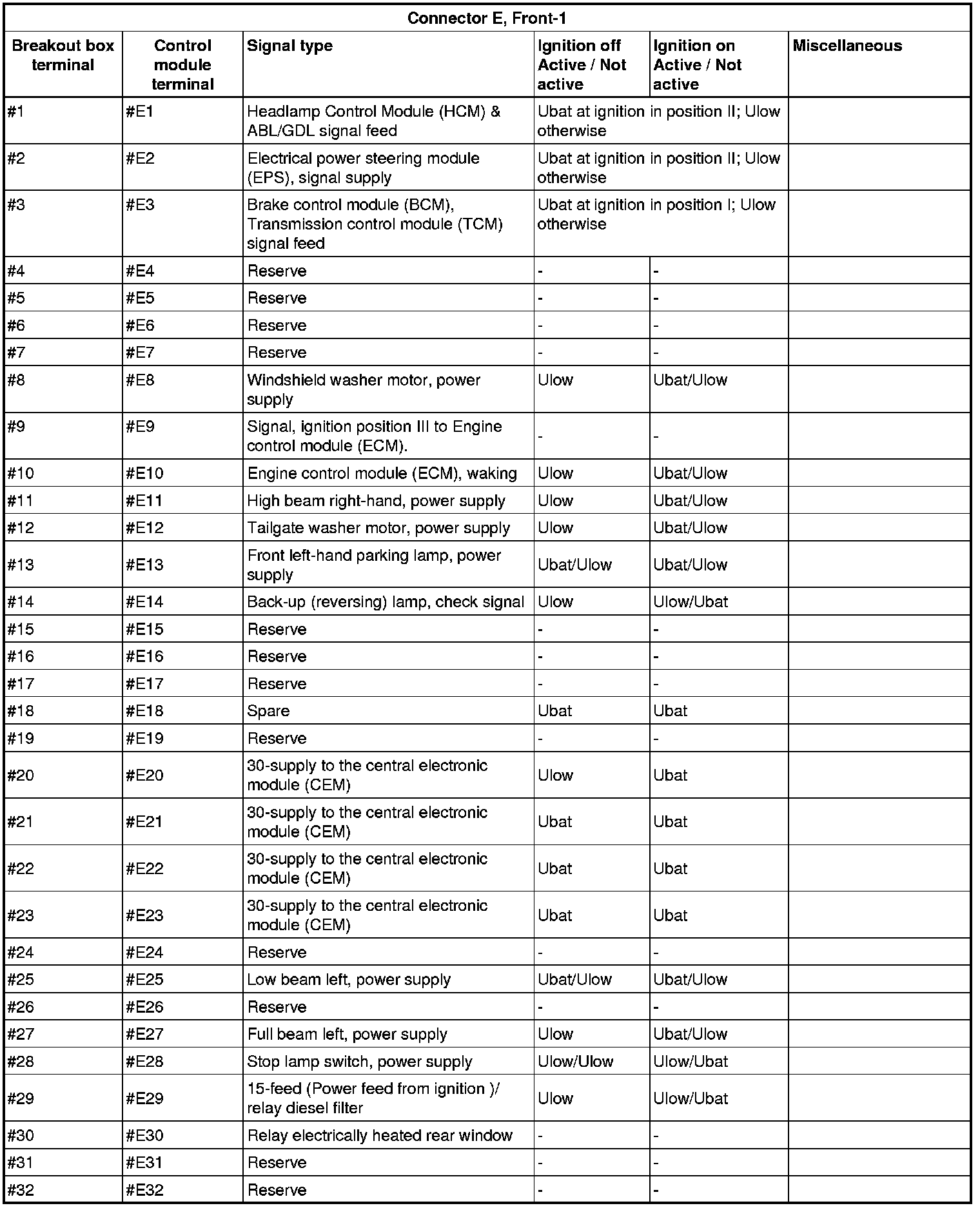

Signal Description, Central Electronic Module (CEM)

Signal specification

General

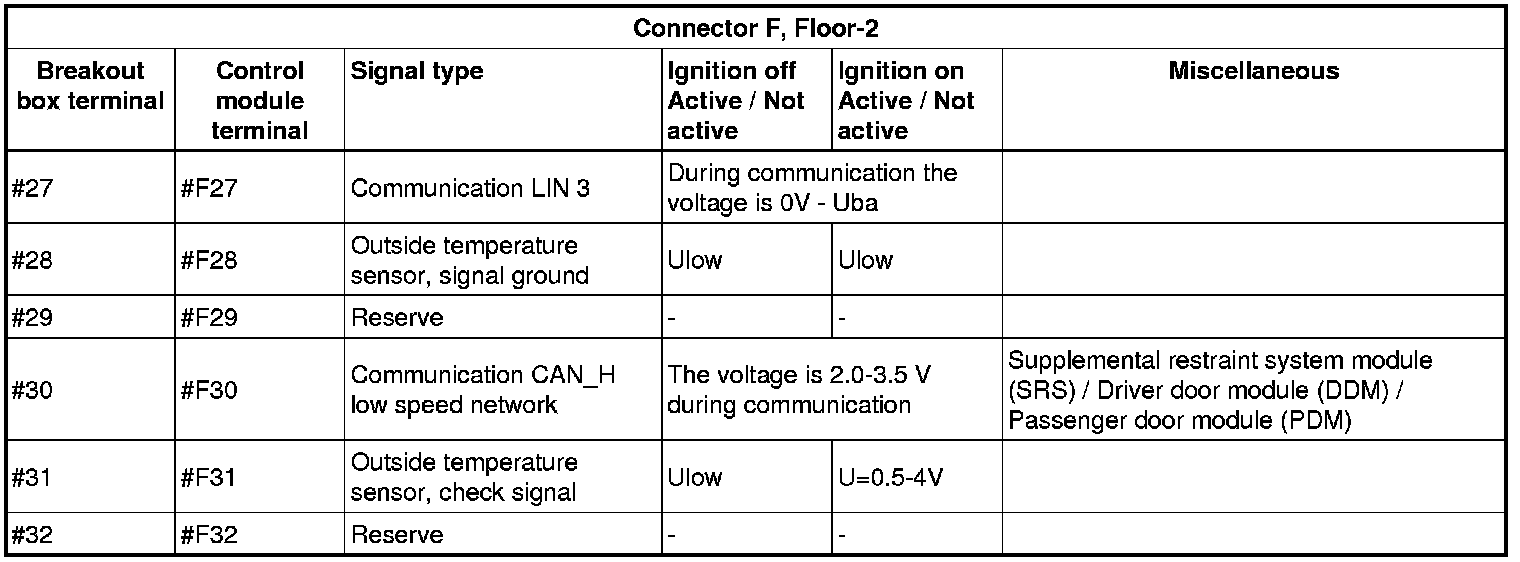

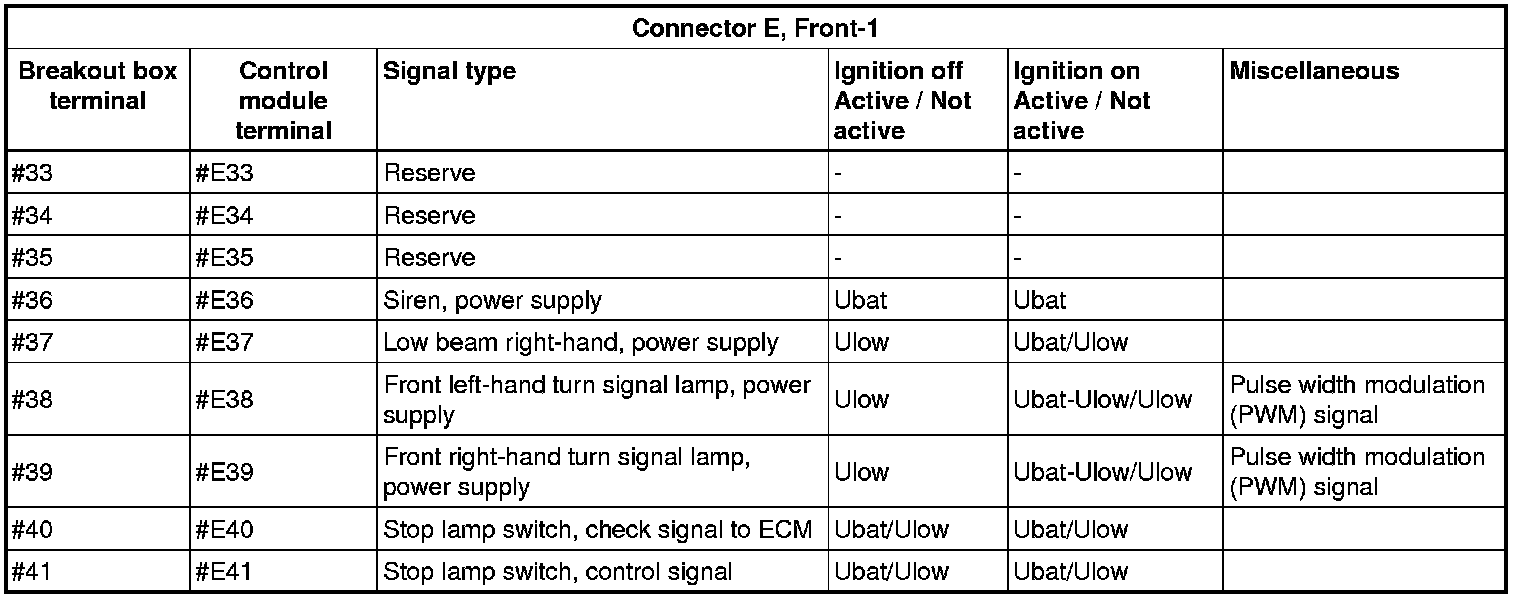

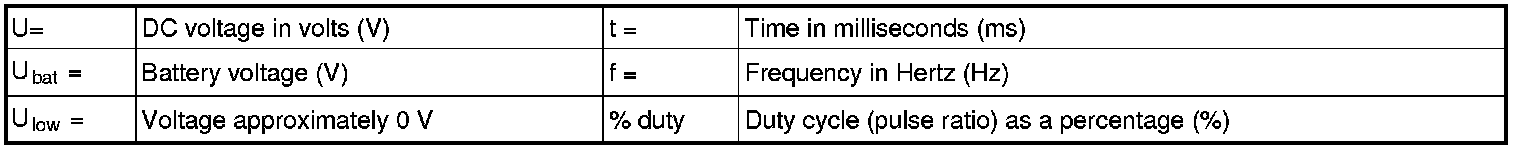

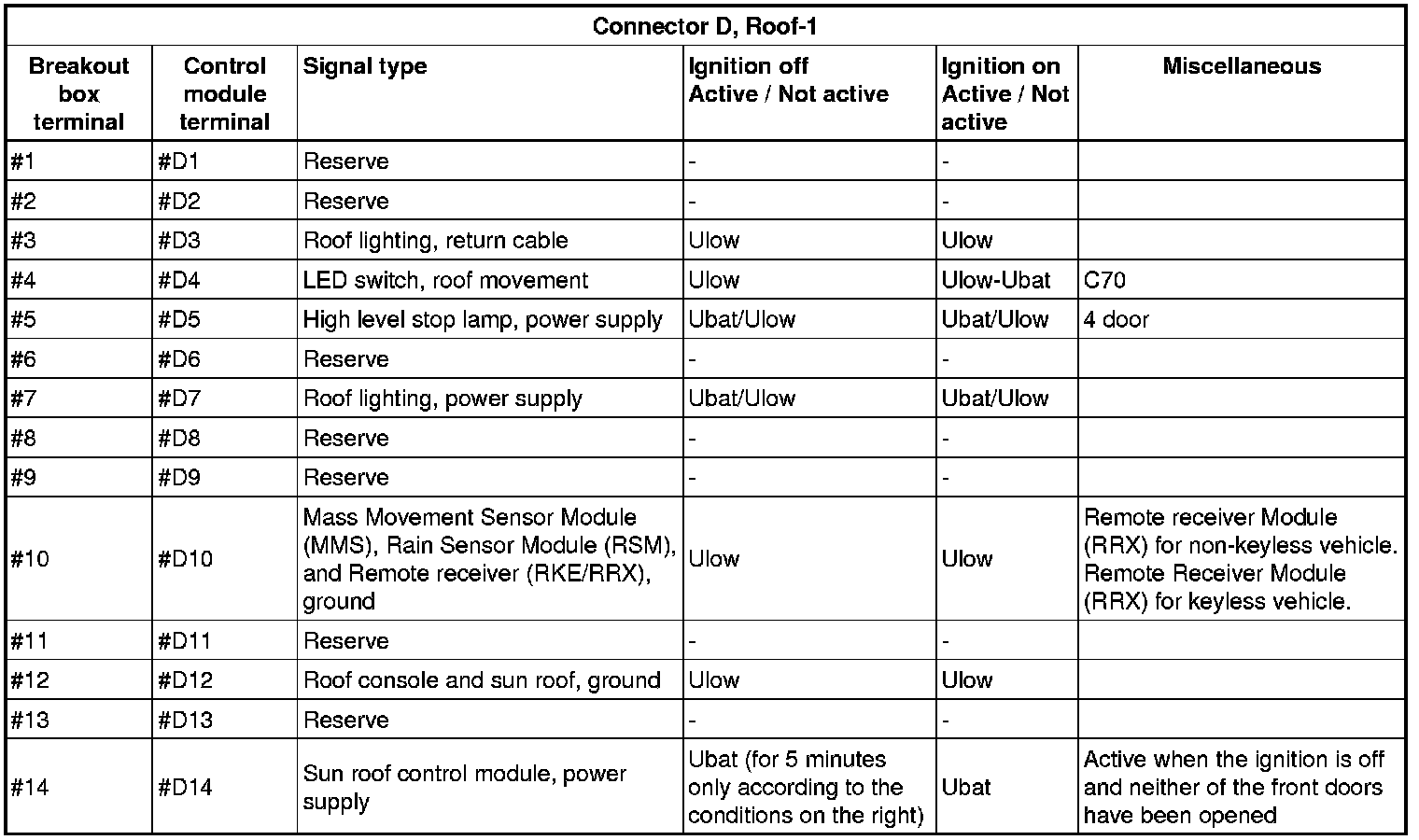

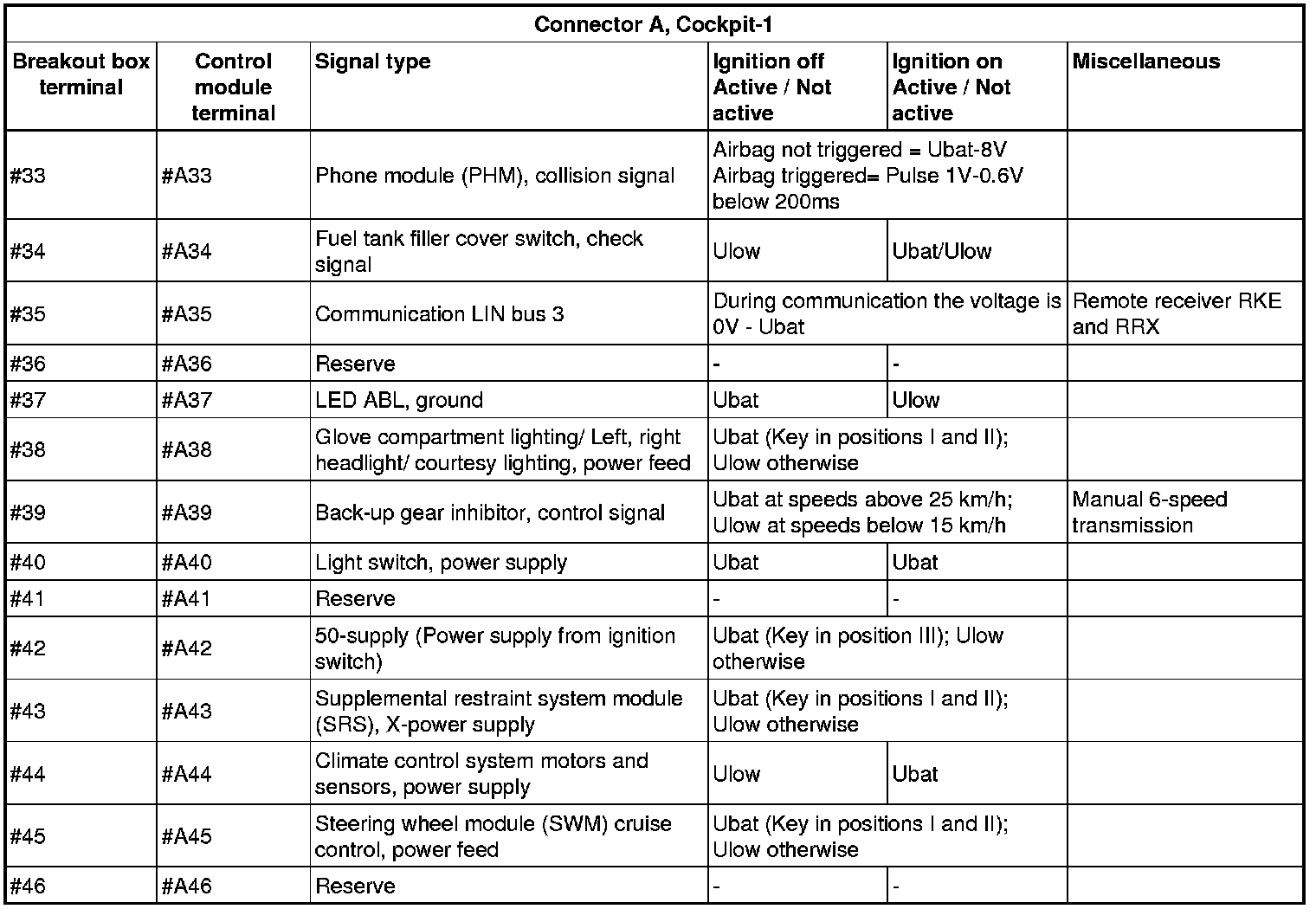

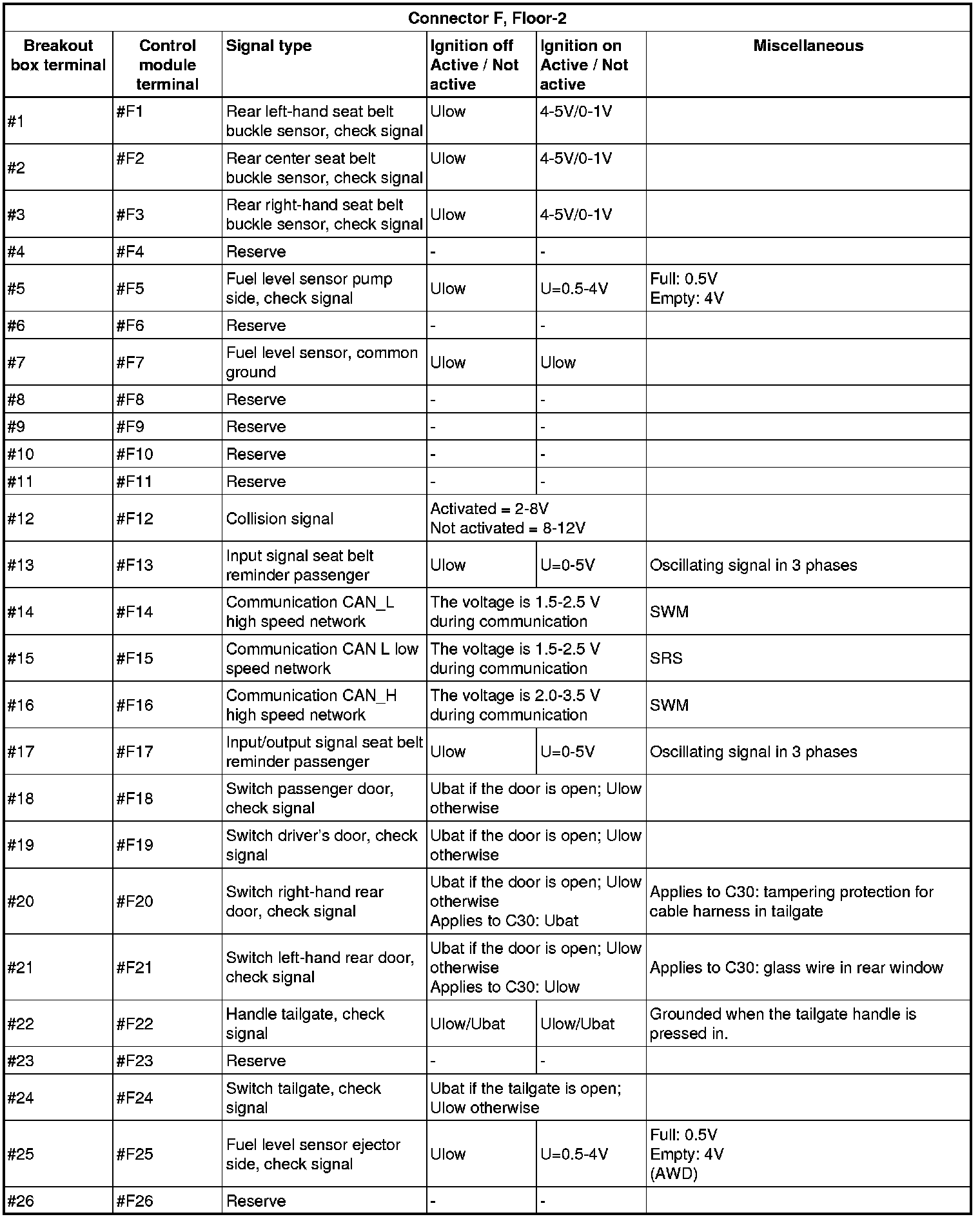

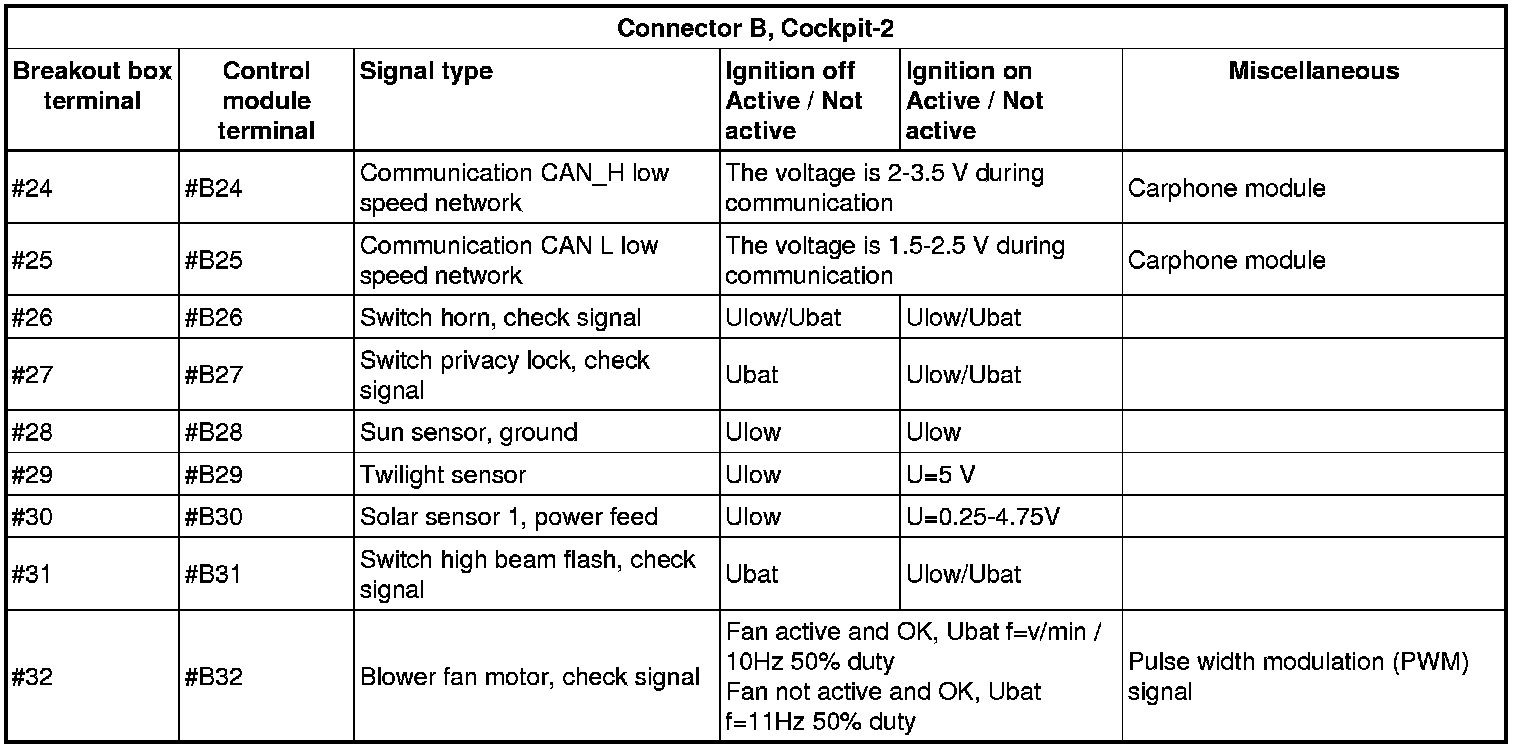

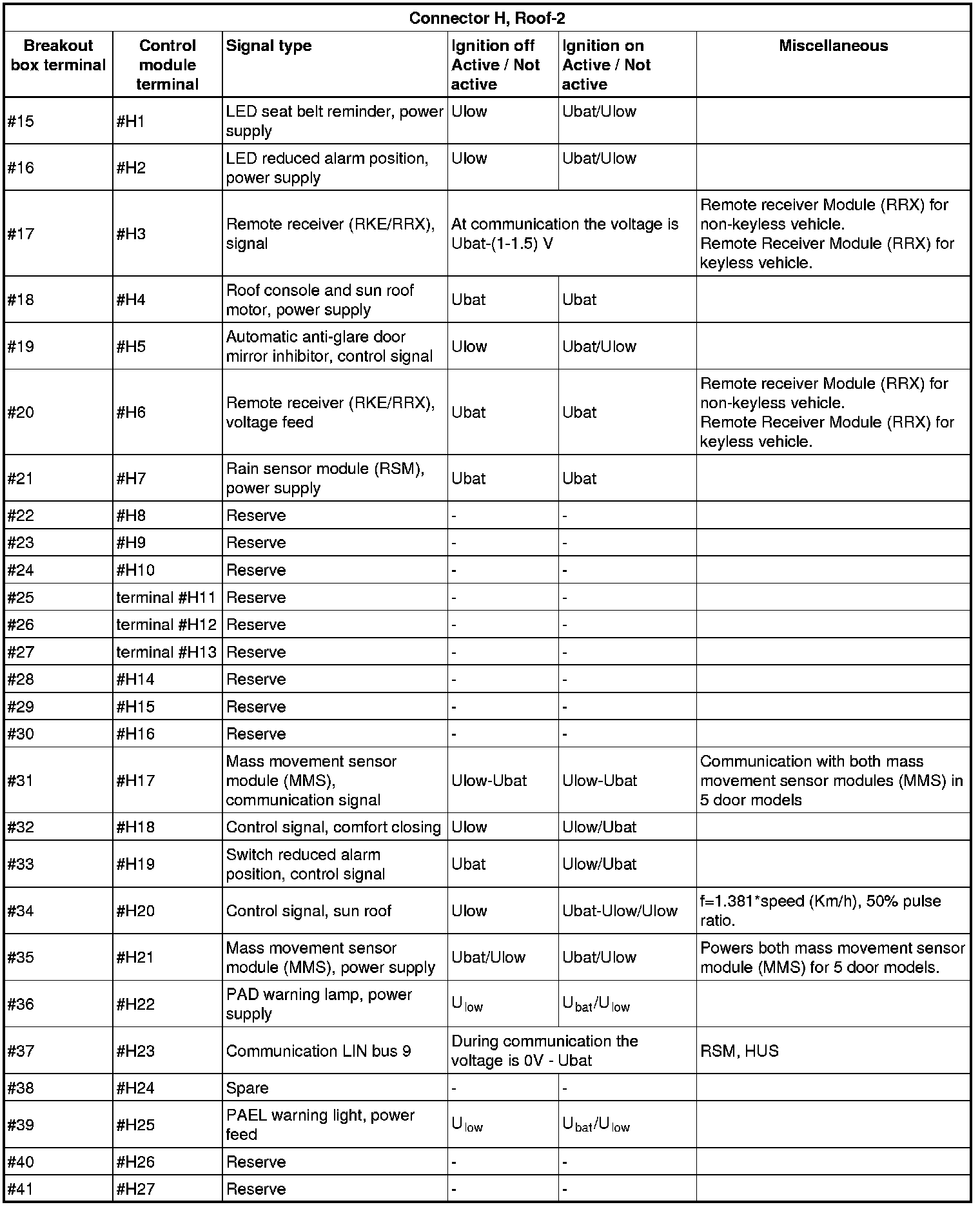

All the values given below are between the connections in column 1 and connection #A28 in column 2 (power ground). This applies unless otherwise indicated in the last column.

Note! It is important that the breakout box is connected and that the ground connections have been checked before starting to measure.
