Passenger Compartment

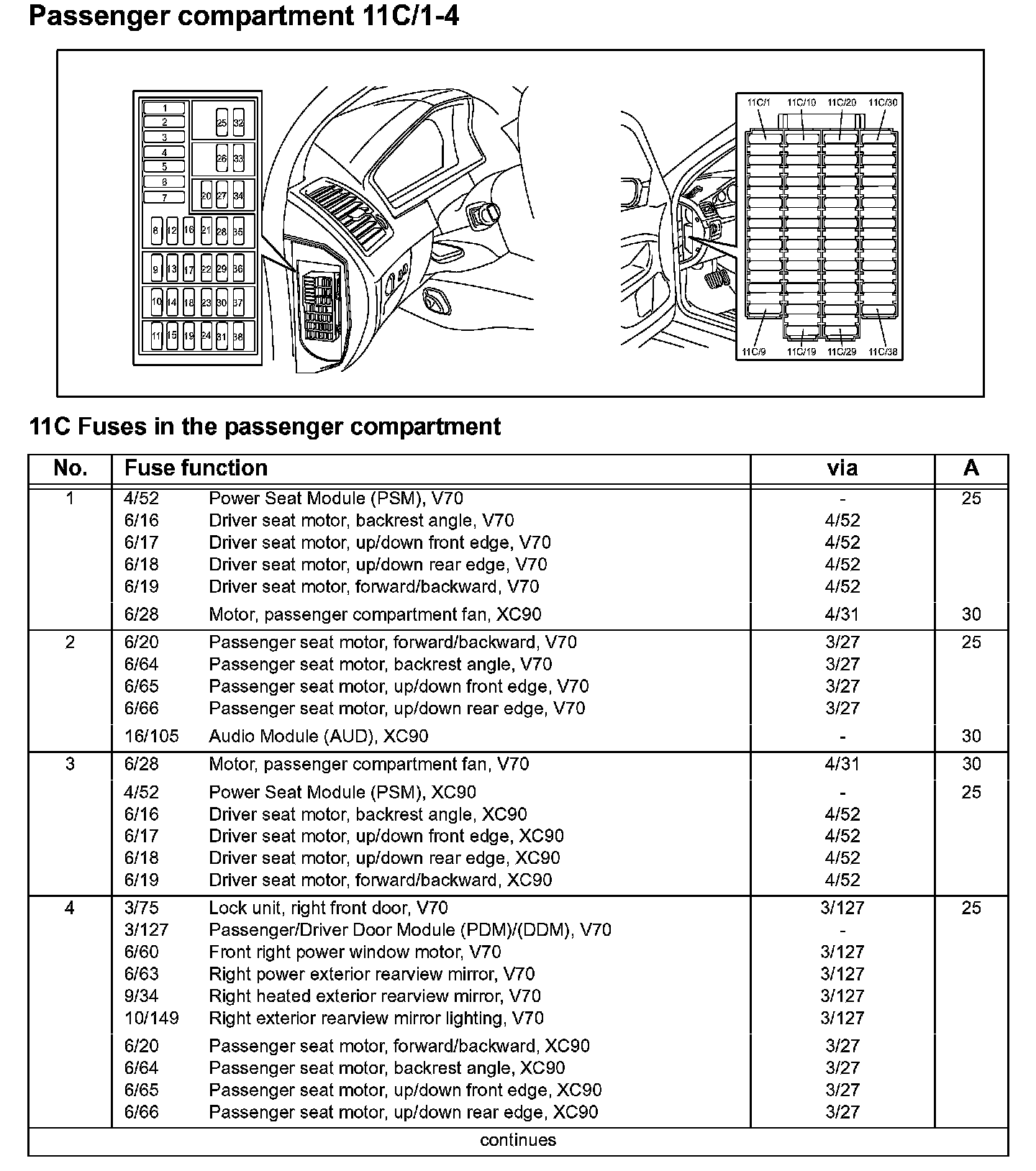

Passenger Compartment 11C/1-4:

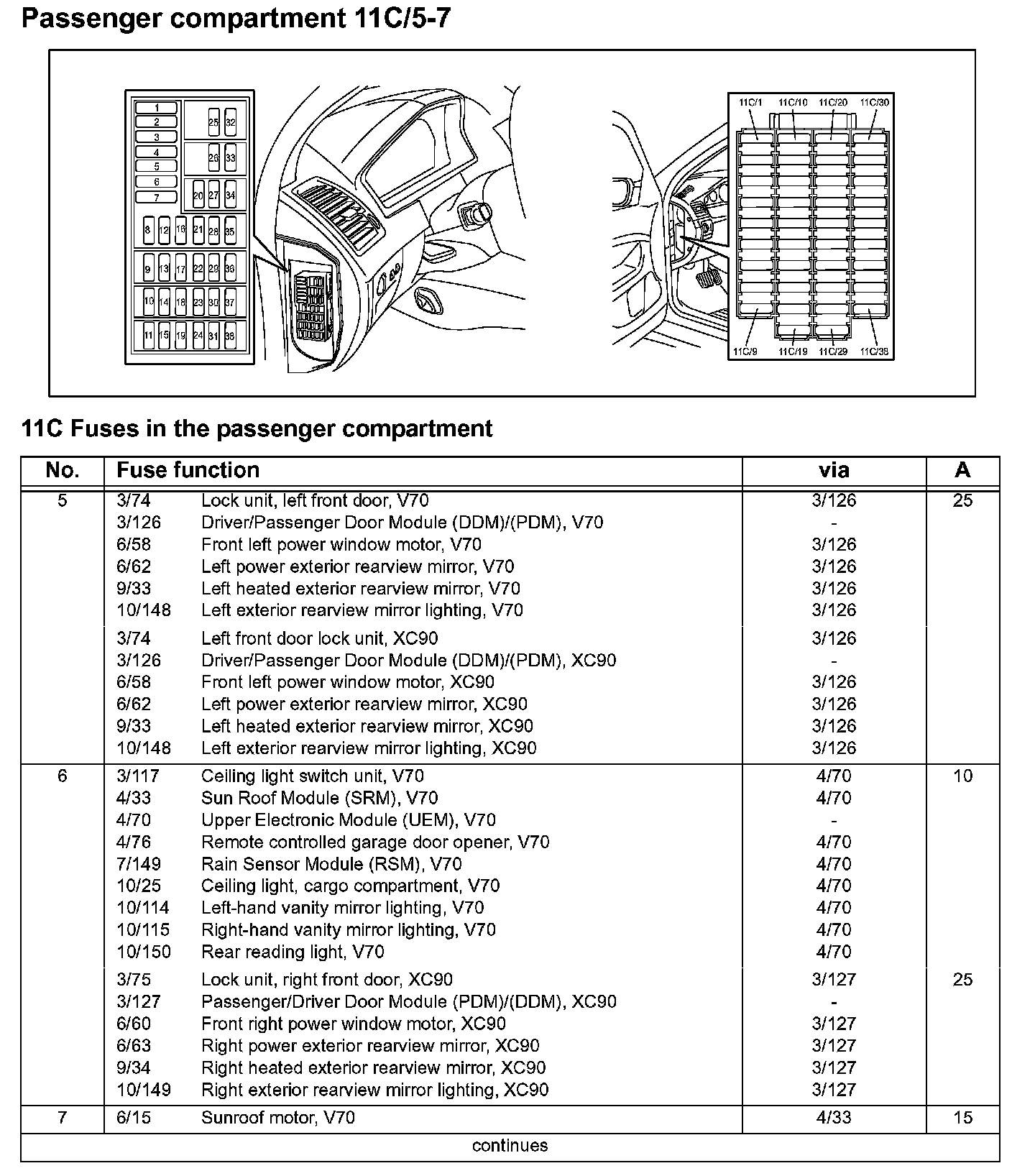

Passenger Compartment 11C/5-7:

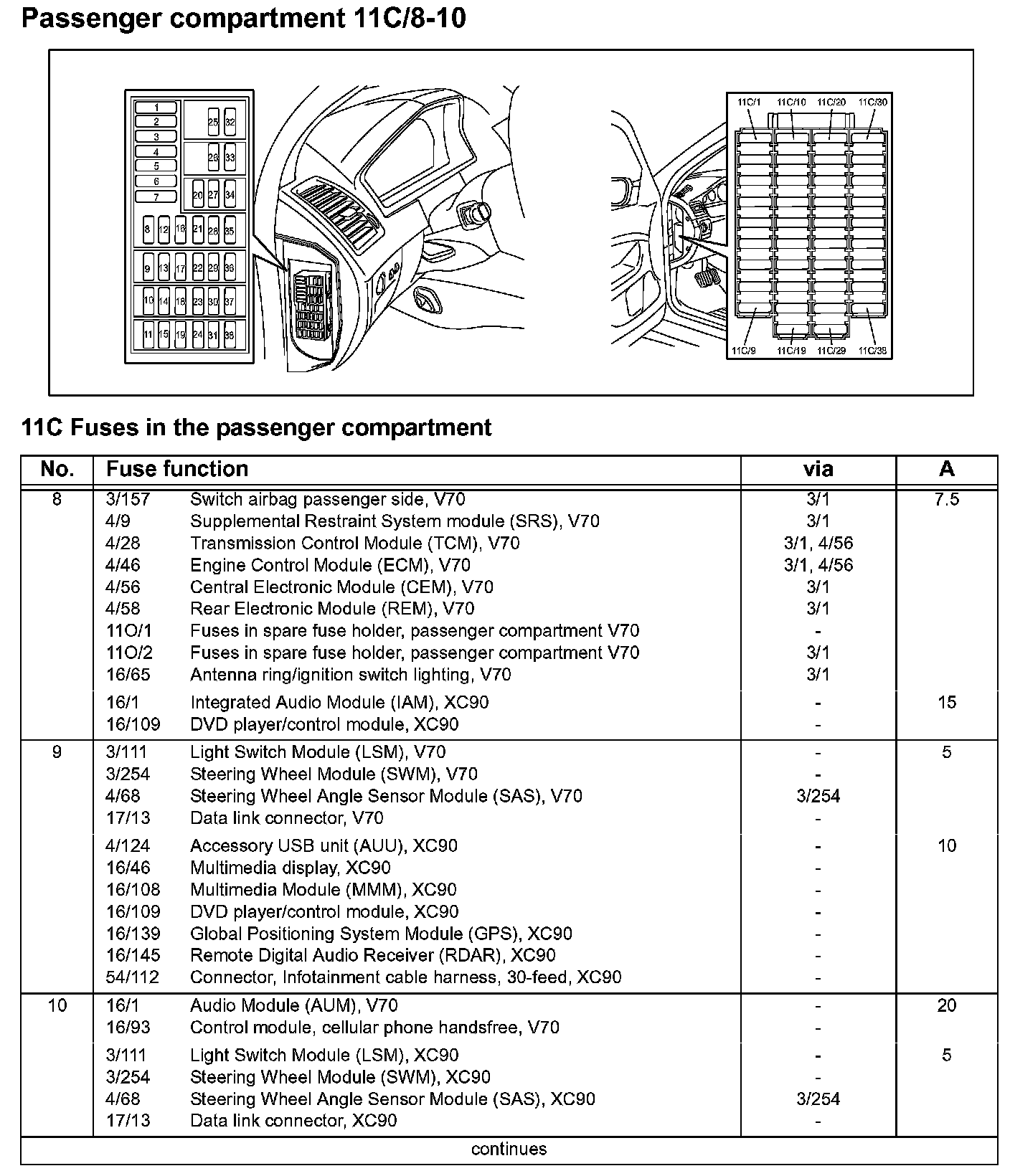

Passenger Compartment 11C/8-10:



Passenger Compartment 11C/11-14:

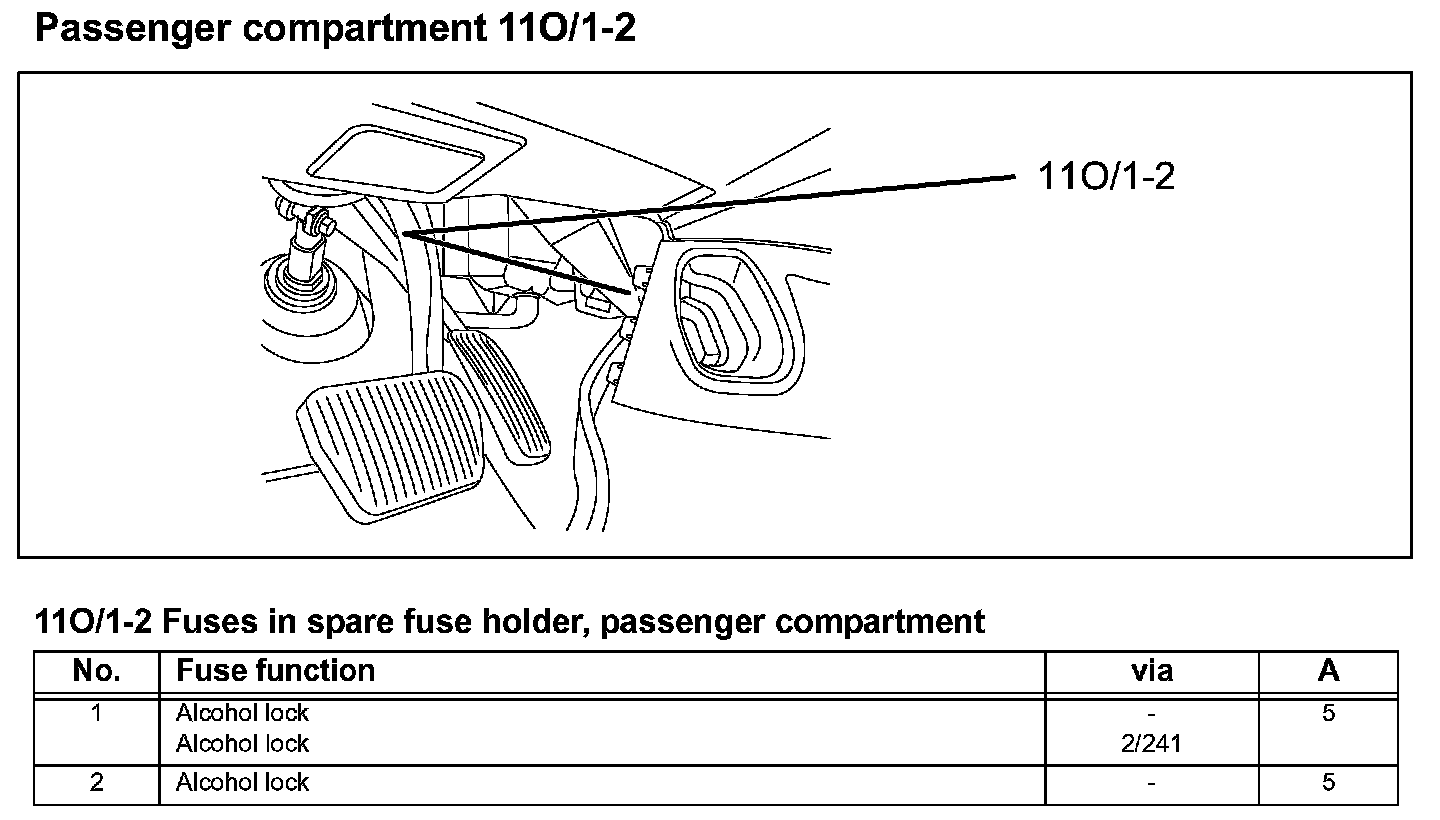

Passenger Compartment 11O/1-2:
