Passenger Compartment 11C

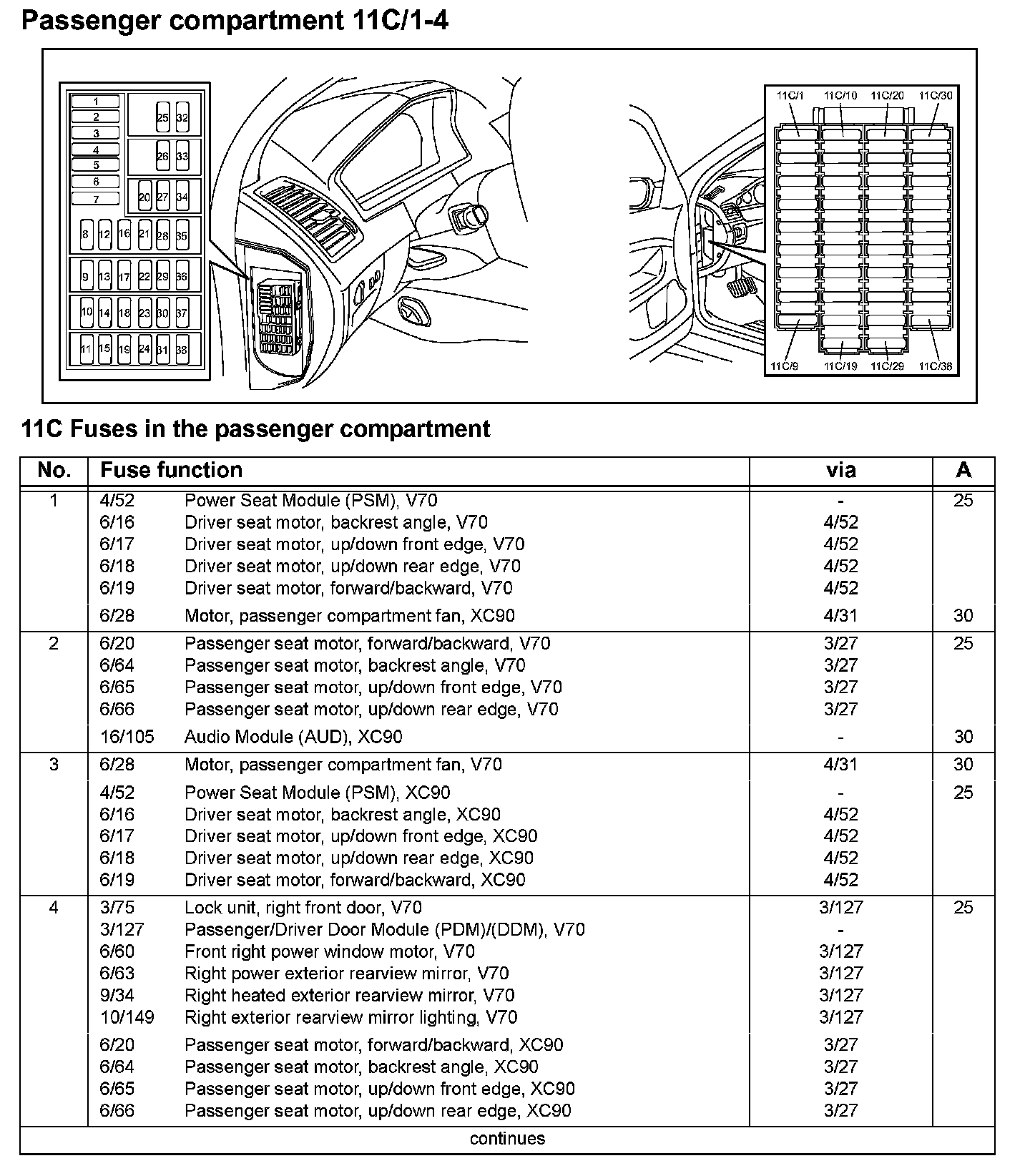

Passenger Compartment 11C/1-4:

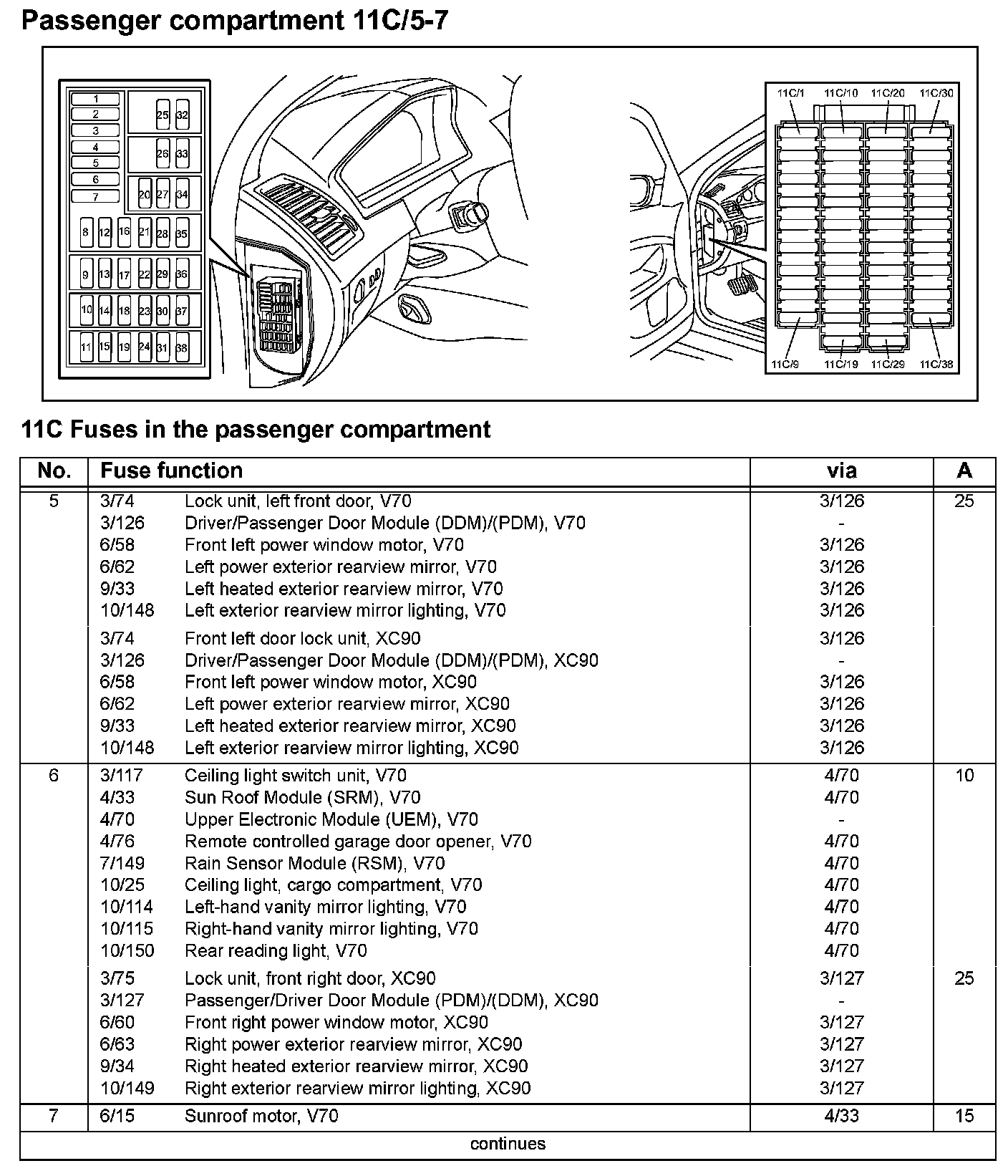

Passenger Compartment 11C/5-7:

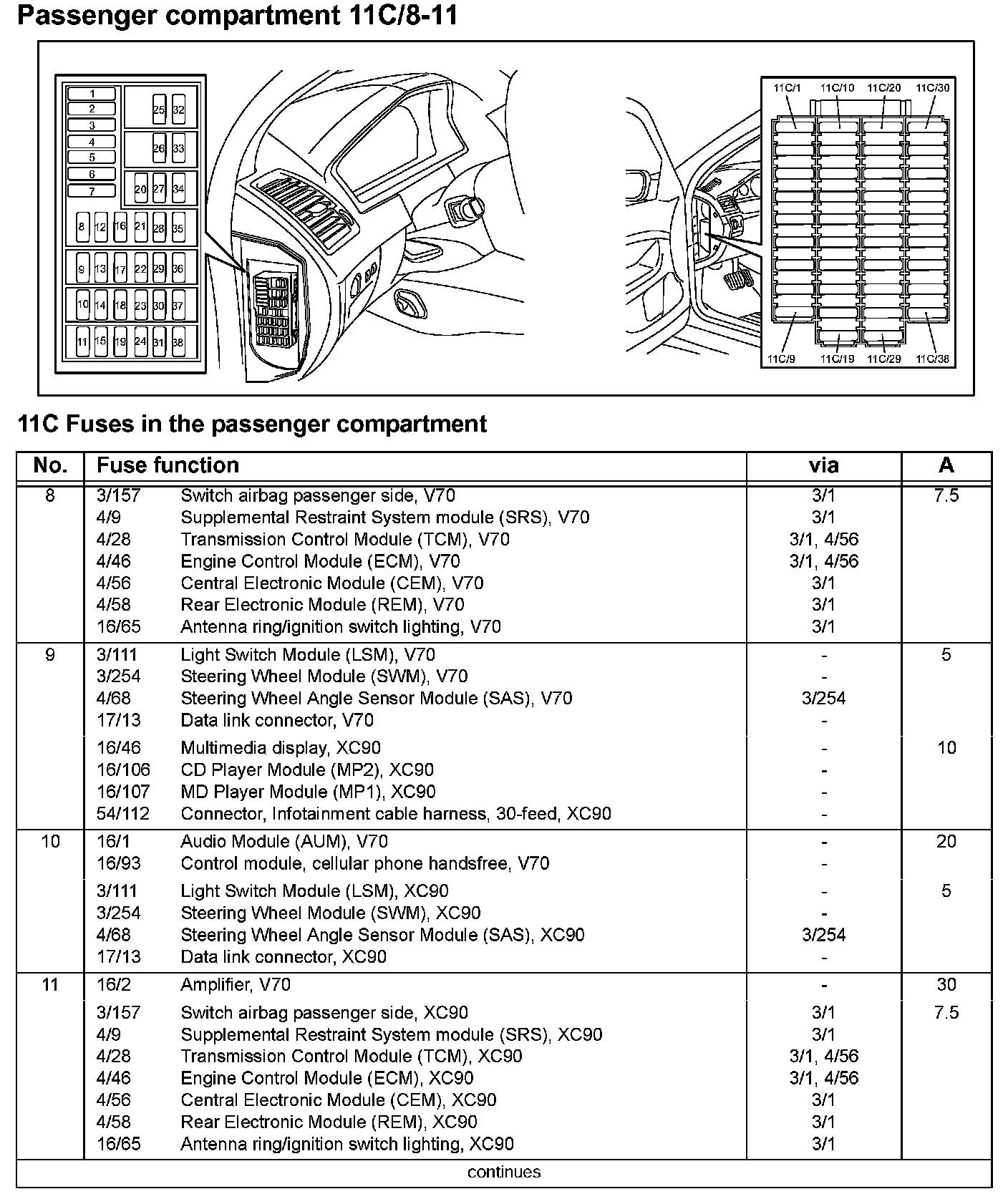

Passenger Compartment 11C/8-11:

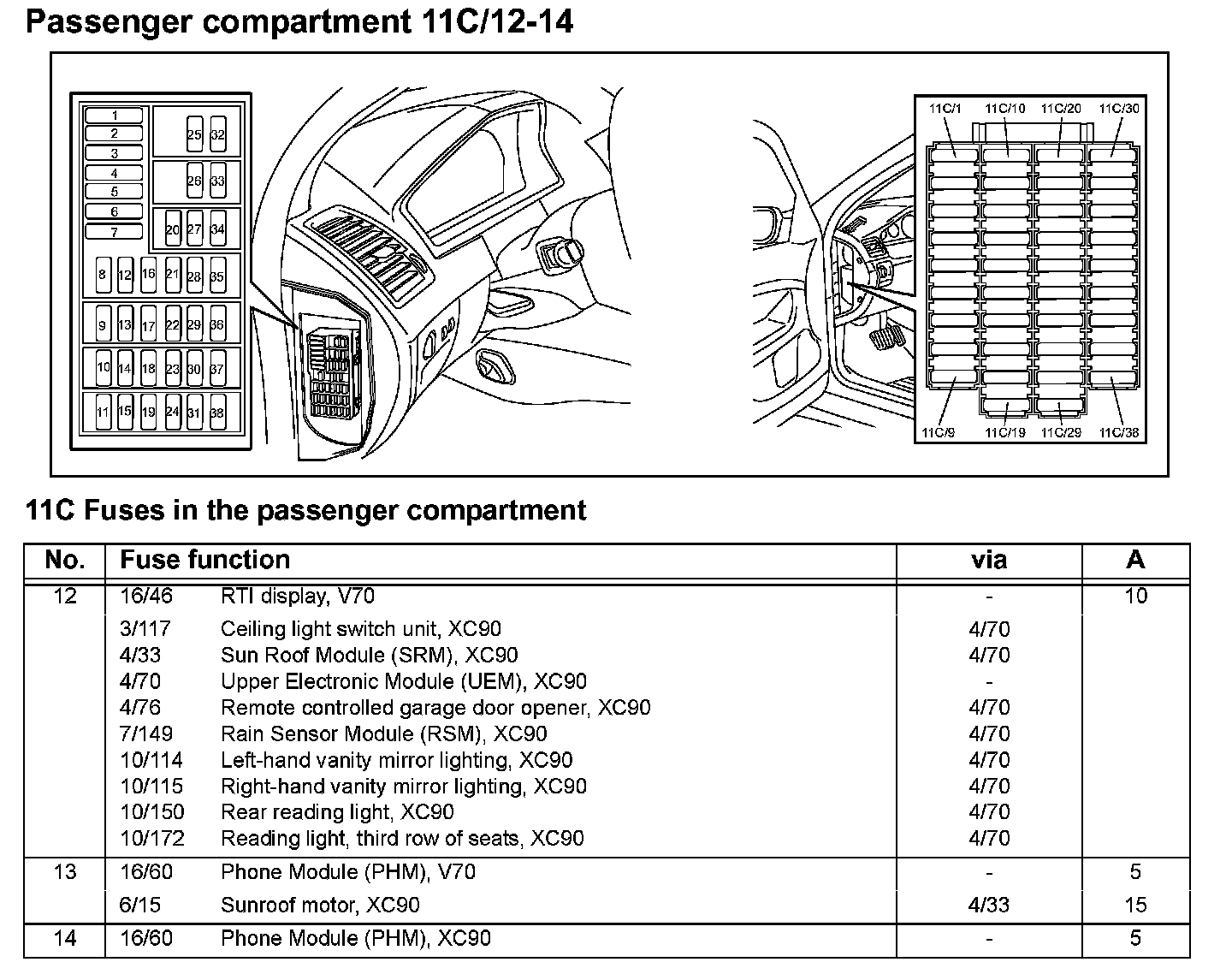

Passenger Compartment 11C/12-14:
