Home >> Volvo >> 2007 >> V70R L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Changes Introduced Up to and Including April 2006 >> Cargo Compartment 11M

Cargo Compartment 11M

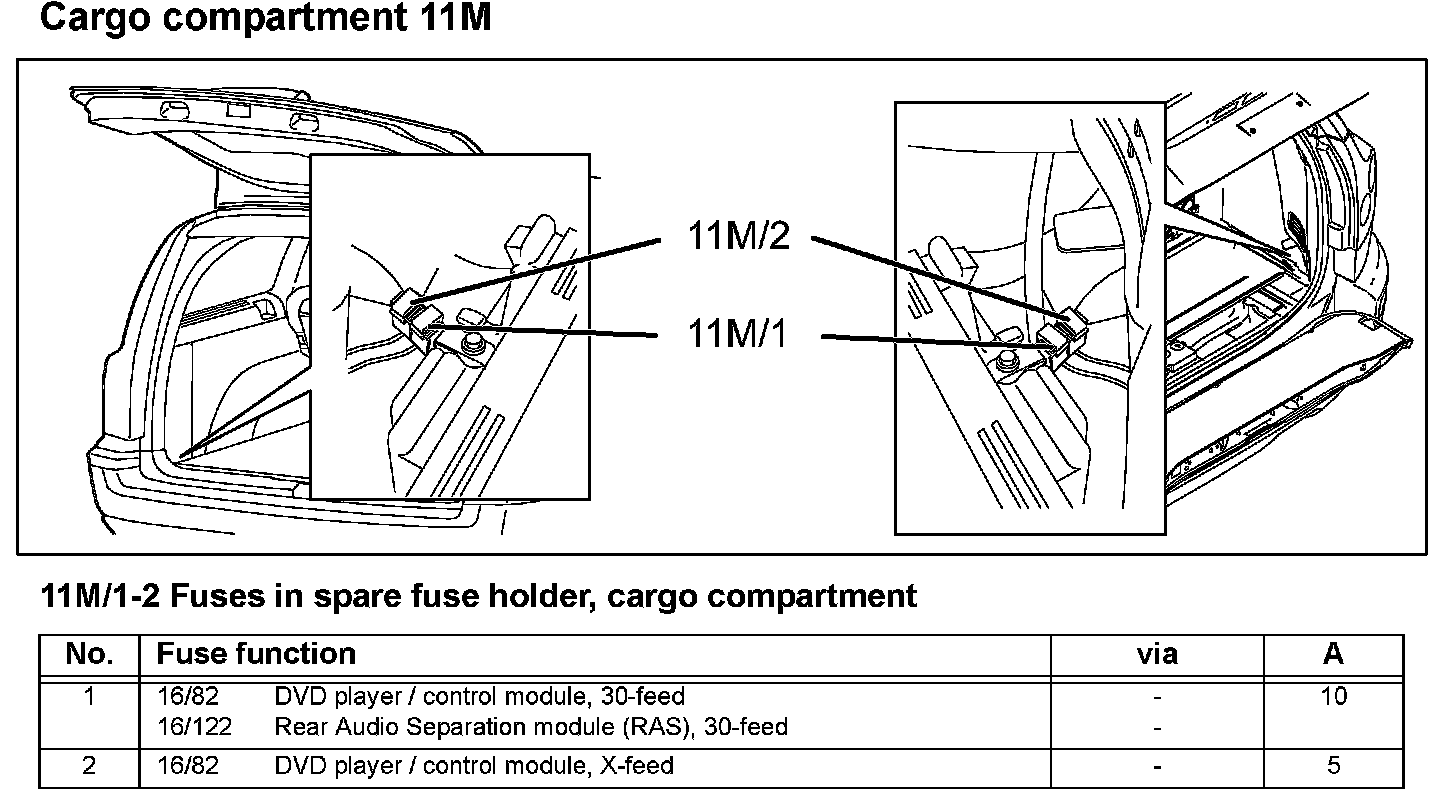

Cargo compartment 11M (2006 Late Version):
