Cargo Compartment 11E

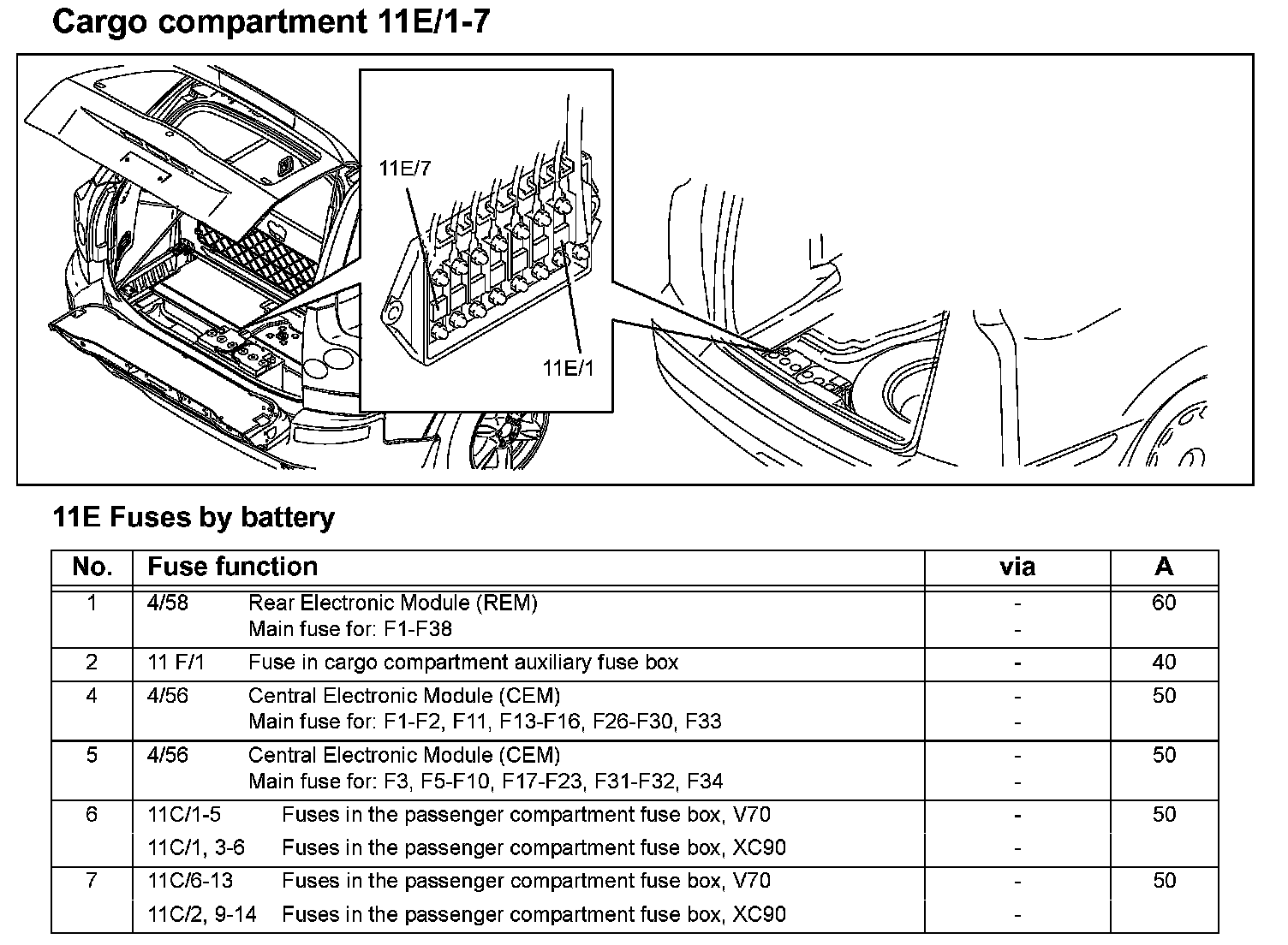

Cargo Compartment 11E/1-7:

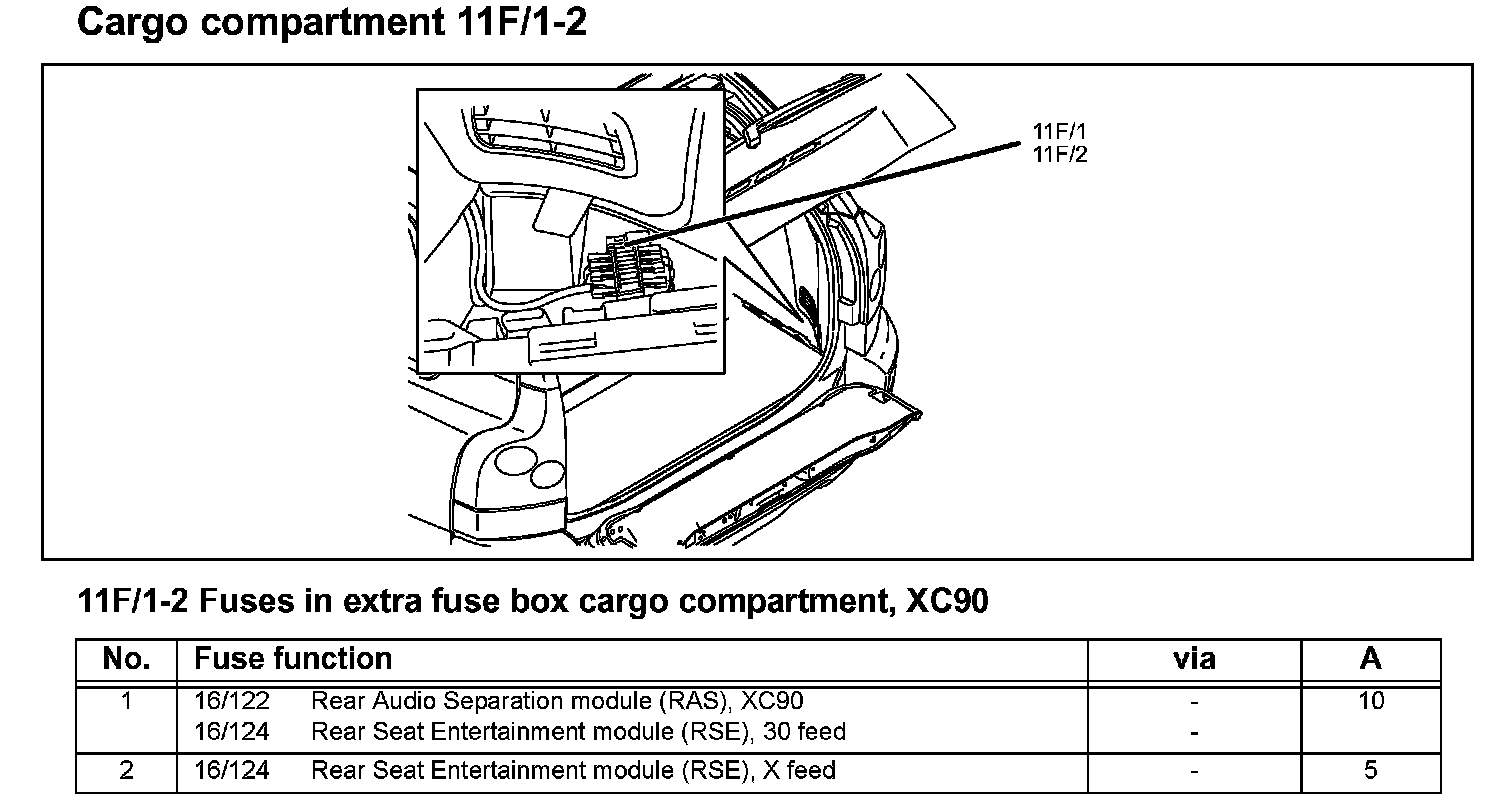

Cargo Compartment 11F/1-2:

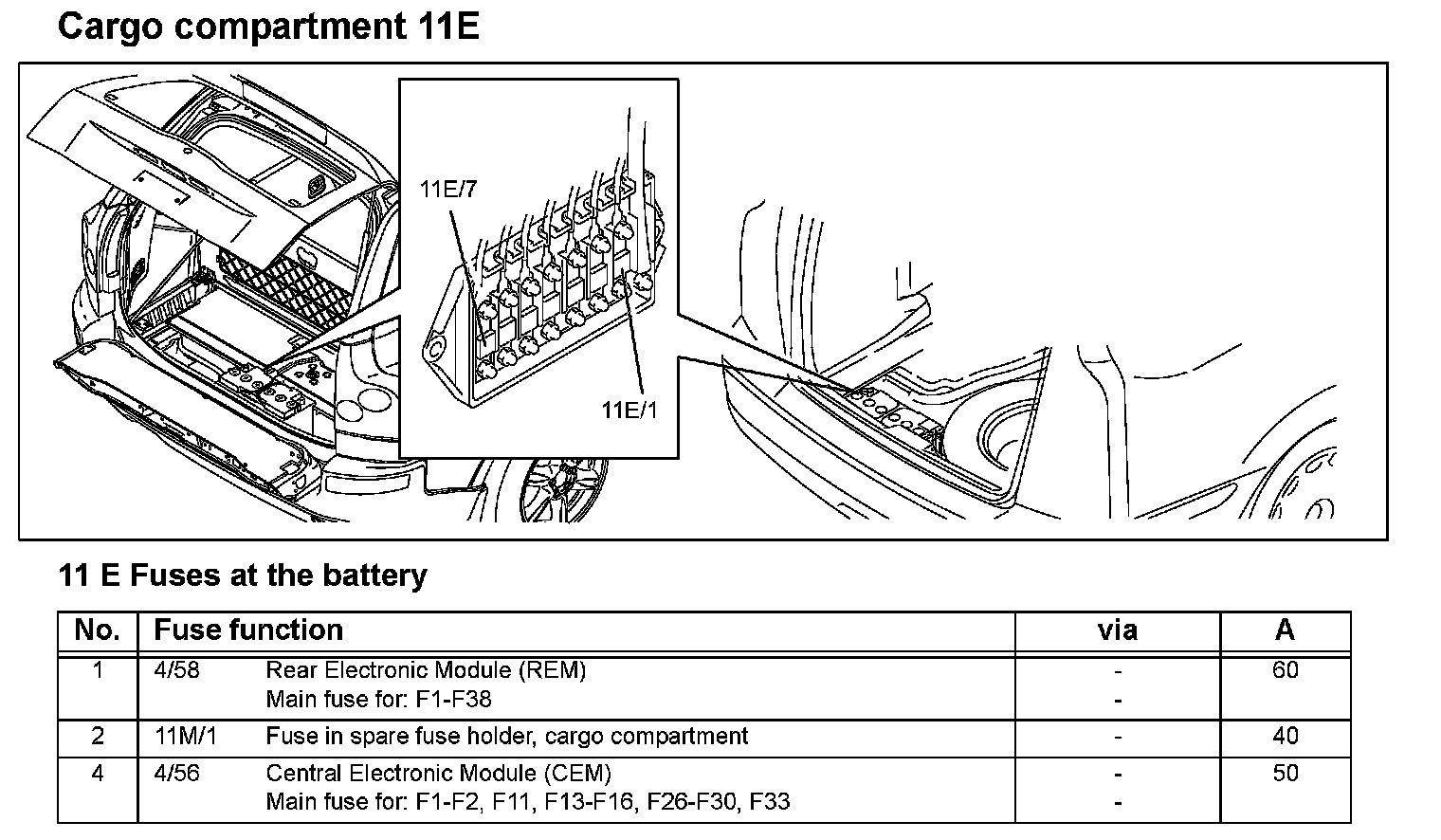

Cargo Compartment 11E (2006 Late Version):
