Home >> Volvo >> 2007 >> V70R L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Changes Introduced Up to and Including April 2006 >> Cargo Compartment

Cargo Compartment

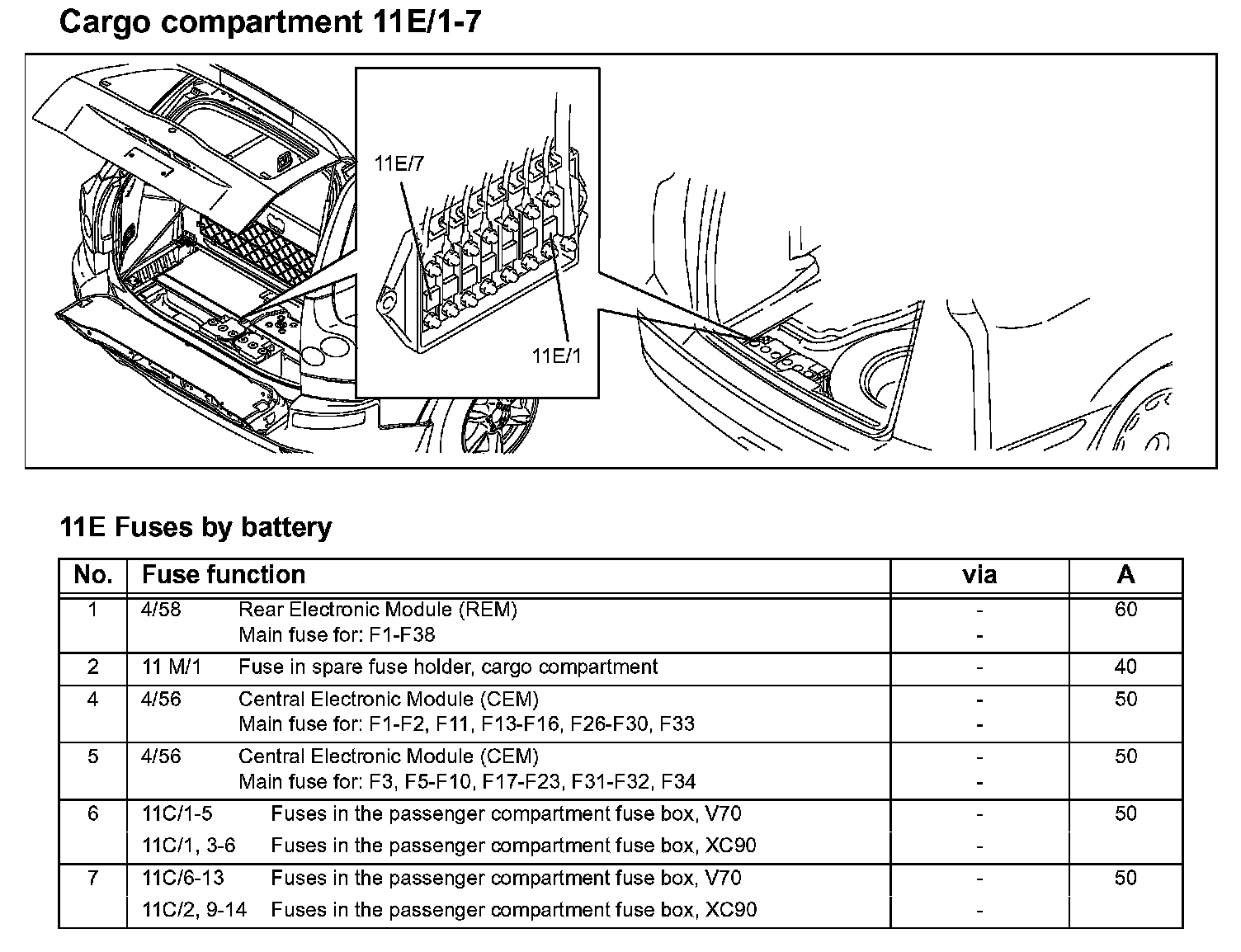

Cargo Compartment 11E/1-7:

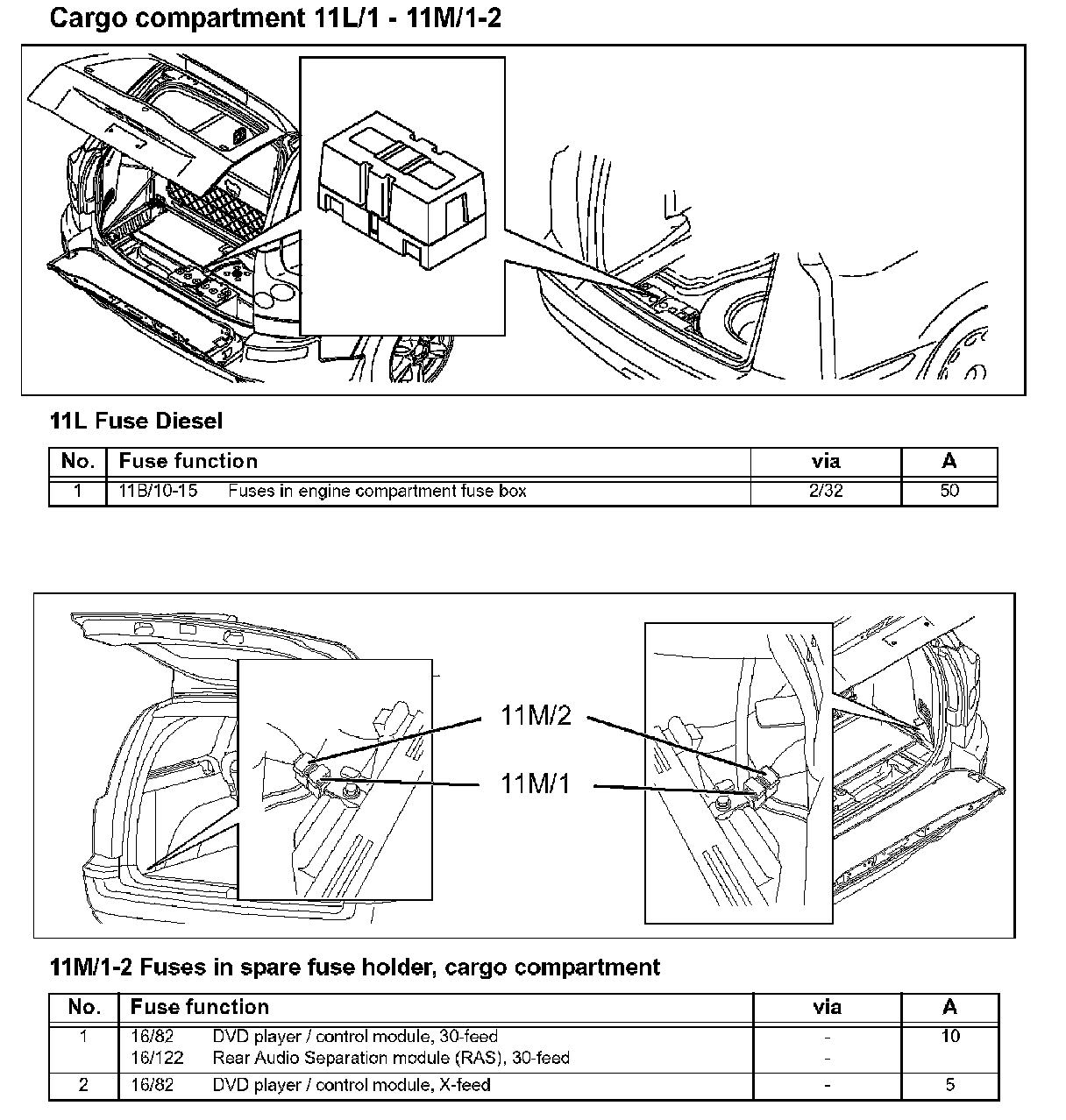

Cargo Compartment 11L/1-11M/1-2:
