Entertainment System Control Module

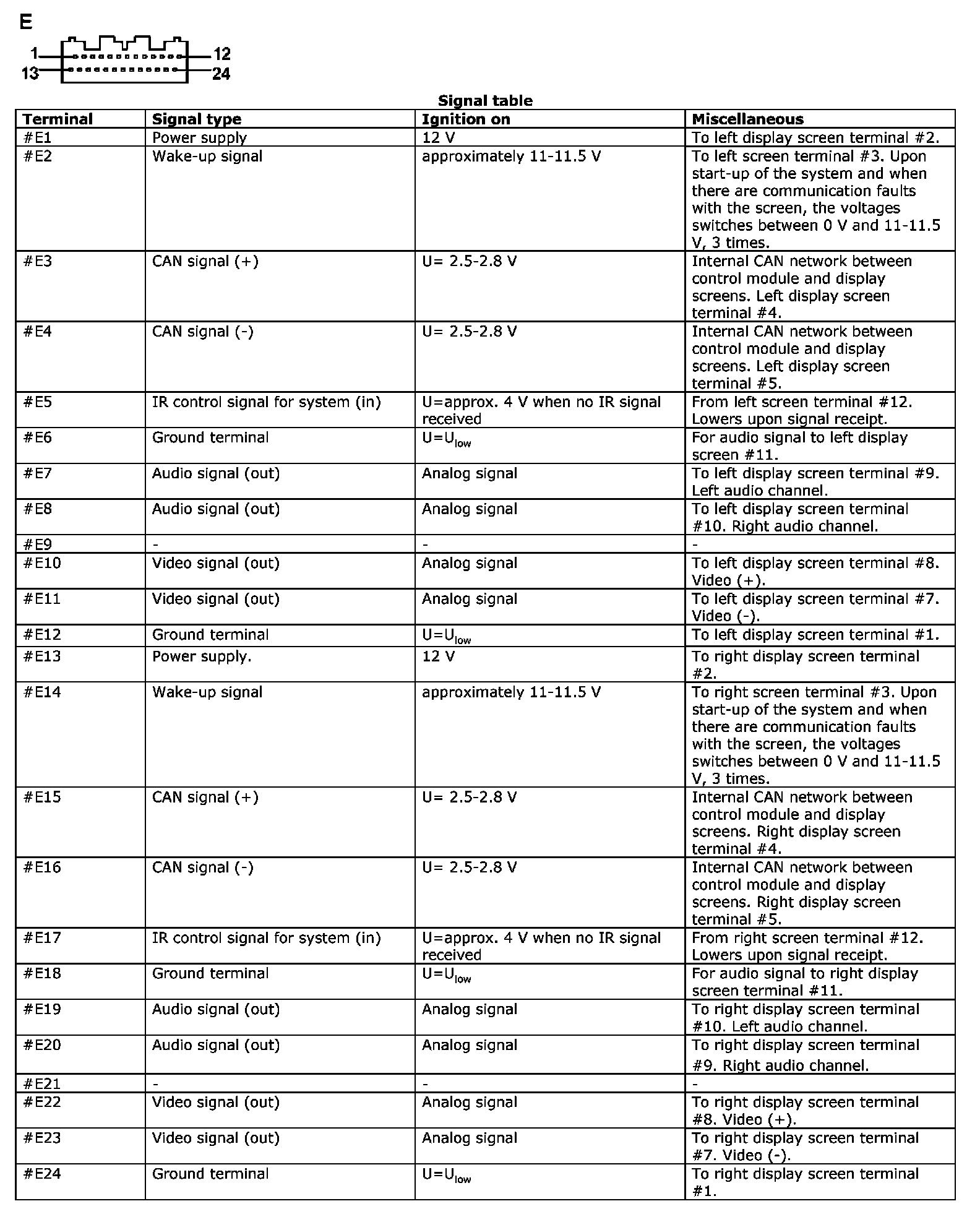

Signal specification, rear seat entertainment module (RSE), generation 4.1

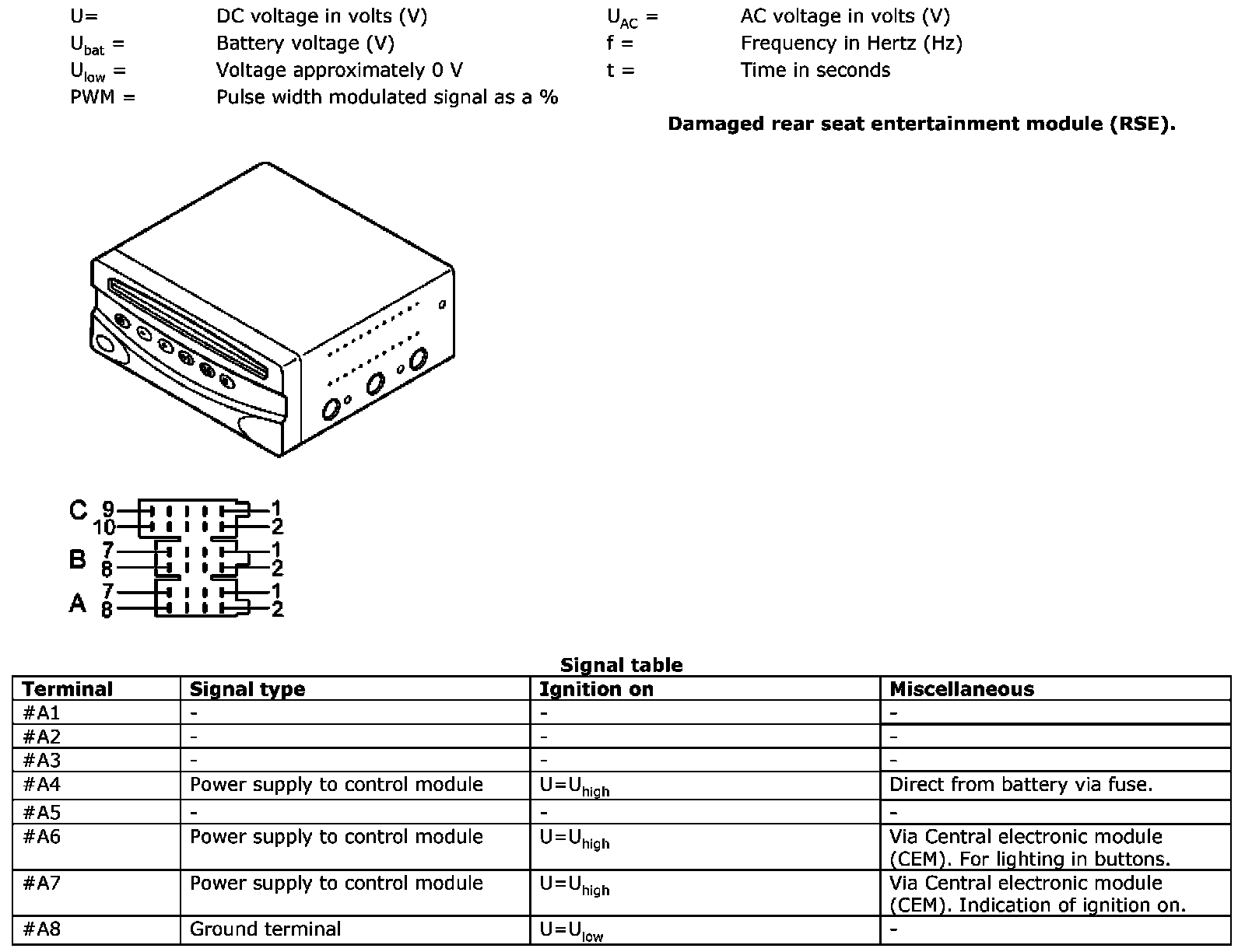

Signal specification, rear seat entertainment module
