Changes Introduced Up to and Including April 2006

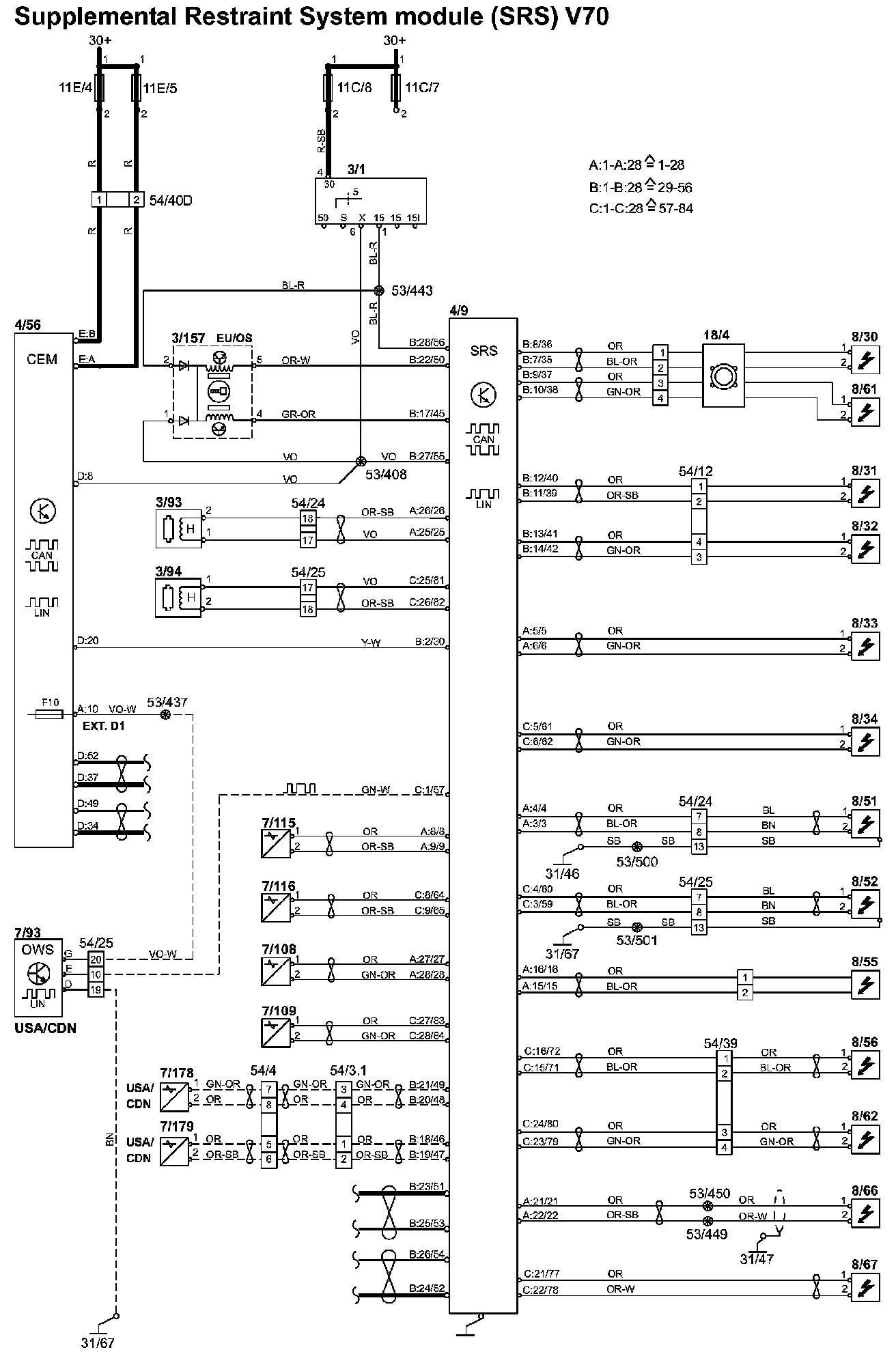

Supplemental Restraint System Module (SRS) V70

Supplemental Restraint System Module (SRS):

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
