Home >> Volvo >> 2007 >> V70R L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Changes Introduced Up to and Including April 2007 >> Automatic Transmission AW55-51SN/AW51AWD

Automatic Transmission AW55-51SN/AW51AWD



Automatic Transmission AW55-51SN/AW51AWD

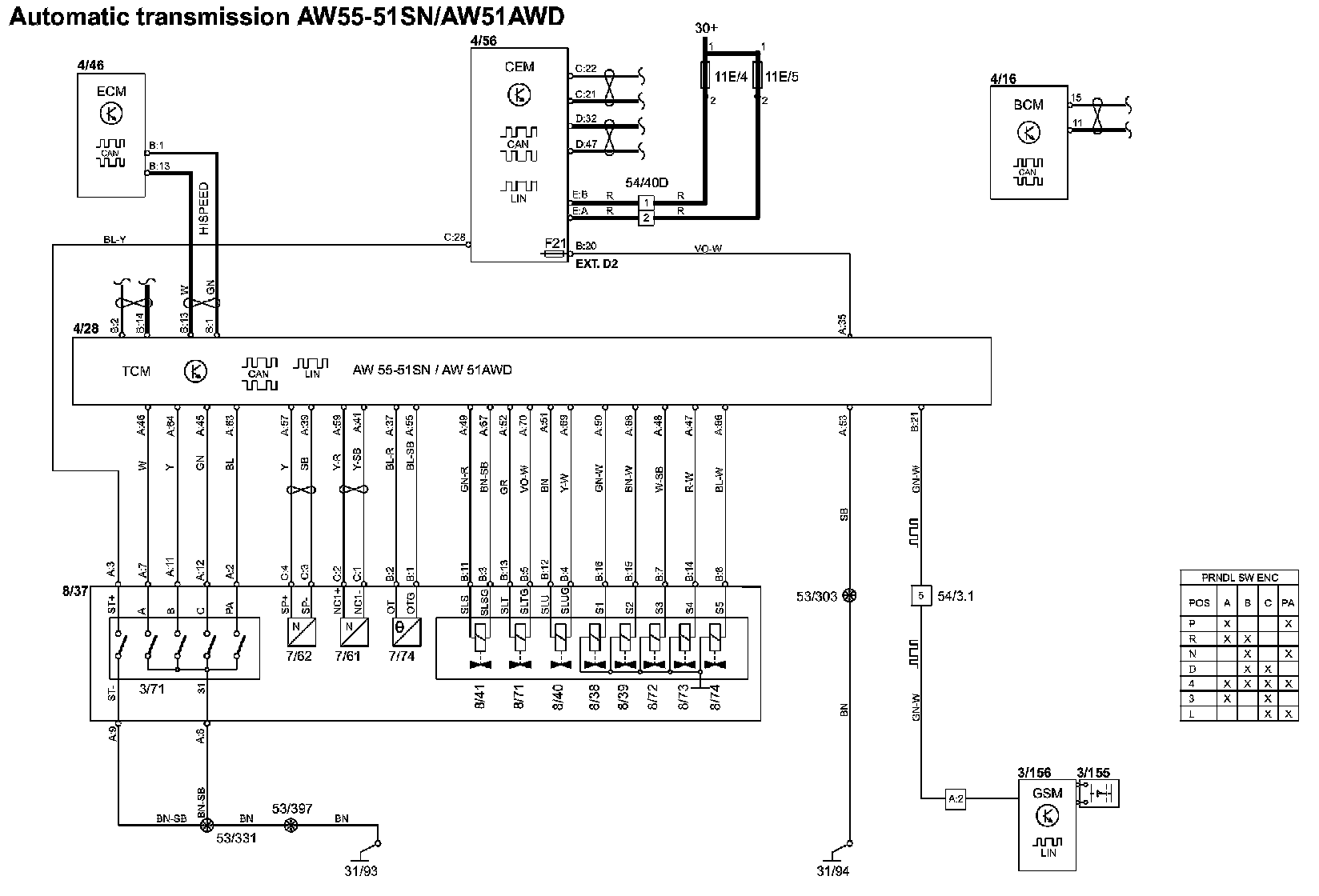

Automatic Transmission AW55-51SN/AW51AWD:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
