Home >> Volvo >> 2007 >> V70R L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Changes Introduced Up to and Including April 2006 >> Automatic Transmission AW55-50/51SN/AW50/51AWD

Automatic Transmission AW55-50/51SN/AW50/51AWD

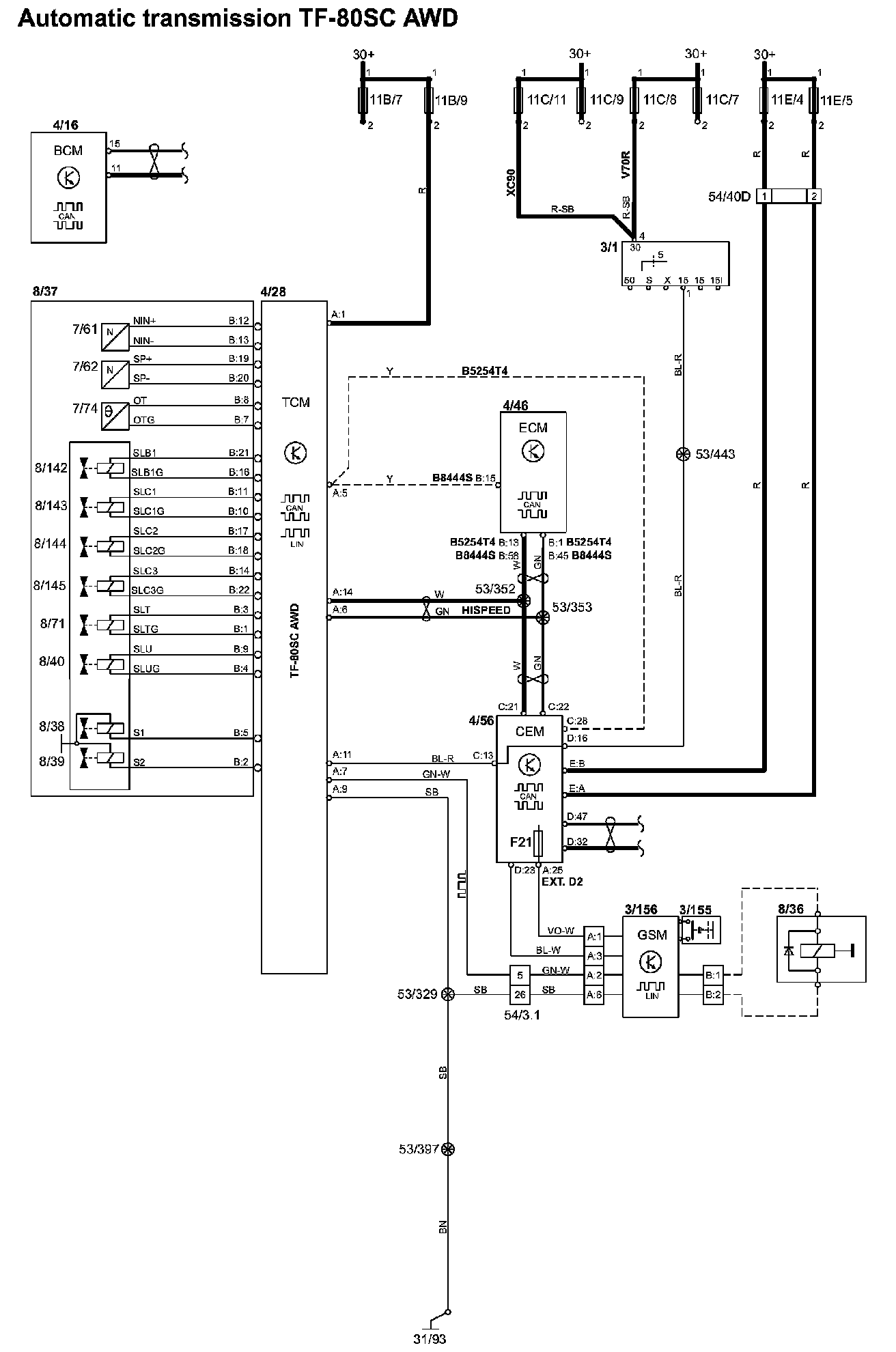

Automatic Transmission TF-80SC AWD


Automatic Transmission:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
